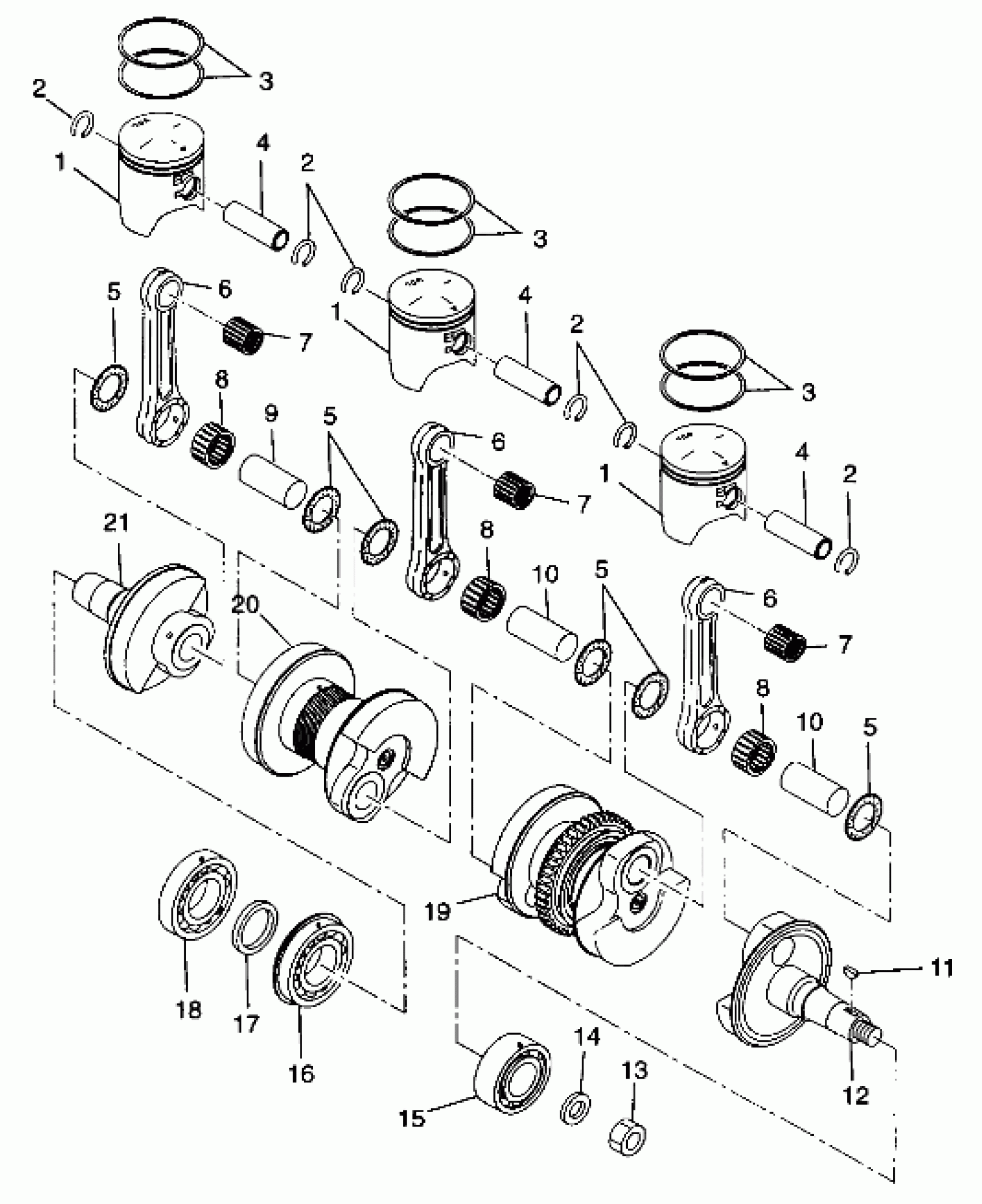

Polaris 700 XCR - 099AB7BS PISTON and CRANKSHAFT - 099AB7BS (4948424842c010) Diagram

#

Description
Price

1

PISTON

3086130

Unavailable

1

PISTON

3086130

Unavailable

1

PISTON

3086130

Unavailable

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

3

RING,PISTON

3085756

Unavailable

3

RING,PISTON

3085756

Unavailable

3

RING,PISTON

3085756

Unavailable

4

PIN, PISTON

3085483

Unavailable

4

PIN, PISTON

3085483

Unavailable

4

PIN, PISTON

3085483

Unavailable

5

Spacer

3083804

$19.99

5

Spacer

3083804

$19.99

5

Spacer

3083804

$19.99

5

Spacer

3083804

$19.99

6

ROD,CONNECTING

3085790

Unavailable

6

ROD,CONNECTING

3085790

Unavailable

6

ROD,CONNECTING

3085790

Unavailable

7

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

7

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

7

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

8

BEARING,LARGE END

3085752

Unavailable

8

BEARING,LARGE END

3085752

Unavailable

8

BEARING,LARGE END

3085752

Unavailable

9

PIN,CRANK #2

3085259

Unavailable

10

PIN,CRANK #1

3085258

Unavailable

10

PIN,CRANK #1

3085258

Unavailable

11

KEY Substituted by 3081543

3080130

Unavailable

12

CRANKSHAFT #1

3085251

$329.99

12

CRANKSHAFT ASM. (Incl. 5,6,8-10,12,15-21)

3086127

$2,019.99

13

NUT

3083093

$19.99

14

Washer

3084457

Unavailable

15

BEARING, BALL

3085260

Unavailable

16

BEARING,BALL

3085753

$64.99

17

Spacer

3085261

Unavailable

18

BEARING,BALL

3085754

$64.99

19

CRANKSHAFT,CTR. (Incl. 5,6,8-10,19,20)

3085789

Unavailable

19

CRANKSHAFT,MAG (Incl. 10)

3086128

$744.99

20

CRANKSHAFT,PTO Substituted by 3085254 (Incl. 9)

3086129

Unavailable

21

Crankshaft 3

3085751

$319.99
