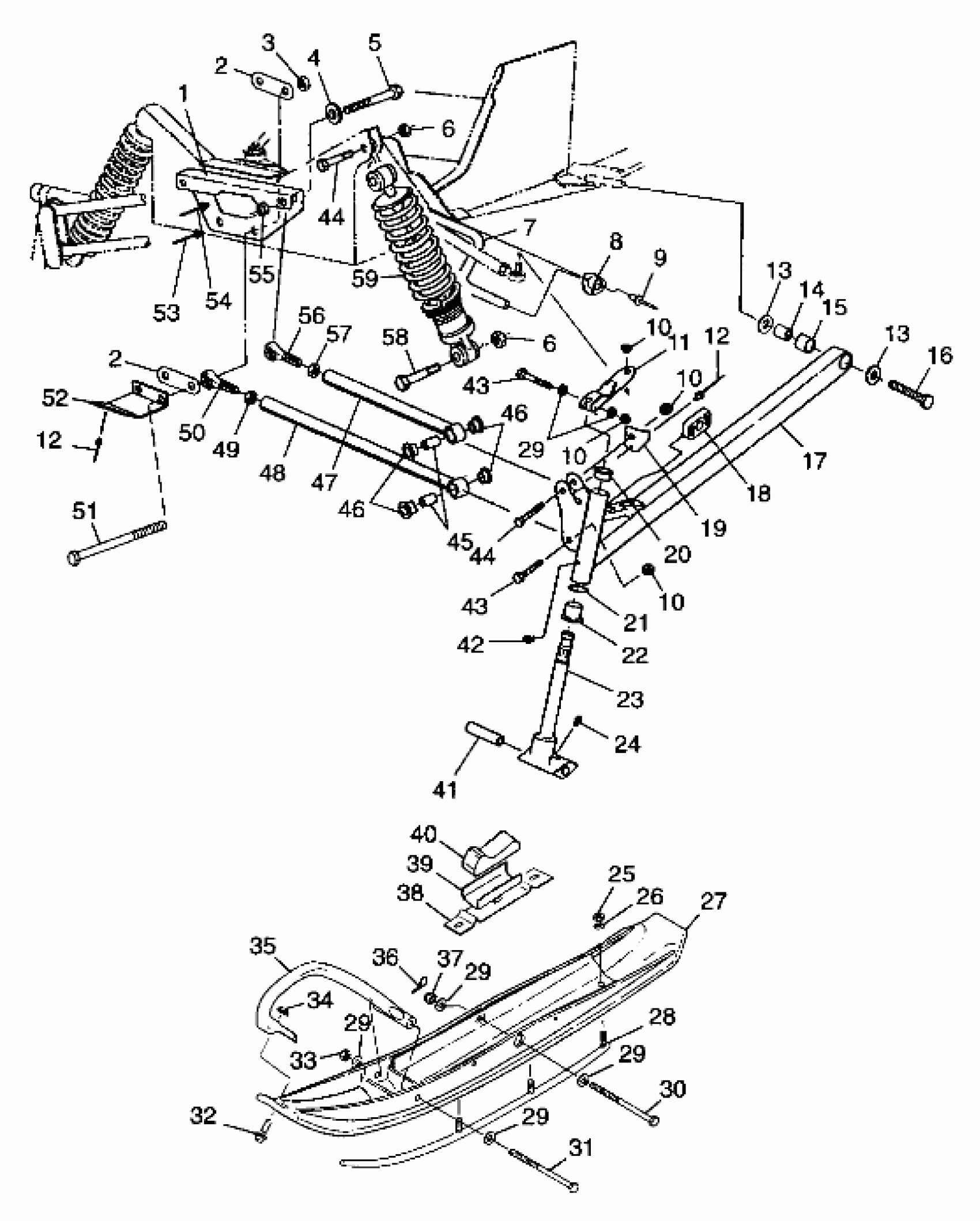

Polaris 700 XCR - 099AB7BS FRONT SUSPENSION and SKI - 099AB7BS (4948424842b003) Diagram

#

Description
Price

1

BRACE,FR.BULKH.,BLK Substituted by 5242112-067

5241641-067

Unavailable

2

STRAP,SPACER BOTTOM

5211345

$12.99

2

STRAP,SPACER BOTTOM

5211345

$12.99

3

NUT FLEX,(10)

7542703

Unavailable

4

WASHER THRUST(10)

7558702

$1.59

5

BOLT(10)

7512551

Unavailable

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

7

BAR,SWAY,BLK,

5224742-067

Unavailable

8

BUSHING,SWAY BAR

5432038

$19.99

9

RIVET,(50)

7621477

$1.19

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

ARM,LH,STRG,BLK.

5241660-067

Unavailable

11

ARM,RH,STRG,BLK.

5241661-067

Unavailable

12

RIVET(50) Substituted by 7661130

7661643

Unavailable

12

RIVET(50) Substituted by 7661130

7661643

Unavailable

13

WASHER(10)

7555721

$1.49

13

WASHER(10)

7555721

$1.49

14

TUBE, BUSHING

5010310

$9.70

15

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

16

BOLT(10)

7512557

$7.60

17

TRAILING ARM,LH,KIT (Incl. 14,15)

2201470

Unavailable

17

TRAILING ARM RH,KIT (Incl. 14,15)

2201471

Unavailable

18

SLIDE,SWAYBAR,5/8

5432561

$24.27

19

STOP,LH,STRG,BLK

5241777-067

$15.08

19

STOP,RH,STRG,BLK.

5241778-067

$18.23

20

BUSHING-FLANGE

3573909

$2.39

21

WASHER SPECIAL(10)

7556509

$1.59

22

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

23

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

24

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

25

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

26

WASHER(10)

7555806

$1.49

27

COMP.SKIBLANK,W/RK SDL,BLK (Incl. 31-35,38)

1820610-070

Unavailable

28

SKAG,CARBIDE 6",COMP PR (Pair)

2871687

$89.99

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

29

WSHR-.813X.406X.105-Y

7555832

$2.39

30

SCREW,(10)

7512596

$19.99

31

BOLT(10)

7515514

$7.19

32

BOLT(10)

7515307

$3.99

33

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

34

NUT LOCK(10)

7542321

$1.49

35

TOE,PLASTIC SKI,BLK Substituted by 5434165-070

5432209-070

$40.46

36

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

37

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

38

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

39

RETAINER-SKI RUBBER Substituted by 5243824

5243127

$27.78

40

STOP,RUBBER

5411094

Unavailable

41

BUSHING,PIVOT,(10)

5010158

$19.99

42

ZERK,FITTING,THREADED(10)

7080433

$1.49

43

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

43

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

44

BOLT(10)

7515415

$1.49

44

BOLT(10)

7515415

$1.49

45

BUSHING-RADIUS ROD,(10)

5010127

$7.99

46

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

46

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

47

ROD,RAD,UP. Substituted by 1822375-067

1822457-067

Unavailable

48

ROD,RAD,LOW. Substituted by 1822377-067

1822458-067

Unavailable

49

NUT-JAM(10)

7542711

$2.39

50

ROD END,1/2 LINED Substituted by 7061071

7061011

$48.56

51

BOLT(10)

7512678

$19.99

52

SUPPORT,PANBRAKE,LOW.

5240699-067

Unavailable

53

RIVET,INTERLOCK,B(50)

7661638

$1.49

54

RIVET,3/16X.402(50)

7621432

$1.49

55

NUT, LOCK,(10)

7542503

$10.39

56

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

57

NUT JAM(10)

7542520

$2.39

58

BOLT Substituted by 7515491

7515433

$1.59

59

SPRING,COMPRESSION

7041575-067

$52.60

59

Fox Shock, IFS (See Footnote) (See Fox Shock - IFS Pg. C1 for Details)

-------

Unavailable
