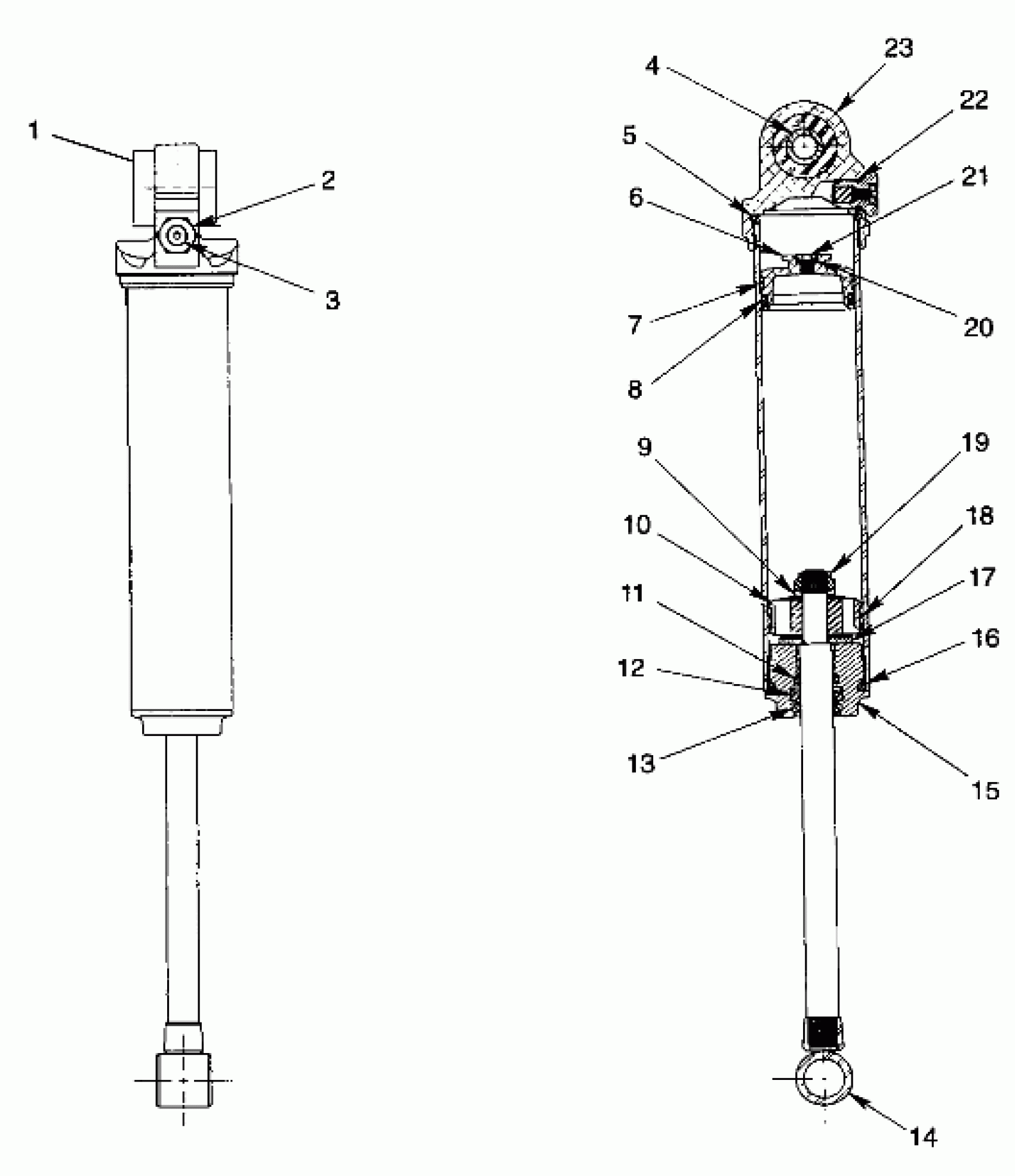

Polaris 700 XCR - 099AB7BS FOX SHOCK - GAS, REAR TRACK - 099AB7BS (4948424842c002) Diagram

#

Description
Price

-

SHOCK,RR.TRACK,X10,FOX (Incl. 1-23)

7041695

Unavailable

1

BUSHING,SHAFT END Substituted by 5431540

5432040

$24.99

2

VALVE ASM,AIR

1500014

$69.99

3

Screw

1500019

$6.39

4

BUSHING, 1.40

5020657

$15.99

5

O-RING,.103W-1.549ID

1500108

$10.99

6

PISTON

1500011

$59.99

7

RING,PISTON,FLOATING,FOX

1500006

$19.99

8

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

9

BUSHING,BACKUP

1500015

$6.76

10

PISTON

1500149

$23.97

11

O-RING INNER (10)

1500021

$10.99

12

WIPER INNER Substituted by 1500266

1500025

$24.27

13

WIPER,CLR,OUTER

1500024

Unavailable

14

Eyelet

1500302

$49.21

15

BRG.ASM,W/BLD,SS. Substituted by 1500145

1500151

Unavailable

16

O-RING,(10).103W-1.299ID

1500020

$10.63

17

PLATE,TOP OUT

1500017

$20.22

18

DAMPER,PISTONRING,FOX

1500002

$31.99

19

NUT,LOCK

1500016

$12.79

20

O-RING,DRUM OUTER

1500022

Unavailable

21

Screw

1500018

$5.56

22

O-RING,OUTER

1500023

$2.84

23

CAP, BODY

1500073

Unavailable
