Description

Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

Spacer

5020913

Unavailable

5

Clutch, Driven, Adjustable (See Footnote) (See Driven Clutch Pg. C4, Ref. 16)

-------

Unavailable

6

BELT,DRIVE(5)

3211075

$109.99

7

NUT,NYLOC,(10)

7542344

$3.99

8

BUSHING(10)

7555864

Unavailable

9

WASHER SPECIAL(10)

7556509

Unavailable

10

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

11

GASKET,JACKSHAFT,BLK.

5811095

$2.41

12

KEY(10)

7721116

$12.94

13

BEARING

3514525

$31.99

14

FLANGETTE

5222751

$16.44

15

SPACER,BRG,JACKSHAFT

5131443

$40.79

16

BOLT,CARRIAGE(10)

7515383

Unavailable

17

JACKSHAFT ASM,LONG,15T Substituted by 1332228 (Incl. 13,18)

1332208

$164.75

18

RING, RETAINING(10)

7710422

$3.99

19

DISC ASM,BRAKE,SLOTTED,SNO Substituted by 1910403

1910276

Unavailable

20

SLEEVE, SEAL

5020588

$23.99

20

SLEEVE, SEAL

5020588

$23.99

21

O RING,(10)

5410613

$1.99

21

O RING,(10)

5410613

$1.99

22

BOLT(10)

7515428

$4.79

22

BOLT(10)

7515428

$4.79

23

DIPSTICK Substituted by 1332143

5431419

Unavailable

24

O-RING

5410675

$1.60

25

NUT(10)

7542423

$3.99

25

NUT(10)

7542423

$3.99

26

DRIVESHAFT,4DR,W/BEARING Substituted by 1590282 (Incl. 32,33,34)

1590270

Unavailable

27

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

28

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

30

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

31

FLANGETTE Substituted by 5243529

5241178

$13.75

32

BUSHING METAL SPEEDO

3280019

$11.99

33

BEARING,LUBE. Substituted by 3514525

3514526

$31.75

34

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

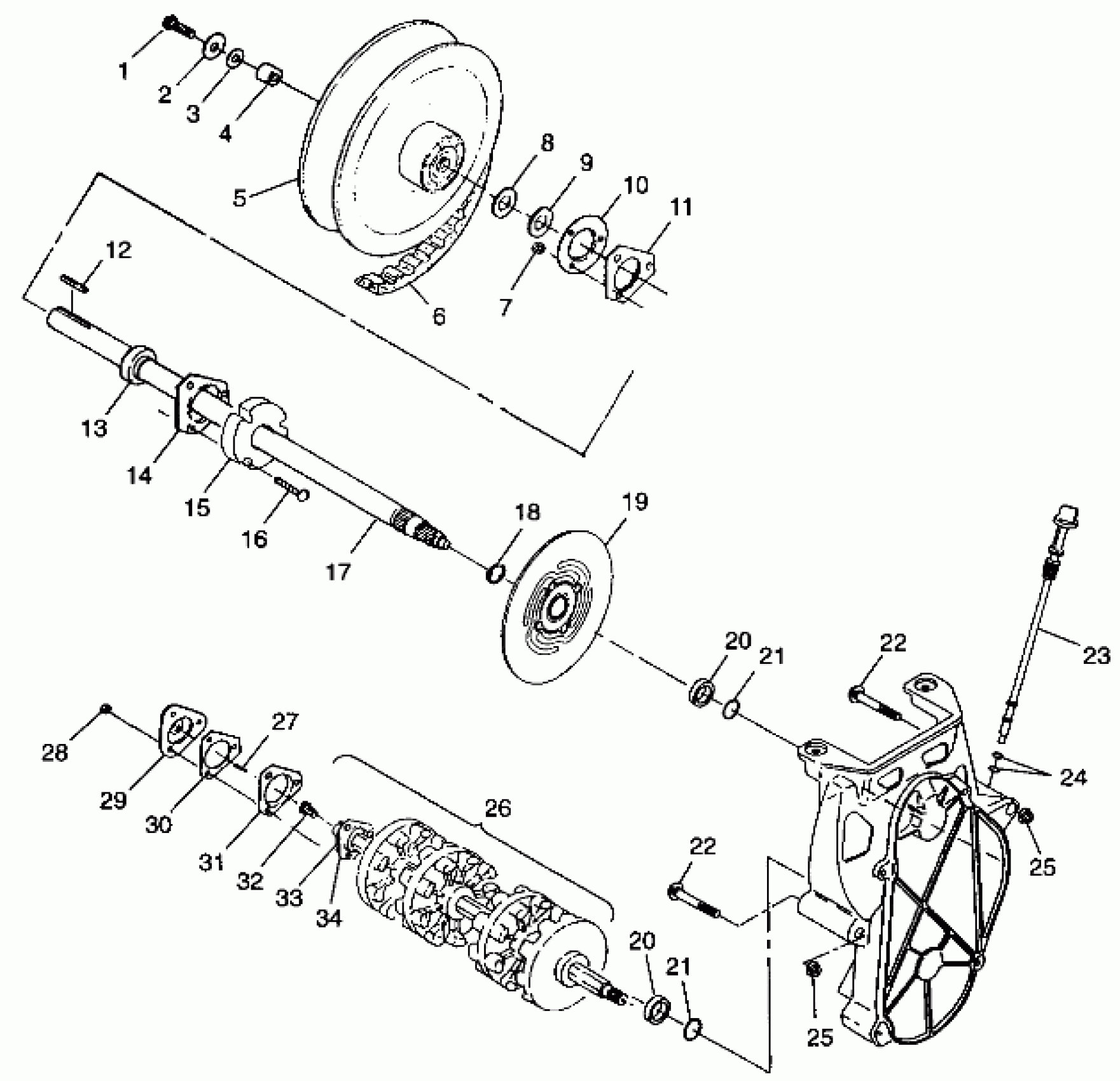

Polaris 700 XCR - 099AB7BS DRIVE TRAIN - 099AB7BS (4948424842b008) Diagram

BOLT(10)

WASHER FLAT(10)

WASHER(10)

Spacer

Clutch, Driven, Adjustable (See Footnote) (See Driven Clutch Pg. C4, Ref. 16)

BELT,DRIVE(5)

NUT,NYLOC,(10)

BUSHING(10)

WASHER SPECIAL(10)

FLANGE RD,RELUBE W/ZERK

GASKET,JACKSHAFT,BLK.

KEY(10)

BEARING

FLANGETTE

SPACER,BRG,JACKSHAFT

BOLT,CARRIAGE(10)

JACKSHAFT ASM,LONG,15T Substituted by 1332228 (Incl. 13,18)

RING, RETAINING(10)

DISC ASM,BRAKE,SLOTTED,SNO Substituted by 1910403

SLEEVE, SEAL

SLEEVE, SEAL

O RING,(10)

O RING,(10)

BOLT(10)

BOLT(10)

DIPSTICK Substituted by 1332143

O-RING

NUT(10)

NUT(10)

DRIVESHAFT,4DR,W/BEARING Substituted by 1590282 (Incl. 32,33,34)

SQ. KEY SPEEDOMETER,(10)

NUT-5/16-18 NYLOK-Y

ADAPTER,DRIVE,W/ZERK

GASKET,DRIVE ADAPTOR,(10)

FLANGETTE Substituted by 5243529

BUSHING METAL SPEEDO

BEARING,LUBE. Substituted by 3514525

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
