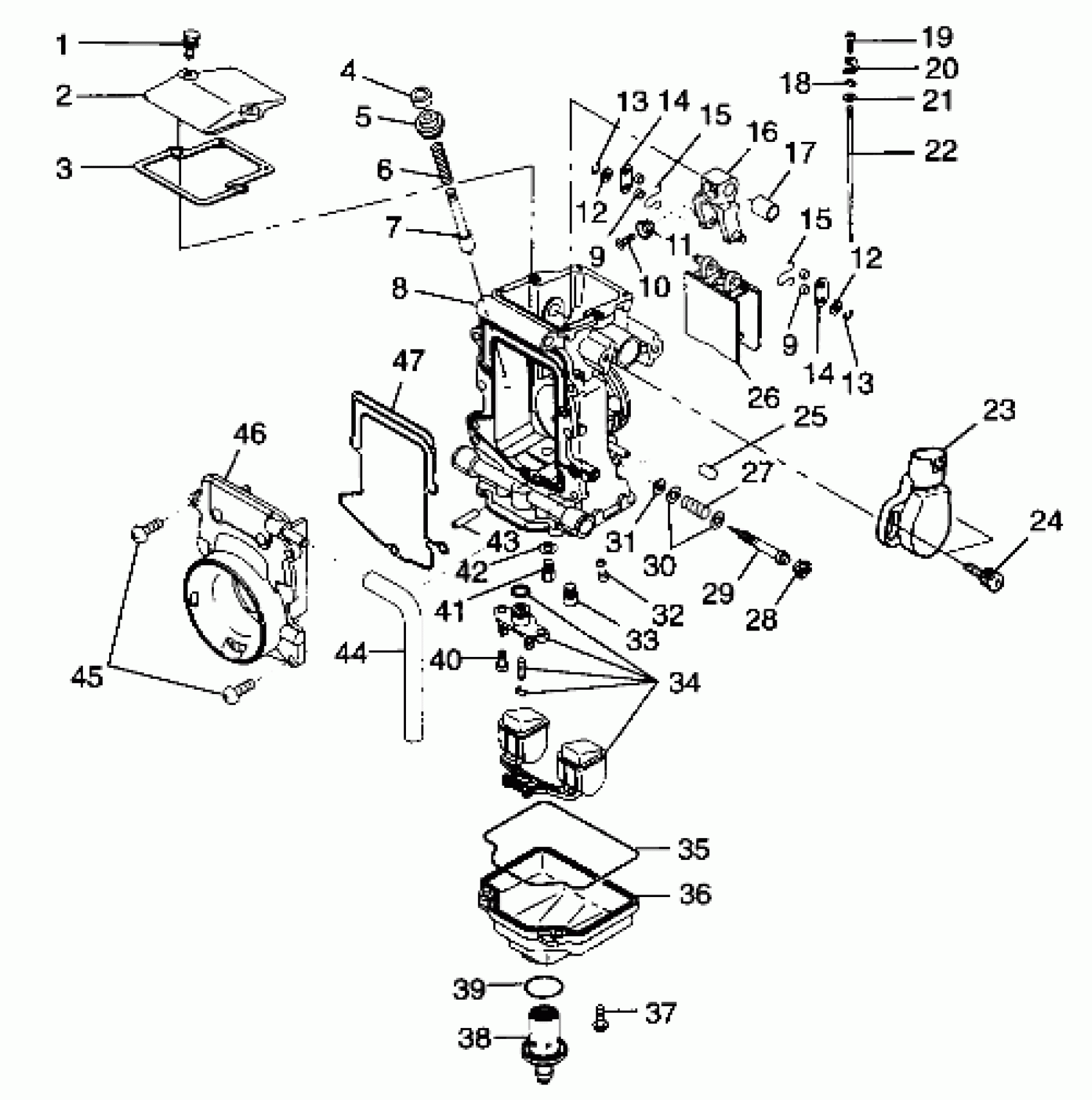

Polaris 700 XCR - 099AB7BS CARBURETOR - 099AB7BS (4948424842d002) Diagram

#

Description
Price

1

Screw

3130951

$3.99

2

CAP-TOP

3130976

$50.99

3

Gasket

3130871

$20.22

4

CAP,STARTER,(RUBBER)

3130831

$7.27

5

HOLDER,STARTER GUIDE

3130830

$32.37

6

SPRING,STARTER

3130829

$12.94

7

PLUNGER ASM./258

3130828

$32.37

8

ASM., MIXING BODY

-------

Unavailable

9

Ring

3130845

$8.89

9

Ring

3130845

$8.89

10

SCREW (PTO Side)

3130854

$3.19

10

SCREW (Center and MAG Side)

3130850

$4.79

11

RING (Center and MAG Side)

3130848

$32.37

12

WASHER Substituted by 3130846

3130981

Unavailable

12

WASHER Substituted by 3130846

3130981

Unavailable

13

E-Ring

3130847

$8.89

13

E-Ring

3130847

$8.89

14

Plate

3130857

$7.27

14

Plate

3130857

$7.27

15

Clip

3130856

$8.79

15

Clip

3130856

$8.79

16

LEVER ASM. (Center Side)

3130855

$64.75

16

LEVER ASM. (PTO and MAG Side)

3130849

$64.75

17

RING (PTO Side)

3140032

Unavailable

18

E-Ring

3130868

$8.89

19

Screw

3130844

$3.99

20

Plate

3130843

$8.89

21

PACKING Substituted by 3130867

3130974

Unavailable

22

NEEDLE-JET (9CG01-54-3)

3131014

Unavailable

23

SENSOR ASM. (MAG Side)

3131009

$259.03

24

Screw (MAG Side)

3131010

$4.79

25

CAP

3130479

$14.56

26

PISTON VALVE,ASM. Substituted by 3130789

3131002

$134.99

27

SPRING

3130836

$7.27

28

Cap

3130986

$9.70

29

Adjuster

3130987

$20.22

30

Washer

3130837

$3.19

31

Packing

3130835

$2.41

32

JET,PILOT,#50(10) Substituted by 3130629 (#50)

3130069

$7.27

33

JET,STARTER,#VM11/22-145 (#145)

3130769

$8.89

34

FLOAT,ASM. Substituted by 3130859

3130977

Unavailable

35

O-RING,FLOAT BOWL

3130861

$12.13

36

FLOAT,BODY

3130858

$119.99

37

SCREW,FLOAT BOWL

3130824

$3.19

38

NIPPLE,DRAIN SCREW

3130862

Unavailable

39

O-RING,DRAIN SCREW

3130863

$2.41

40

SCREW,VALVE SEAT

3130860

$8.79

41

JET,MAIN,HX.HD#430(10) (#430)

3130143

$7.27

42

Washer

3130949

$3.99

43

JET Substituted by 3130778

3131012

Unavailable

44

HOSE (PTO Side)

3131079

Unavailable

44

HOSE (Center and MAG Side)

3131080

Unavailable

45

SCREW,AIR FUNNEL

3130825

$3.19

46

ASM., FUNNEL

-------

Unavailable

47

O-RING,AIR FUNNEL

3130870

$24.27
