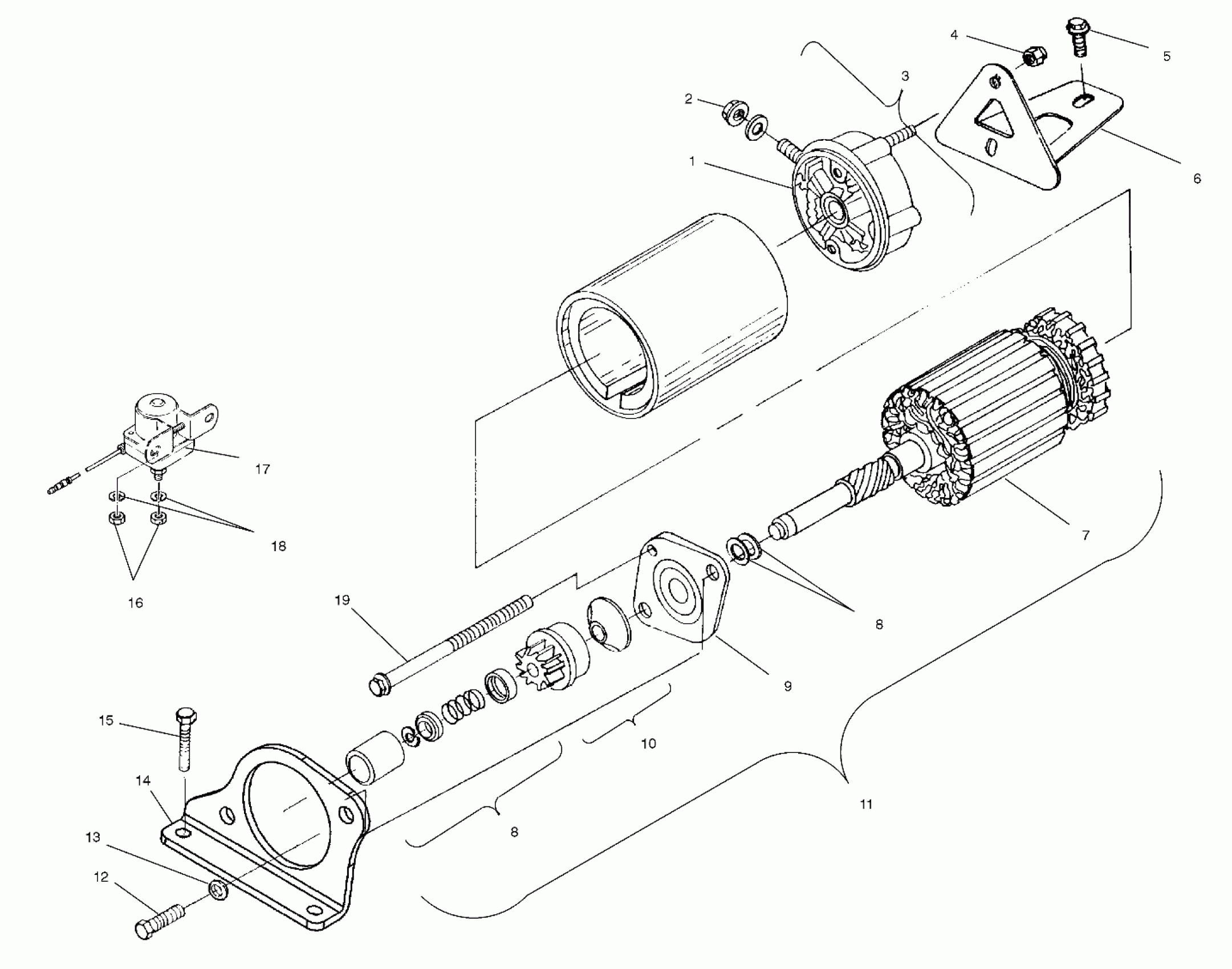

Polaris 700 XC SP - S02NP7CSA STARTING MOTOR - S02NP7CSA/CSB (4967576757C14) Diagram

#

Description
Price

1

Kit - Brush & Spring

2200759

$59.99

1

ASM., BRUSH & SCREW

-------

Unavailable

1

ASM., BRUSH

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

Nut

-------

Unavailable

2

Nut, FLEXLOC

7542103

$5.59

3

Kit - Commutator Cap Asm. [Incl.1]

2200758

$82.39

4

Nut

7542153

$1.59

5

SCREW

7516815

$6.39

6

Bracket, Starter, Rear

5245616

Unavailable

7

Kit - Armature Asm.

2200756

$169.99

8

Kit - Drive Hardware

2200755

Unavailable

8

WASHER, CURVED SPRING

-------

Unavailable

8

Washer, Thrust

-------

Unavailable

8

SPACER

-------

Unavailable

8

SPRING, ANTIDRIFT

-------

Unavailable

8

PINION, STOP

-------

Unavailable

8

RING, LOCK

-------

Unavailable

8

COVER, DUST

-------

Unavailable

8

Kit - Drive Hardware

2200755

Unavailable

8

WASHER, CURVED SPRING

-------

Unavailable

8

Washer, Thrust

-------

Unavailable

8

SPACER

-------

Unavailable

8

SPRING, ANTIDRIFT

-------

Unavailable

8

PINION, STOP

-------

Unavailable

8

RING, LOCK

-------

Unavailable

8

COVER, DUST

-------

Unavailable

9

Kit - Drive Cap Asm.

2200757

$59.99

10

Kit - Drive Asm.

2200754

Unavailable

10

PLATE, DRIVE

-------

Unavailable

10

PINION

-------

Unavailable

11

Motor-Starter, Domestic

4170006

Unavailable

12

Bolt

7512492

$1.49

13

Washer, Spring Lock

7552603

$1.49

14

Bracket, Starter, Front

5245615

Unavailable

15

Screw

7516730

$6.39

16

Nut

3082939

Unavailable

17

Switch, Magnetic [Incl. 16,18]

3083211

Unavailable

18

Washer, Spring

3080077

$2.39

19

Kit - Screw

2200753

$29.99

19

BOLT, THRU

-------

Unavailable
