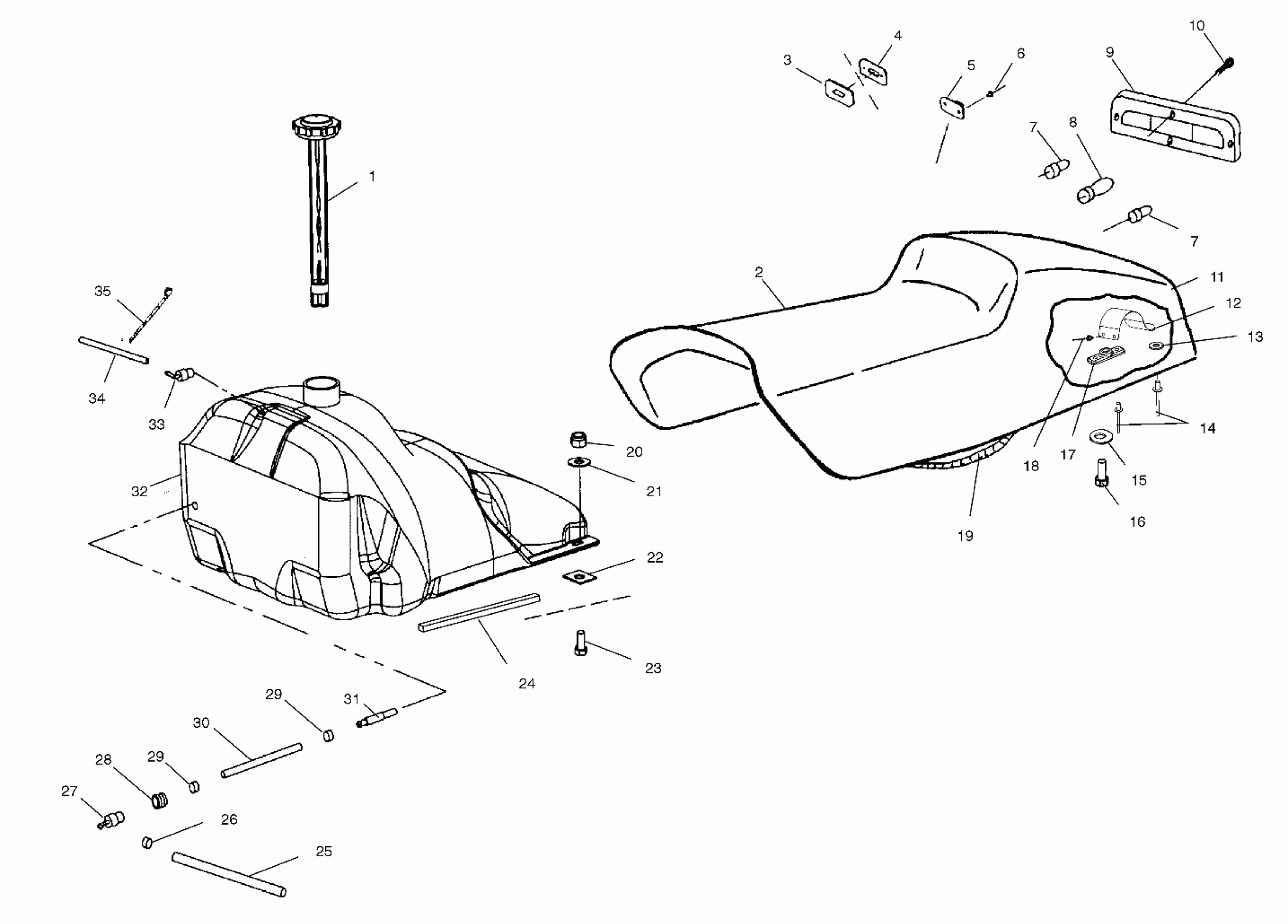

Polaris 700 XC SP - S02NP7CSA SEAT and GAS TANK - S02NP7CSA/CSB (4967576757A04) Diagram

#

Description
Price

1

Cap w/Gauge, Fuel

1240066

Unavailable

2

Asm., Seat Cushion [A]

2682755

Unavailable

2

Cover, Seat [A]

2682756

Unavailable

2

Asm., Seat Cushion [B]

2682752

Unavailable

2

Cover, Seat [B]

2682753

Unavailable

3

Grommet, Relatch, Bottom

7080550

Unavailable

4

Grommet, Relatch, Top

7080549

Unavailable

5

Relatch w/Hole, Twist Lock

7080548

Unavailable

6

Rivet

7621337

$1.49

7

Bulb, Taillight

4030024

$4.84

7

Bulb, Taillight

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

Lens

5430423

Unavailable

10

Screw

7511840

Unavailable

11

Housing, Taillight

5433341

Unavailable

12

Retainer, Tool Pouch Clip

5243185

$10.63

13

WASHER

7555727

$1.49

14

RIVET

7621319

$1.49

15

Washer, Flat

7558301

$1.49

16

SCREW

7512232

$1.49

17

NUT, SEAT

5631194

$4.99

18

RIVET

7621472

$1.49

19

Harness, Taillight

2460399

Unavailable

20

Nut, Nylok

7542122

$1.49

21

WASHER, FLAT

7555960

$3.99

22

Nut, Speed

7670021

$6.99

23

BOLT, CARRIAGE

7512193

$2.39

24

FOAM-SEAL,REAR COOLER

5810947

$4.03

25

Line, Fuel

8350018-600

Unavailable

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

Fitting

7052269

$24.99

28

Grommet

5432981

$6.94

29

RING, COMPRESSION

7080768

$4.84

29

RING, COMPRESSION

7080768

$4.84

30

Line, Fuel

8350020-600

Unavailable

31

Pickup, Fuel

7052215

$49.99

32

Asm., Fuel Tank [Incl. 31-33]

2520263

Unavailable

33

Fitting, 90 Degree

7052095

$4.79

34

LINE, FUEL

8450061-600

Unavailable

35

CABLE TIE, RELEASABLE

7080804

$3.22
