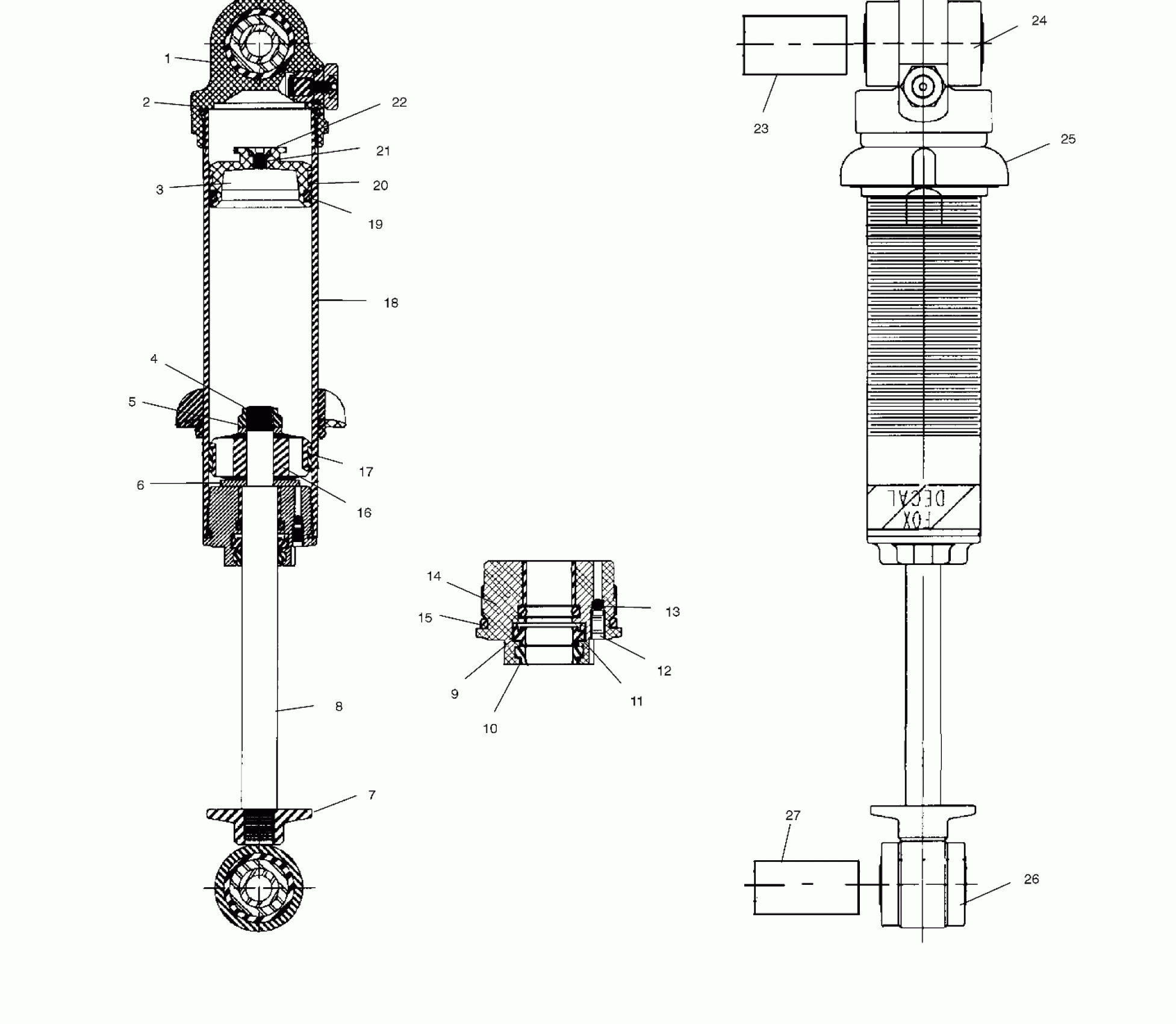

Polaris 700 XC SP - S02NP7CSA FOX SHOCK (FRONT TRACK) - S02NP7CSA/CSB (4967576757B11) Diagram

#

Description
Price

-

Shock, Front Track

7041975

Unavailable

1

Cap, Body

1500315

Unavailable

2

O-Ring

1500108

$10.99

3

Piston, Floating

1500187

$26.98

4

Nut, Lock

1500016

$12.79

5

Plate, Backup

1500015

$6.76

6

Plate, Top-Out

1500017

$20.22

7

EYELET

1500164

$93.08

8

Shaft

1500321

$53.59

9

U-Cup

1500266

$24.27

10

Wiper, Outer

1500268

Unavailable

11

O-Ring

1500021

$10.99

12

Screw

1500070

$6.39

13

Ball

1500071

$6.76

14

Asm., Bearing

1500186

Unavailable

15

O-Ring

1500020

$10.63

16

Kit, Piston Valving

2200618

Unavailable

17

Bearing

1500002

$31.99

18

Body

1500318

$62.39

19

O-Ring

1500003

$8.89

20

Bearing

1500006

$19.99

21

O-Ring

1500022

Unavailable

22

Screw

1500018

$5.56

23

SLEEVE

1500312

$23.99

24

Bushing

1500308

$6.63

25

Ring, Preload

1500323

$53.59

26

Bushing

1500309

Unavailable

27

SLEEVE

1500310

$23.99
