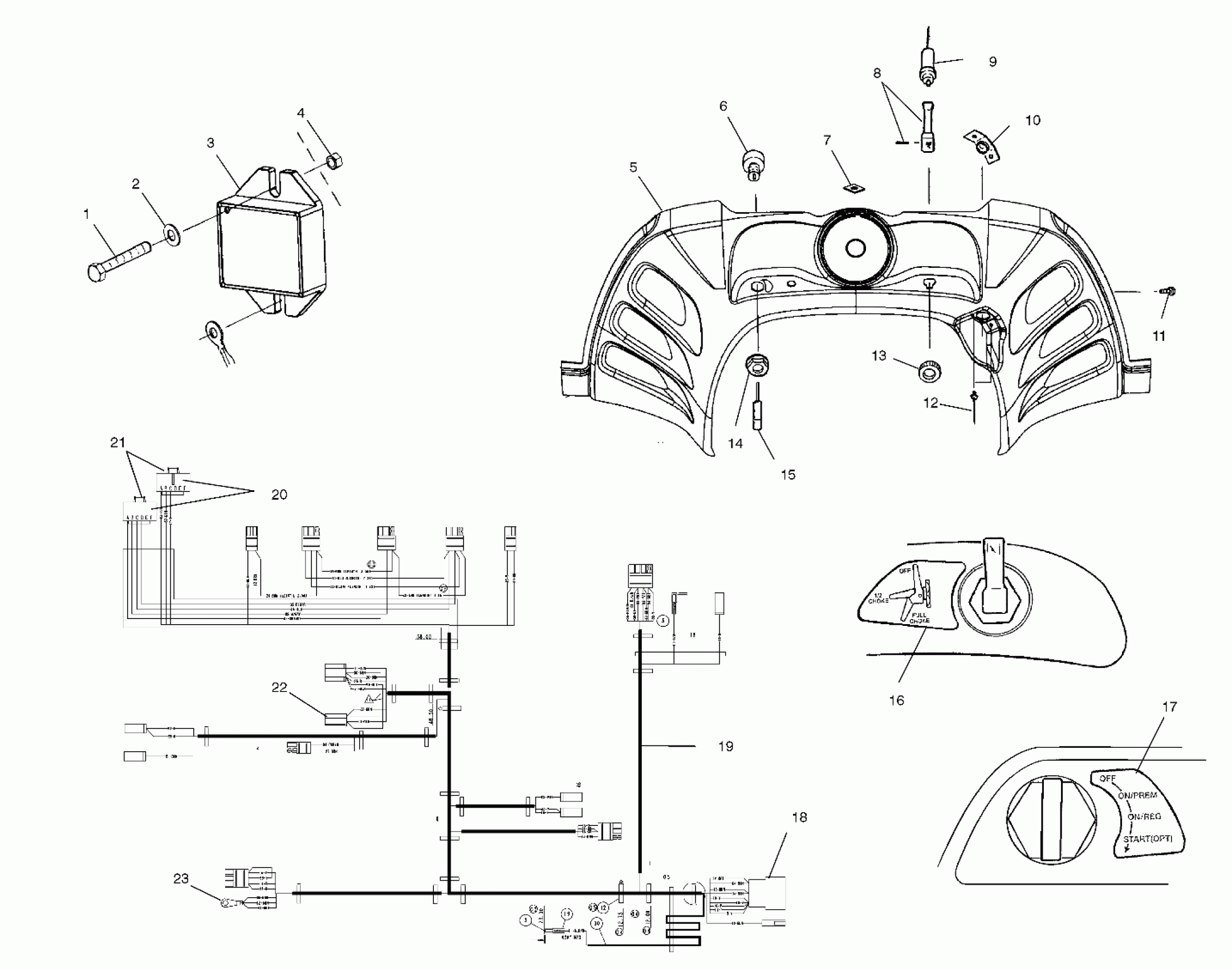

Polaris 700 XC SP - S02NP7CSA CONSOLE - S02NP7CSA/CSB (4967576757A11) Diagram

#

Description
Price

1

Screw

7512031

$2.23

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator, 14.3v

4010301

Unavailable

4

Nut, Nylok

7541925

$1.49

5

Console

5433724-070

Unavailable

6

Kit, Ignition Switch

2201614

$89.03

7

Clip, Xmas Tree

7670101

$2.39

8

Lever, Choke [Incl. Pin]

5432943

Unavailable

9

Cable, Choke [Incl. 8,13]

7080946

$89.03

10

GUIDE, RECOIL

5243049

$9.70

11

Screw

7515199

$1.49

12

RIVET

7621330

$1.49

13

Nut, Choke

5432944

$8.79

14

Nut, Ignition

7547035

$8.79

15

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

16

DECAL, CHOKE

7170054

$24.27

17

Decal, Ignition, Console

7078605

Unavailable

18

Housing

4020057

$3.51

19

Harness, Main Wire, TPS

2460792

Unavailable

20

Socket

4010192

Unavailable

21

Housing, Connector

4010193

$8.79

22

HOUSING

4020063

$3.19

23

Terminal, Ring

4020092

Unavailable
