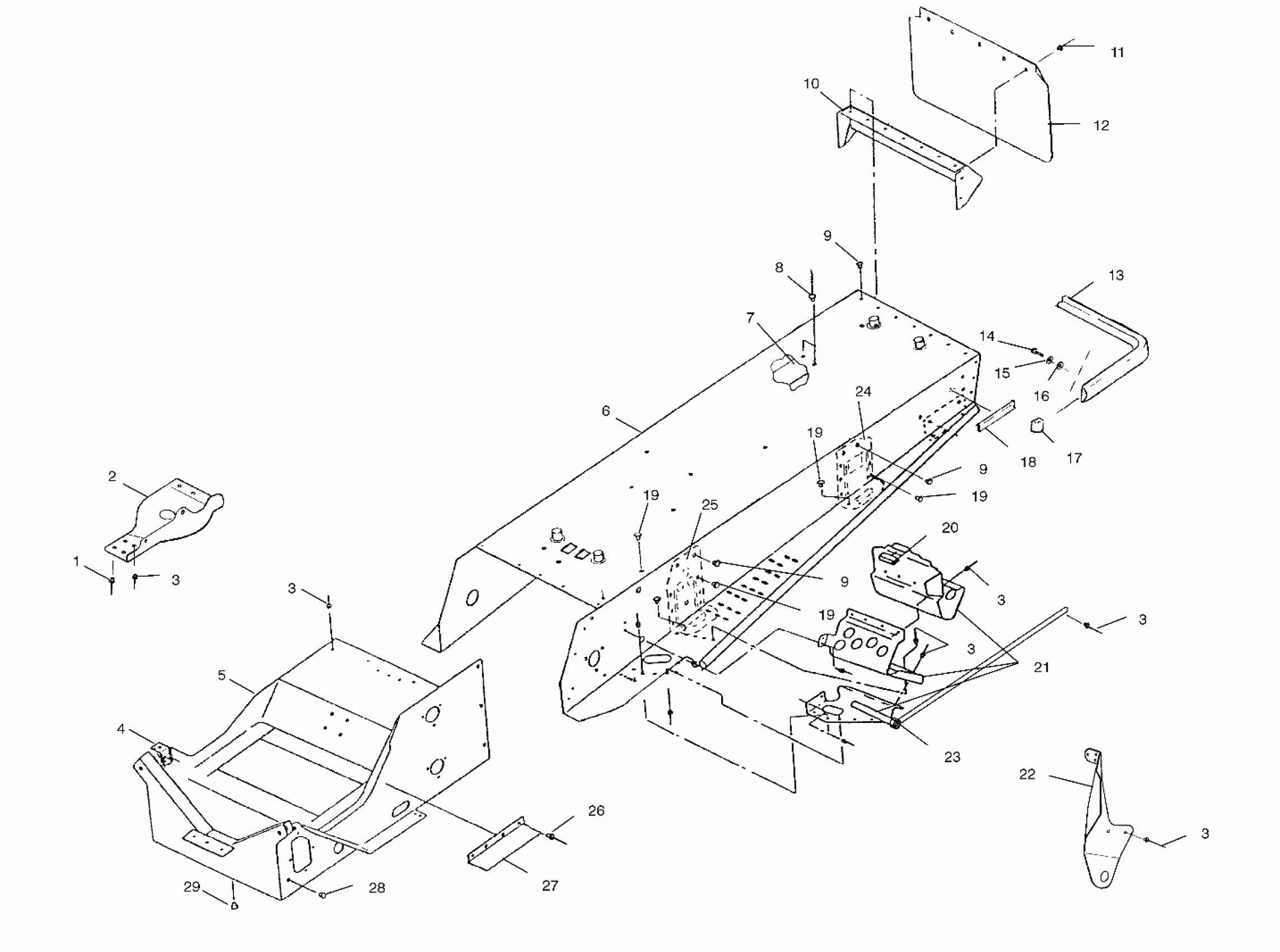

Polaris 700 XC SP - S00SP7AS TUNNEL - S00SP7AS (4954075407a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

Bracket, Muffler, Front (See Footnote) (See Exhaust System Pg. C4, Ref. 14)

-------

Unavailable

5

BULKHEAD,CRC,GEN 2 Substituted by 1013358-067

1013102-067

Unavailable

6

TUNNEL,LIQ.X-10,BLK (Incl. 10,24,25)

1012880-067

Unavailable

7

Cooler, Wear Strip (See Footnote) (See Cooling System Pg. B4, Ref.8)

-------

Unavailable

8

RIVET,3/16X.402(50)

7621432

$1.49

9

RIVET ,(50)

7661836

$0.63

9

RIVET ,(50)

7661836

$0.63

9

RIVET ,(50)

7661836

$0.63

10

PANEL,TUNNELBACK,BLK

5241946-067

Unavailable

11

POP RIVET(50)

7621418

$1.49

12

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

13

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

14

BOLT(10)

7512240

$3.99

15

LOCK WASHER(10)

7552801

$1.59

16

WASHER(10)

7558301

$1.49

17

CAP,BUMPER

5431995-070

Unavailable

18

REFLECTOR ASM,RED

2670133

$5.75

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

20

EXTRUSION,CLUTCHGUARD

5521238

$6.46

21

FOOTREST,LH,BLK

1012898

Unavailable

21

FOOTREST,RH,BLK

1012899

$119.99

22

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

22

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

23

SUPPORT,LH,TUNNEL,BLK

1012621-067

Unavailable

23

SUPPORT,RH,TUNNEL,BLK

1012622-067

$23.99

24

BRKT,LH,R.SUSP,BLK.

5241954-067

Unavailable

24

BRKT,RH,R.SUSP,BLK.

5241955-067

$22.23

25

BRKT,LH,FR.SUSP.MTG,BLK.

5242612-067

Unavailable

25

BRKT,RH,FR.SUSP.MTG,BLK.

5242613-067

Unavailable

26

RIVET(50)

7621452

$1.49

27

GUARD,ADAPTER GUIDE

5222857

$12.94

28

PLUG, HOLE(10)

7080416

$5.65

29

PLUG-HOLE

7080398

$4.84
