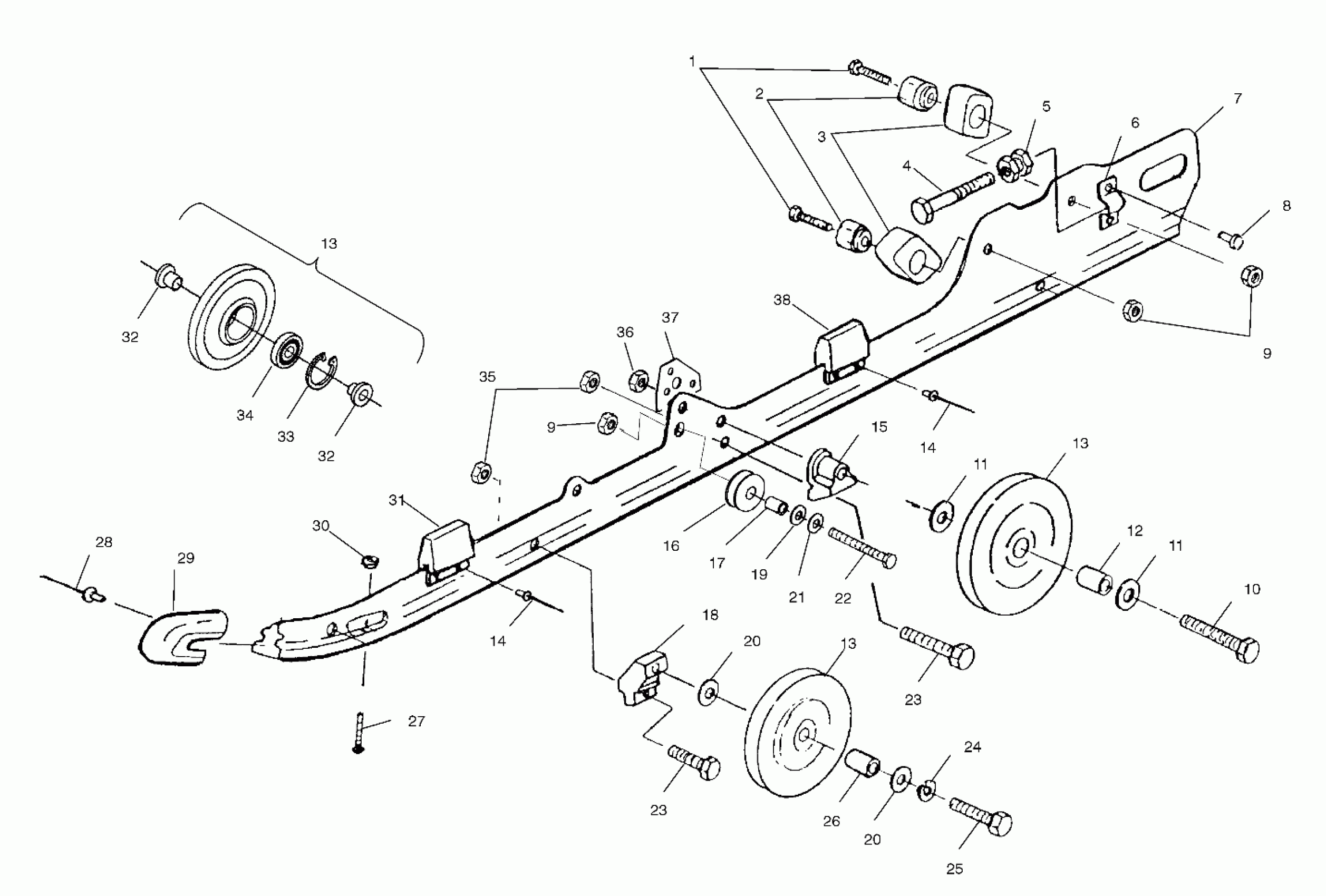

Polaris 700 XC SP - S00SP7AS RAIL MOUNTING (SUSPENSION) - S00SP7AS (4954075407b010) Diagram

#

Description
Price

1

BOLT,(10)

7515545

$5.59

2

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

3

BUMPER,F.PIVOT ARM

5410925

$12.94

4

BOLT, ADJUSTER(10)

7515455

$29.99

5

NUT,TENSIONER ADJ.

5020943

$20.22

6

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

7

RAIL,XTRA 10,121,LH (Incl. 29,31,38,3,6)

1541336

$319.99

7

RAIL,XTRA 10,121,RH (Incl. 29,31,38,3,6)

1541337

$329.99

8

RIVET,(50)

7621501

$2.39

9

NUT LOCK(10)

7542411

$3.19

9

NUT LOCK(10)

7542411

$3.19

10

BOLT(10)

7512538

$6.39

11

WASHER, FLAT(10)

7555852

$2.39

11

WASHER, FLAT(10)

7555852

$2.39

12

SPACER, WHEEL

5333116

$7.99

13

WHEEL,SCROLL,BOGIE,INDYRED (Incl. 32-33)

1594082-293

Unavailable

13

WHEEL,SCROLL,BOGIE,INDYRED (Incl. 32-33)

1594082-293

Unavailable

13

WHEEL,SCROLL,BOGIE,INDYRED (Incl. 32-33)

1594082-293

Unavailable

14

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

14

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

15

SPACER

5630399

$11.99

16

ROLLER,SPRING,SQUARE(X10)

5432982

$9.70

17

Spacer

5332787

Unavailable

18

BRACKET,BOGIE WHEEL

5130570

$48.56

19

WASHER(10)

7555806

$1.49

20

WASHER(10)

7555804

$3.99

20

WASHER(10)

7555804

$3.99

21

WASHER ,(10)

7555976

$3.99

22

BOLT Substituted by 7515491

7515433

$1.59

23

BOLT(10)

7512404

$3.99

23

BOLT(10)

7512404

$3.99

24

LOCK WASHER(10)

7553201

$3.99

25

BOLT(10)

7512659

$7.99

26

SPACER

5332786

$7.99

27

BOLT(10)

7515175

$3.99

28

RIVET(50)

7621435

$1.49

29

COVER,RAIL TIP

5433005

Unavailable

30

NUT-LOCK(10)

7542122

$1.49

31

REINF., BUMPER

5222629

$13.75

31

BUMPER, RAIL

5810554

$7.27

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

33

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

34

BEARING (1 per Wheel)

3514303

$11.99

35

NUT-LOCK(10)

7542439

$1.49

36

NUT, NYLOCK(10)

7542525

$4.79

37

BRKT,RAIL,REINF

5211790

Unavailable

38

REINF., BUMPER

5222629

$13.75

38

BUMPER,SUSPENSION

5811097

Unavailable
