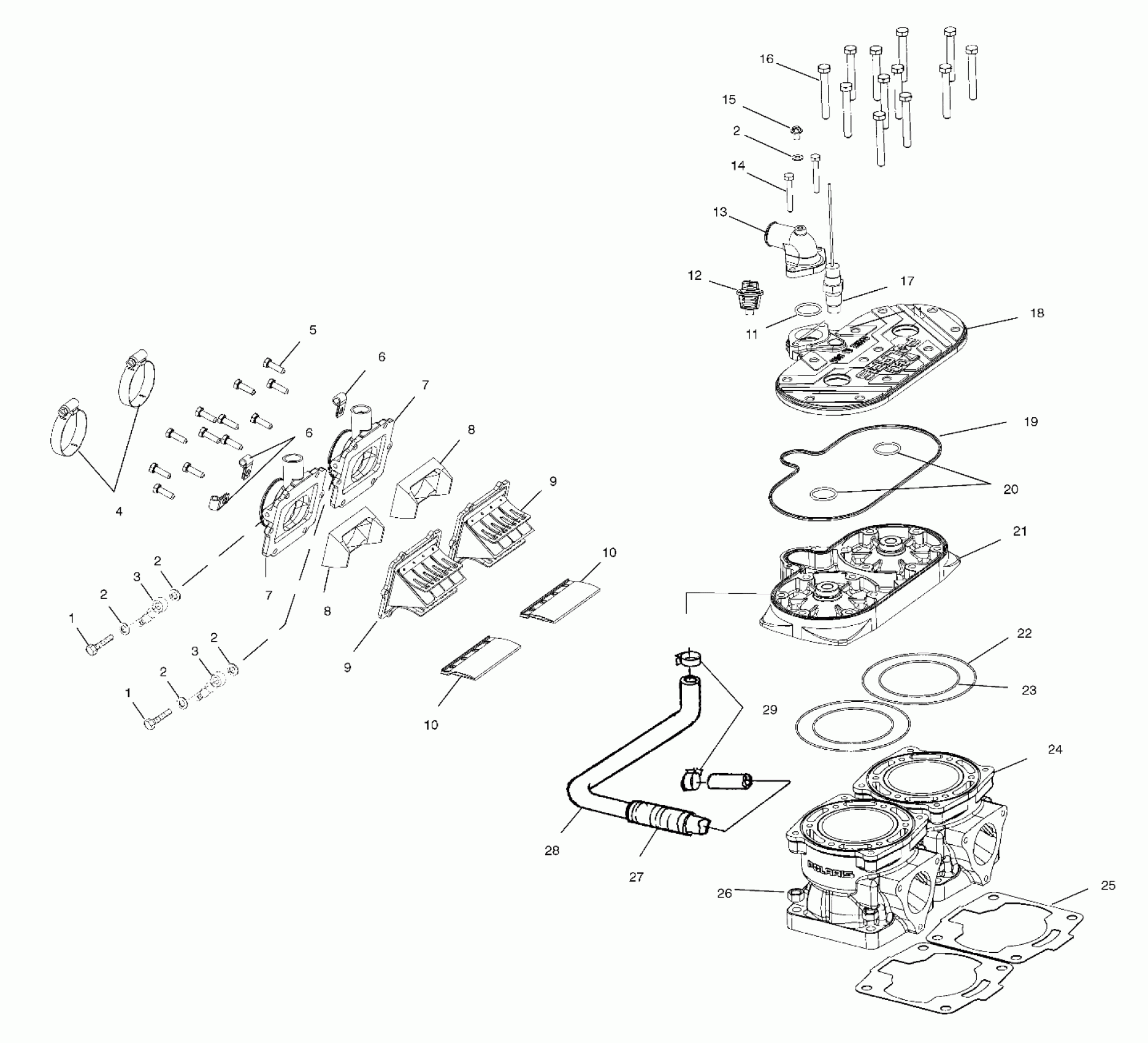

Polaris 700 XC SP - S00SP7AS CYLINDER - S00SP7AS (4954075407c009) Diagram

#

Description
Price

1

SCREW

7517578

Unavailable

1

SCREW

7517578

Unavailable

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

2

WASHER,FLAT,(10)

7555998

$1.49

3

VALVE,CHECK,OIL PUMP

7052160

Unavailable

3

VALVE,CHECK,OIL PUMP

7052160

Unavailable

4

CLAMP,HOSE,SS,(10)

7080681

$9.59

5

SCREW,(10)

7517398

$3.19

6

CLAMP,HOSE(10)

7080683

$2.39

6

CLAMP,HOSE(10)

7080683

$2.39

7

ADAPTOR-CARB,40MM,OIL INJ,SNO

1253259

Unavailable

7

ADAPTOR-CARB,40MM,OIL INJ,SNO

1253259

Unavailable

8

STUFFER-REED BLOCK,NOK

5433151

Unavailable

8

STUFFER-REED BLOCK,NOK

5433151

Unavailable

9

VALVE,REED,NOK

1201831

Unavailable

9

VALVE,REED,NOK

1201831

Unavailable

10

STUFFER

5411251

Unavailable

10

STUFFER

5411251

Unavailable

11

O-RING,LIPSEAL

5411521

$24.19

12

THERMOSTAT 60�C

7052224

$48.56

13

COVER-THERMOSTAT,M-6,BLEED Substituted by 5630992

5630910

Unavailable

14

SCREW

7516818

$5.59

15

SCREW,(10) Substituted by 7517565

7517266

$15.99

16

SCREW,M8X1.25X60(10)

7517534

$4.79

17

SENSOR,TEMP,93 DEG.C.

4110254

Unavailable

18

COVERHEAD-81MMT/BYPASS FIRERED

5631009-093

Unavailable

19

SEAL,RUBBER,MLDD,HEAD

5411294

Unavailable

20

O-RING(10)

5410917

$1.49

21

HEAD,CYL,81MM,BYPASS(TWNSNO)

3021022

Unavailable

22

O-Ring

5410931

Unavailable

23

O-RING

5410932

$20.22

24

CYLINDER, 81 MM.

5131824

$494.99

25

GASKET,CYL.BASE

5811538

Unavailable

26

NUT(10)

7547013

$1.99

27

CONDUIT,FLEX(.75"ID)

5521398-96

Unavailable

28

HOSE,BYPASS

5411536

Unavailable

29

CLAMP-3 TONG .810-.970(10)

7080810

$2.39
