Description

Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

SOCKET-PACKARD#12047767

4010192

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

HOUSING

4020063

$3.19

8

Terminal, Ring

4020092

Unavailable

9

Housing w/Receptacle

4020057

$3.51

10

HARNESS-MAIN,GEN 2 COMMON

2460733

$206.39

11

DECAL,IGN,OFF/RUN/START

7078603

Unavailable

12

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

13

SCREW(10)

7515199

$1.49

13

SCREW(10)

7515199

$1.49

14

KIT,IGN.SWITCH

2200358

$76.89

15

CABLE,CHOKE (Incl. 16,22)

7080636

Unavailable

16

KIT-CHOKE CONTROL

2200188

$24.27

17

WASHER,NYLON

7555932

$2.39

18

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

19

RIVET, POP(50)

7621330

$1.49

20

GUIDE-RECOIL

5243049

$9.70

21

WASHER-LOCK(10)

7571610

$3.99

22

Nut

7080229

$19.99

23

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

24

NUT,IGNITION

7547035

$8.79

25

CONSOLE,HYB,XC,BLK Substituted by 5433693

5432892

Unavailable

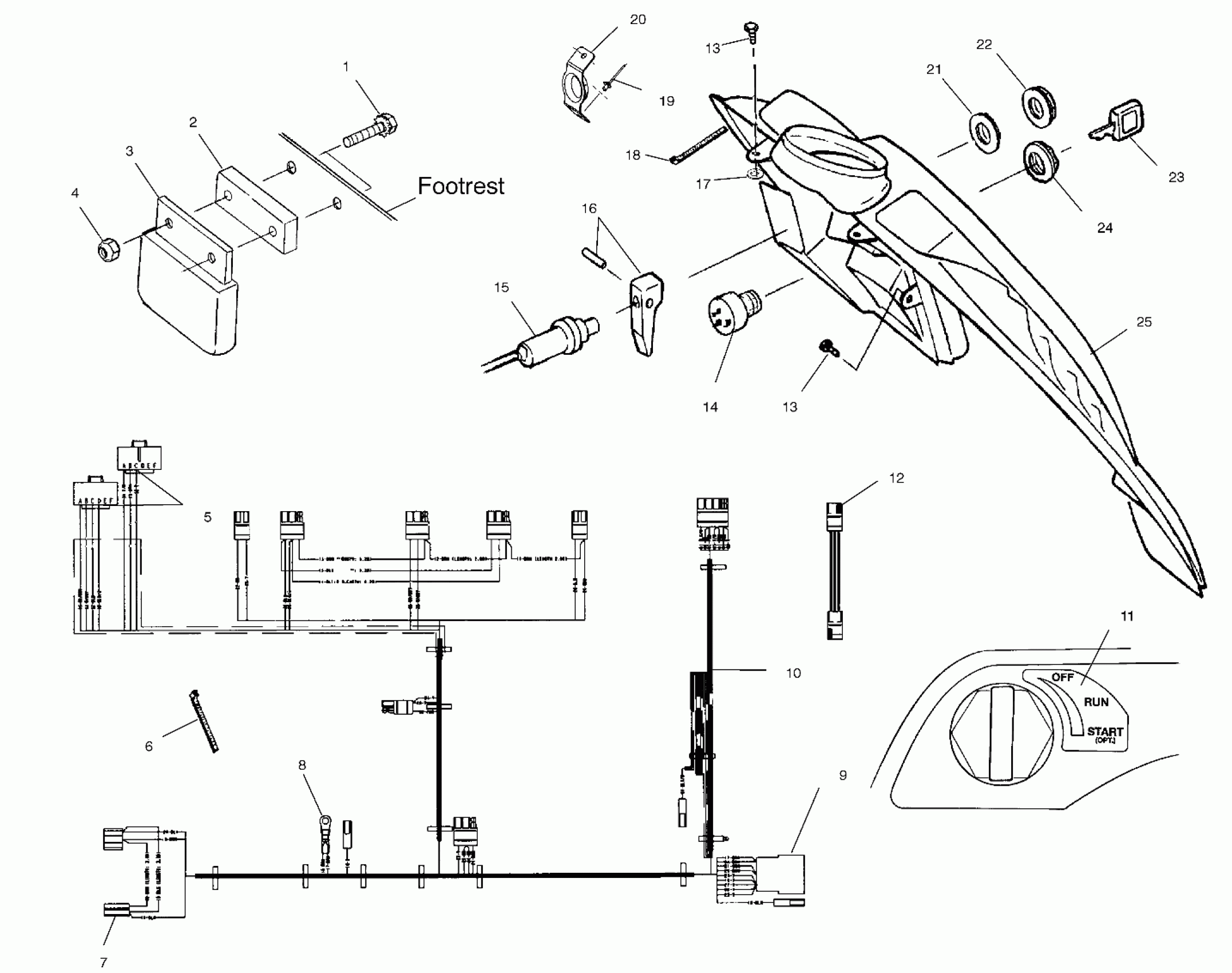

Polaris 700 XC SP - S00SP7AS CONSOLE - S00SP7AS (4954075407a013) Diagram

BOLT(10)

SPACER,REGULATOR

REGULATOR,(14.3VAC),LR-7

NUT(10)

SOCKET-PACKARD#12047767

CABLE-TIE,DIA12-50MM,WTHR-RES.

HOUSING

Terminal, Ring

Housing w/Receptacle

HARNESS-MAIN,GEN 2 COMMON

DECAL,IGN,OFF/RUN/START

JUMPER,SEAT,TAIL LIGHT

SCREW(10)

SCREW(10)

KIT,IGN.SWITCH

CABLE,CHOKE (Incl. 16,22)

KIT-CHOKE CONTROL

WASHER,NYLON

CABLE TIE-RELEASABLE,5 1/2"(10)

RIVET, POP(50)

GUIDE-RECOIL

WASHER-LOCK(10)

Nut

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

NUT,IGNITION

CONSOLE,HYB,XC,BLK Substituted by 5433693
