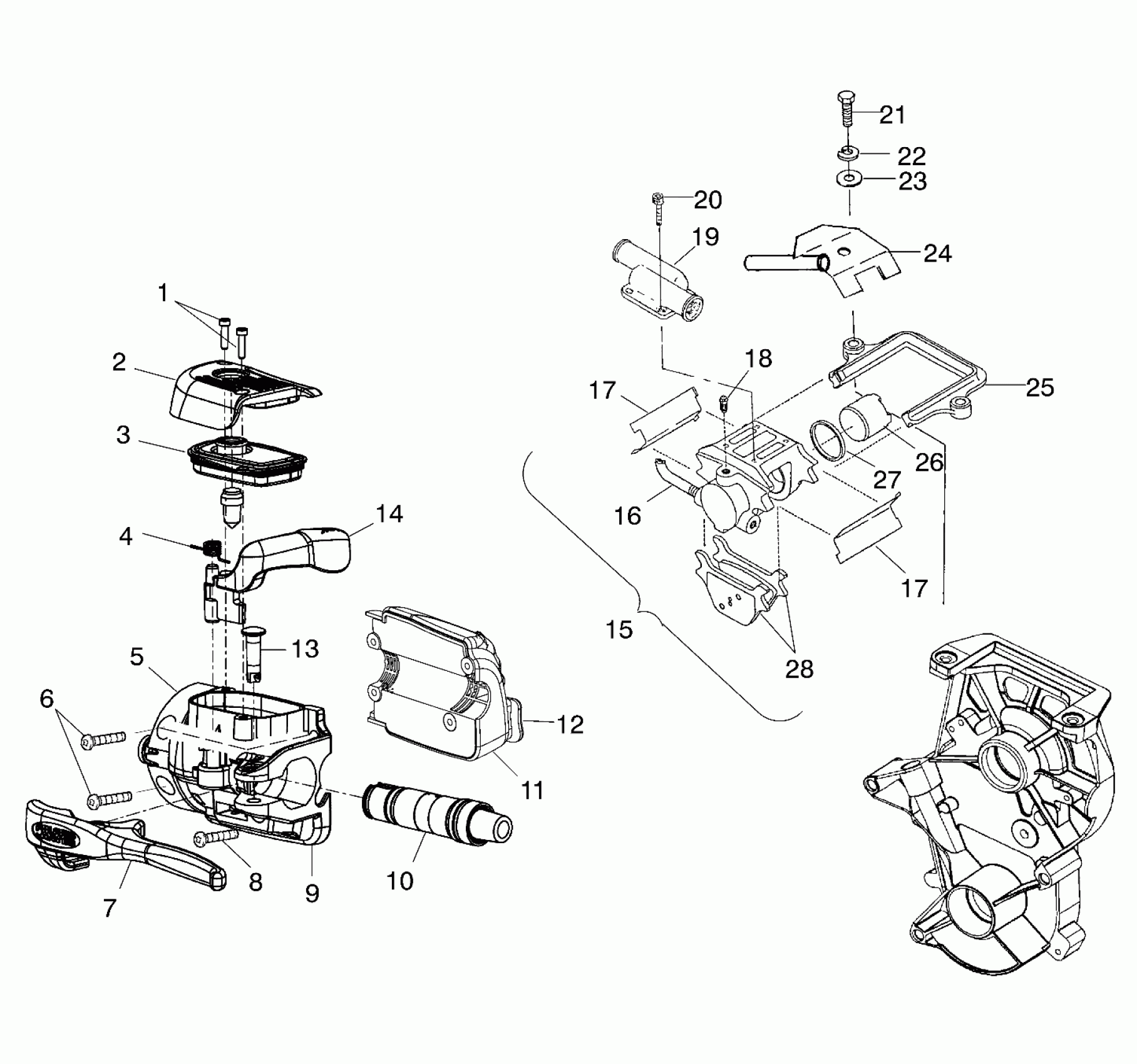

Polaris 700 XC SP - S00SP7AS BRAKE - S00SP7AS (4954075407a014) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,13)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

7

LEVER AND PIVOT PIN,HAYES,KIT Substituted by 2201943

2201569

$52.60

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

BUTTON SWITCH HI/LO

5433291

Unavailable

13

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

14

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

15

BRAKE CALIPER,HD,LIQ,NOSW (Incl. 26,27,28)

1910344

Unavailable

16

LINE-BRAKE,HYBRID

1910313

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

18

KIT, INLET

1930735

$9.11

19

COOLER,WATER,BRAKE

1930728

$62.39

19

GASKET,BRK.COOLER

2201024

$7.99

20

PK/4,SCREW SET (Pkg. of 4)

1930729

$29.49

21

BOLT(10)

7515521

$3.99

22

WASHER(10)

7552603

$1.49

23

WASHER(10)

7555806

$1.49

24

GUIDE,ROPE,CHAINCASE-Z

1012581

Unavailable

25

KIT,CALIPER BRKT.

1930733

Unavailable

26

KIT, PISTON SEAL (Incl. 27)

1930734

Unavailable

27

SEAL

2200466

$32.37

28

KIT,BRAKE,PAD TYPE 81(LARGE) (Incl. 17)

2201430

Unavailable

28

KIT,BRAKE,PAD TYPE 81(SMALL) (Incl. 17)

2201429

Unavailable
