Description

Price

-

Asm., Rail, M-10, Natural LH [Incl. 1-3,13,17,18,27,35]

1541676-309

$354.99

-

Asm., Rail, M-10, Natural RH [Incl. 1-3,13,17,18,27,35]

1541677-309

$354.99

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Cap, Rail Tip

5434374

$20.22

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

Block, Rail Support

5132577

Unavailable

7

RIVET

7661845

$1.49

8

Plate, Rail Support

5244651

$9.84

9

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

10

BEARING [1 PER WHEEL]

3514303

$11.99

11

Asm., Wheel, Scrolled, Red [Incl. 9,10]

1590275-293

$48.56

11

Asm., Wheel, Scrolled, Blue [Incl. 9,10]

1590275-312

Unavailable

11

Asm., Wheel, Scrolled, Red [Incl. 9,10]

1590275-293

$48.56

11

Asm., Wheel, Scrolled, Blue [Incl. 9,10]

1590275-312

Unavailable

12

Washer, Flat

7555783

$3.99

12

Washer, Flat

7555783

$3.99

13

Bumper, Rail Jounce

5411947

$12.39

14

Screw

7512392

$4.79

15

Screw

7517773

$28.56

16

Nut, Tension Adjust

5132712

Unavailable

17

RIVET

7621501

$2.39

18

Block, Idler Bolt Adjust

5132611

$34.71

19

Guide, Slider, LH

5631103

$51.59

19

Guide, Slider, RH

5631104

Unavailable

20

Plate, Coupler Block

5245045

Unavailable

21

Bolt

7512310

$2.39

22

Block, Slider, Long, M-10, LH

5434239

$19.60

22

Block, Slide, Long, M-10, RH

5434240

$16.47

23

Block, Shock Pivot Threaded

5132584

$45.99

24

Bolt

7515511

$3.99

25

NUT

7542404

$1.59

26

Spacer

5133009

$2.22

27

Bolt

7511967

$5.43

28

CLAMP, RESERVOIR

5132832

$23.99

29

BOLT

7515319

$4.79

30

BOLT

7515382

$2.39

31

Washer, Spring

7556179

$7.99

32

Mount, Wheel

5131314

$53.59

33

Bolt

7512329

$3.99

34

Hi-Fax, M-10, Natural

5521563-309

$36.41

35

Screw

7511975

Unavailable

36

Screw

7515199

$1.49

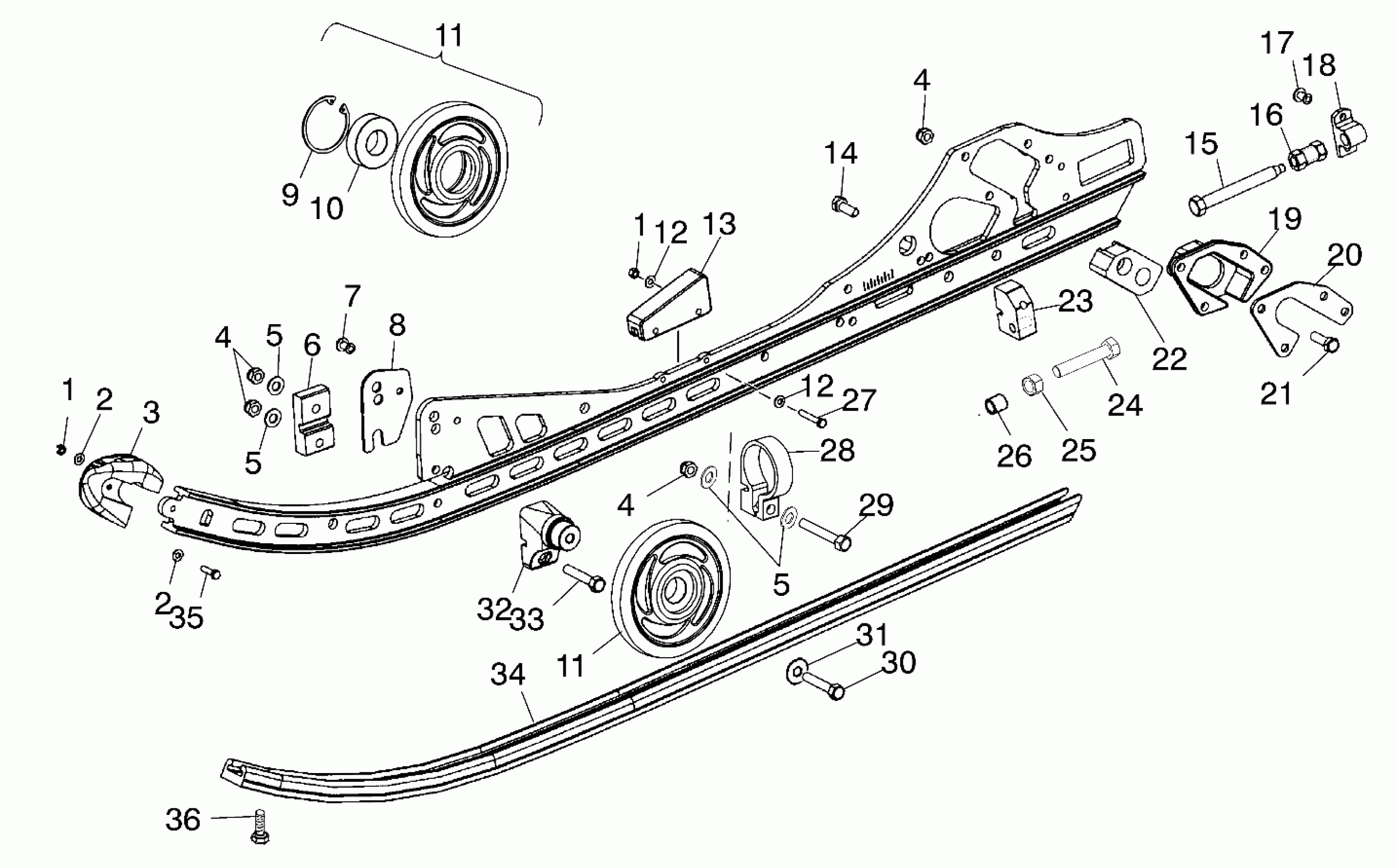

Polaris 700 XC SP M-10 F/O - S02NE7CS RAIL MOUNTING (M-10) - S02NE7CS (4973447344B12) Diagram

Asm., Rail, M-10, Natural LH [Incl. 1-3,13,17,18,27,35]

Asm., Rail, M-10, Natural RH [Incl. 1-3,13,17,18,27,35]

Nut, Nylok

Nut, Nylok

WASHER

WASHER

Cap, Rail Tip

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

WASHER-.344X.688X.063 FL-Y

WASHER-.344X.688X.063 FL-Y

Block, Rail Support

RIVET

Plate, Rail Support

RET.RING-TRUARC [1 PER WHEEL]

BEARING [1 PER WHEEL]

Asm., Wheel, Scrolled, Red [Incl. 9,10]

Asm., Wheel, Scrolled, Blue [Incl. 9,10]

Asm., Wheel, Scrolled, Red [Incl. 9,10]

Asm., Wheel, Scrolled, Blue [Incl. 9,10]

Washer, Flat

Washer, Flat

Bumper, Rail Jounce

Screw

Screw

Nut, Tension Adjust

RIVET

Block, Idler Bolt Adjust

Guide, Slider, LH

Guide, Slider, RH

Plate, Coupler Block

Bolt

Block, Slider, Long, M-10, LH

Block, Slide, Long, M-10, RH

Block, Shock Pivot Threaded

Bolt

NUT

Spacer

Bolt

CLAMP, RESERVOIR

BOLT

BOLT

Washer, Spring

Mount, Wheel

Bolt

Hi-Fax, M-10, Natural

Screw

Screw
