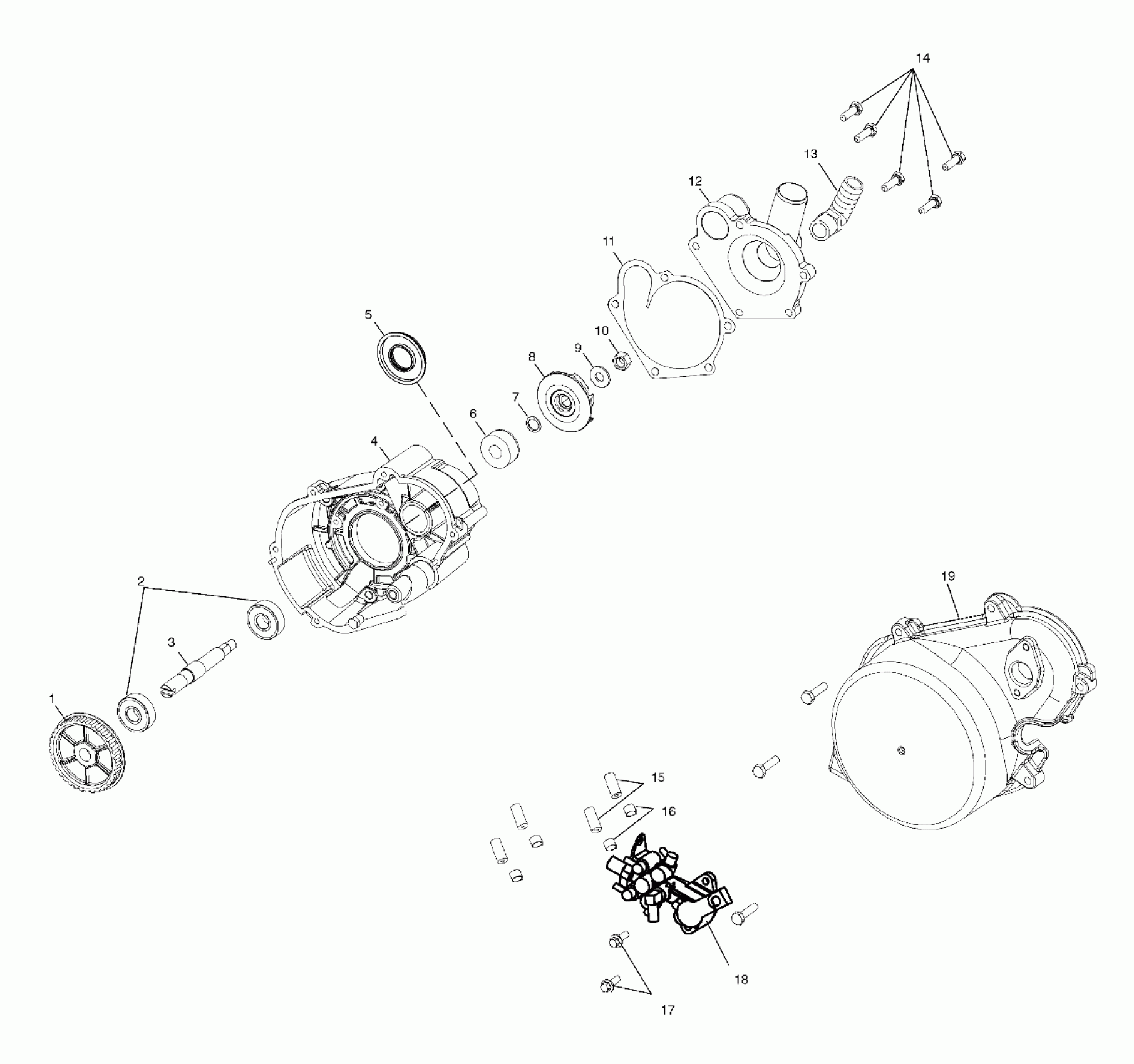

Polaris 700 XC SP F/O - S02NP7CS WATER PUMP/OIL PUMP - S02NP7CS/S02NE7CS (4973447344D06) Diagram

#

Description
Price

1

Pulley

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

3

Shaft

5132273

$94.99

4

Housing, Ignition [See Magneto Pg. D10, Ref. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

Seal, Water Pump

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

NUT, NYLOK

7546804

$1.49

11

Gasket, Cover

5811627

$8.89

12

Cover

5630864

$53.17

13

Fitting, 90 Degree

7052221

Unavailable

14

SCREW

7516822

$2.39

15

Line, Fuel

8450061-82

Unavailable

16

Clamp

7080603

$1.59

17

Screw

7516607

$10.39

18

Pump, Oil

2540053

Unavailable

19

Housing, Ignition [See Magneto Pg. D10, Ref. 13]

-------

Unavailable
