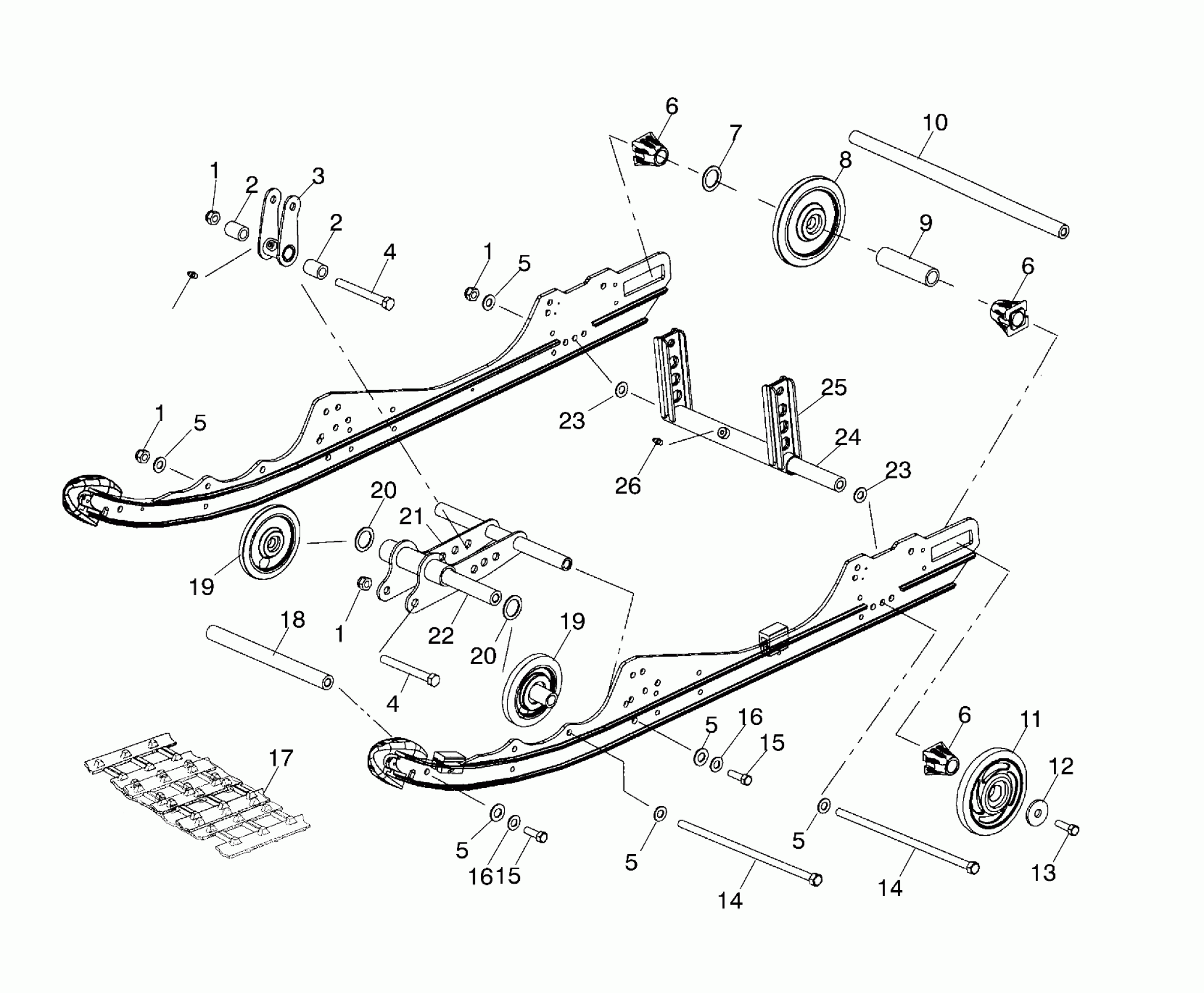

Polaris 700 XC SP F/O - S02NP7CS REAR SUSPENSION (EDGE) - S02NP7CS (4973447344B09) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

BUSHING

5131940

$3.19

2

BUSHING

5131940

$3.19

3

Arm, Pivot, Shock

1541477-067

$56.99

4

SCREW

7515417

$4.79

4

SCREW

7515417

$4.79

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

Wheel

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

RING-RETAINING

7710444

$8.79

11

Bearing

3514012

Unavailable

11

Asm., Idler Wheel, Red

1590303-293

$48.56

11

Asm., Idler Wheel, Blue

1590303-312

$48.56

12

WASHER, BELLE

7556130

$6.39

13

BOLT

7517731

$1.49

14

SCREW

7517921

$23.99

14

SCREW

7517921

$23.99

15

Screw

7517247

$3.19

15

Screw

7517247

$3.19

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

17

Clip, Slide

5222839

Unavailable

17

Clip, Slide

5222839

Unavailable

17

CLIP, GUIDE

5222840

Unavailable

17

Track [.91 inch]

5411369

Unavailable

17

Track [1.25 Inch]

5411963

$699.00

18

Shaft, Pivot Arm

5020723

$29.99

19

Asm., Wheel

1541485

$72.84

19

Asm., Wheel

1541485

$72.84

20

Bushing

7556301

$3.19

20

Bushing

7556301

$3.19

21

Mount, Shock

1541463-067

Unavailable

22

Shaft

5132490

Unavailable

23

Washer, Flat

7555893

$1.49

23

Washer, Flat

7555893

$1.49

24

SHAFT

5333404

$24.27

25

Arm, Pivot, Rear

1541478-067

$27.70

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79
