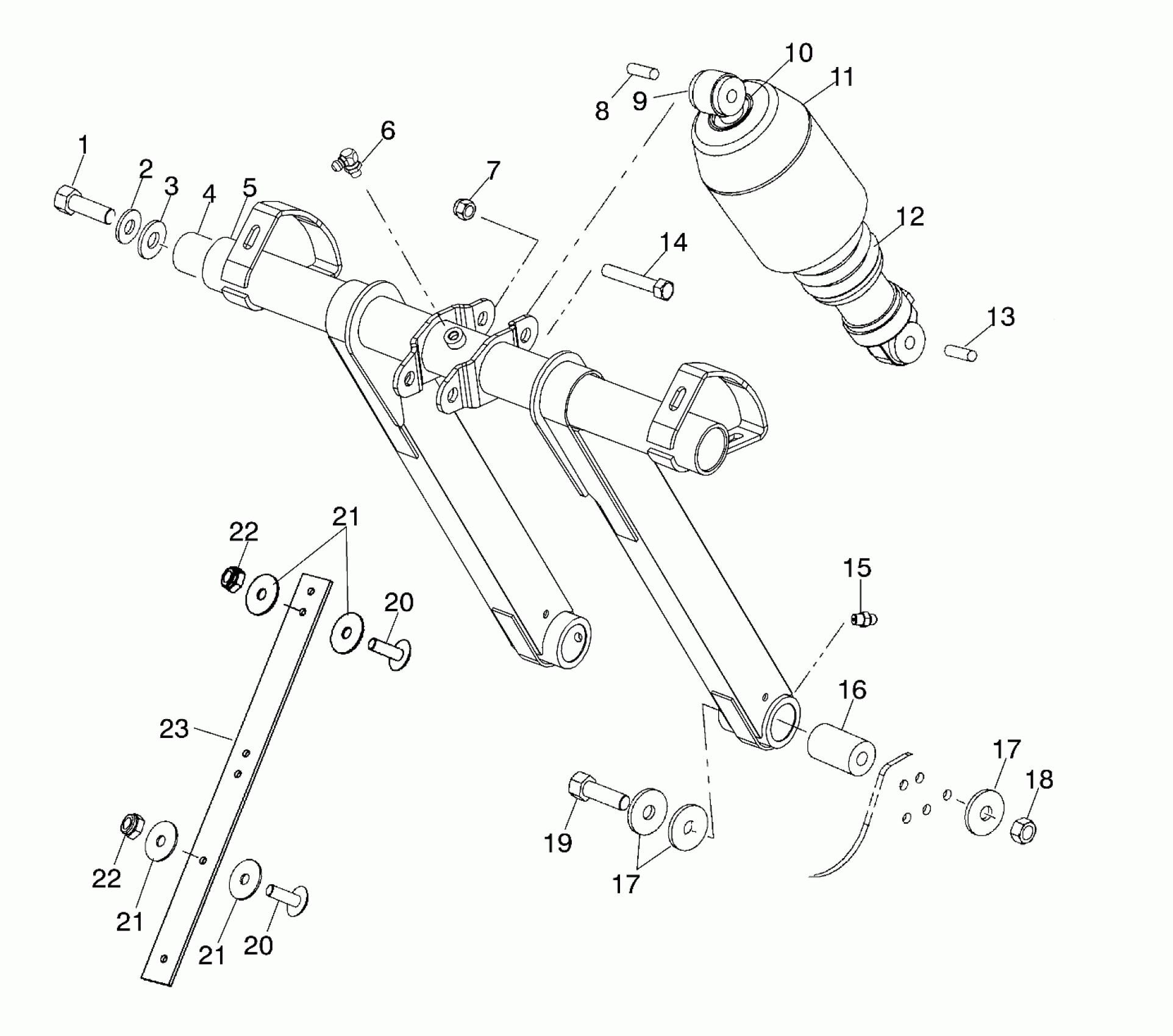

Polaris 700 XC SP F/O - S02NP7CS FRONT TORQUE ARM (EDGE) - S02NP7CS (4973447344B10) Diagram

#

Description
Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5132067

$59.52

5

Arm, Torque, Front, Red

1541532-293

Unavailable

5

Arm, Torque, Front, Yellow

1541532-216

Unavailable

6

Fitting, 90 Degree

7080510

$5.59

7

Nut, Nylok

7542439

$1.49

8

SLEEVE

5333905

$15.99

9

Shock, Front Track

7041975

Unavailable

10

RETAINER, SPRING, SLOTTED

5020618

$24.99

11

SHIELD, SPRING

5433503

$24.27

12

Spring

7041914-067

$144.99

13

SLEEVE

5333906

$15.99

14

Screw

7515415

$1.49

15

FITTING-LUBRICATION 1/4-28

7080424

$4.79

16

Shaft

5132387

Unavailable

17

WASHER

7556156

$4.79

17

WASHER

7556156

$4.79

18

Nut, Nylok

7547066

$1.59

19

Screw

7512597

$4.99

20

SCREW

7517313

$4.79

20

SCREW

7517313

$4.79

21

Washer, Flat

7556175

$5.99

21

Washer, Flat

7556175

$5.99

21

Washer, Flat

7556175

$5.99

22

NUT, NYLOK

7542344

$3.99

22

NUT, NYLOK

7542344

$3.99

23

Strap, Limiter

5412140

$36.41
