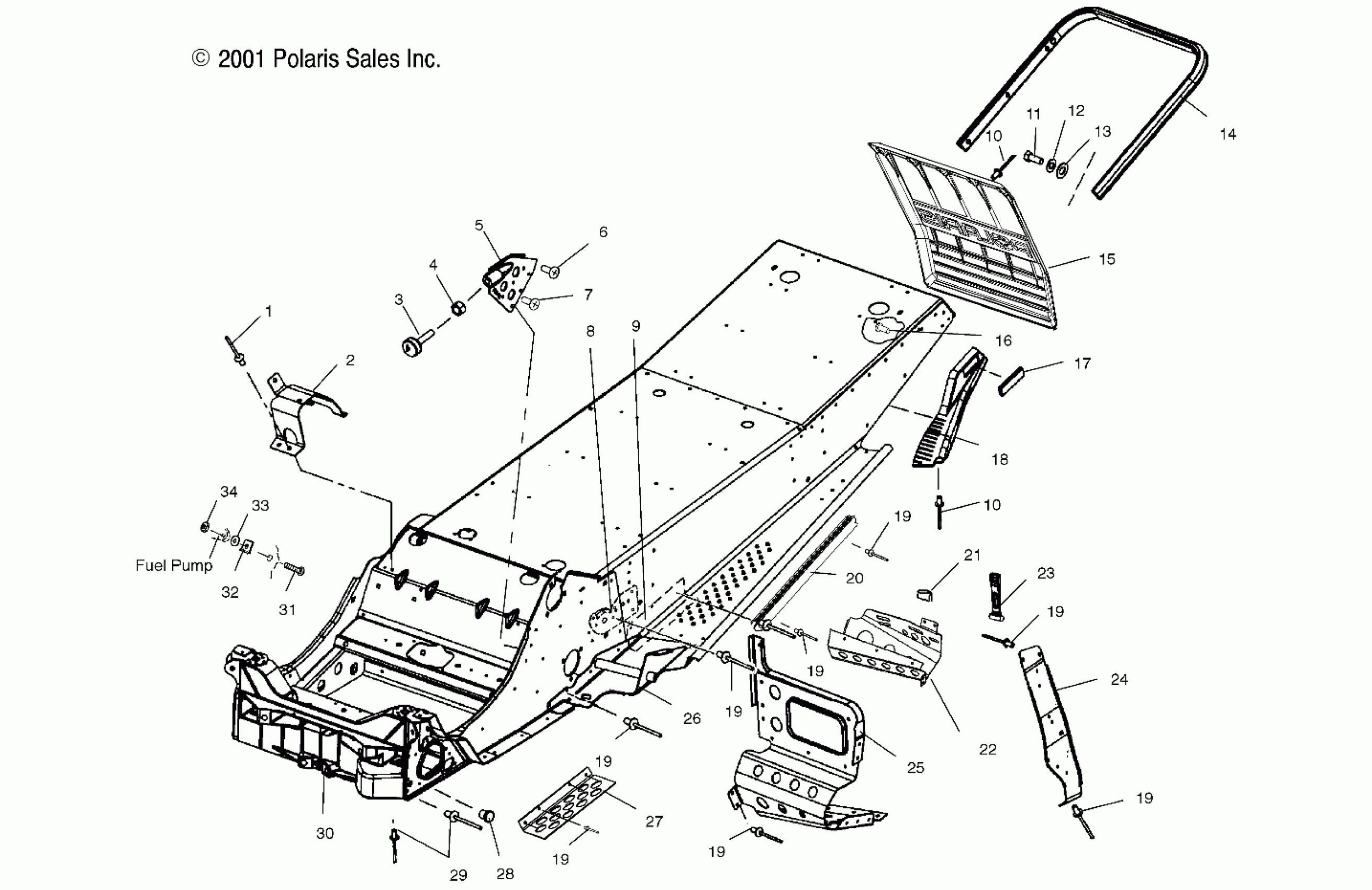

Polaris 700 XC SP F/O - S02NP7CS CHASSIS - S02NP7CS/S02NE7CS (4973447344A03) Diagram

#

Description
Price

-

Asm., Chassis, Edge, Natural

1013686-309

Unavailable

-

Asm., Chassis, Edge X, Natural/Yellow

1013685-1124

Unavailable

-

Asm., Chassis, M-10, Natural

1013687-309

Unavailable

-

Asm., Chassis, M-10, Natural/Yellow

1013687-1124

Unavailable

1

Rivet

7621432

$1.49

2

Bracket, Jackshaft Shield

5245003

$13.19

3

Stop, Torque

3110078

$36.41

4

NUT

7542404

$1.59

5

Stop, Torque

1013377

$27.19

6

SCREW

7517632

$5.59

7

Screw

7517854

$5.59

8

Pad, Suspension, Front, LH [M-10]

5244999-067

Unavailable

8

Pad, Suspension, Front, RH [M-10]

5245001-067

$24.27

9

Brace, Lower, Tunnel, LH [M-10]

5244997-067

$19.83

9

Brace, Lower, Tunnel, RH [M-10]

5244998-067

$19.83

10

RIVET

7621472

$1.49

10

RIVET

7621472

$1.49

11

BOLT

7512240

$3.99

12

WASHER, SPRING LOCK

7552801

$1.59

13

Washer, Flat

7558301

$1.49

14

Bumper, Rear, Unpainted

2632165-309

Unavailable

14

Bumper, Rear, Yellow

2632165-216

Unavailable

15

Flap, Snow, Edge

5433961-1106

Unavailable

15

Flap, Snow, Edge X

5433979

Unavailable

16

Screw

7517441

$2.39

17

Reflector, Red

2670133

$5.75

18

Skirt, Snow, LH

2632443-070

$64.75

18

Skirt, Snow, RH

2632444-070

$55.99

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

20

Brace, Tunnel Roll

5245118

$23.81

20

Grip, Tunnel Roll, Yellow [Edge X]

5244351-216

Unavailable

21

EXTRUSION, CLUTCH GUARD

5521238

$6.46

22

Mount, Console, Toe Clip, LH

5245457

Unavailable

22

Mount, Console, Toe Clip, RH

5245458

Unavailable

23

STRAP-AIRBOX TOP

5433150

$24.27

24

Support, Footrest, LH

5242741

$19.68

24

Support, Footrest, RH

5242742

$32.37

25

Footrest, LH

5245288

Unavailable

25

Footrest, RH

5242740

Unavailable

26

Kit, Trailing Arm Mount, LH

2202059

$213.00

26

Kit, Trailing Arm Mount, RH

2202060

Unavailable

27

Guard, Belt

5245836

$30.99

28

PLUG, HOLE

7080416

$5.65

29

Rivet

7661639

Unavailable

30

Bulkhead, Front

5132292

$115.99

31

Bolt, Carriage

7512275

$3.99

32

Nut, Speed

7670021

$6.99

33

Washer, Nylon

7555932

$2.39

34

Nut, Nylok

7542122

$1.49
