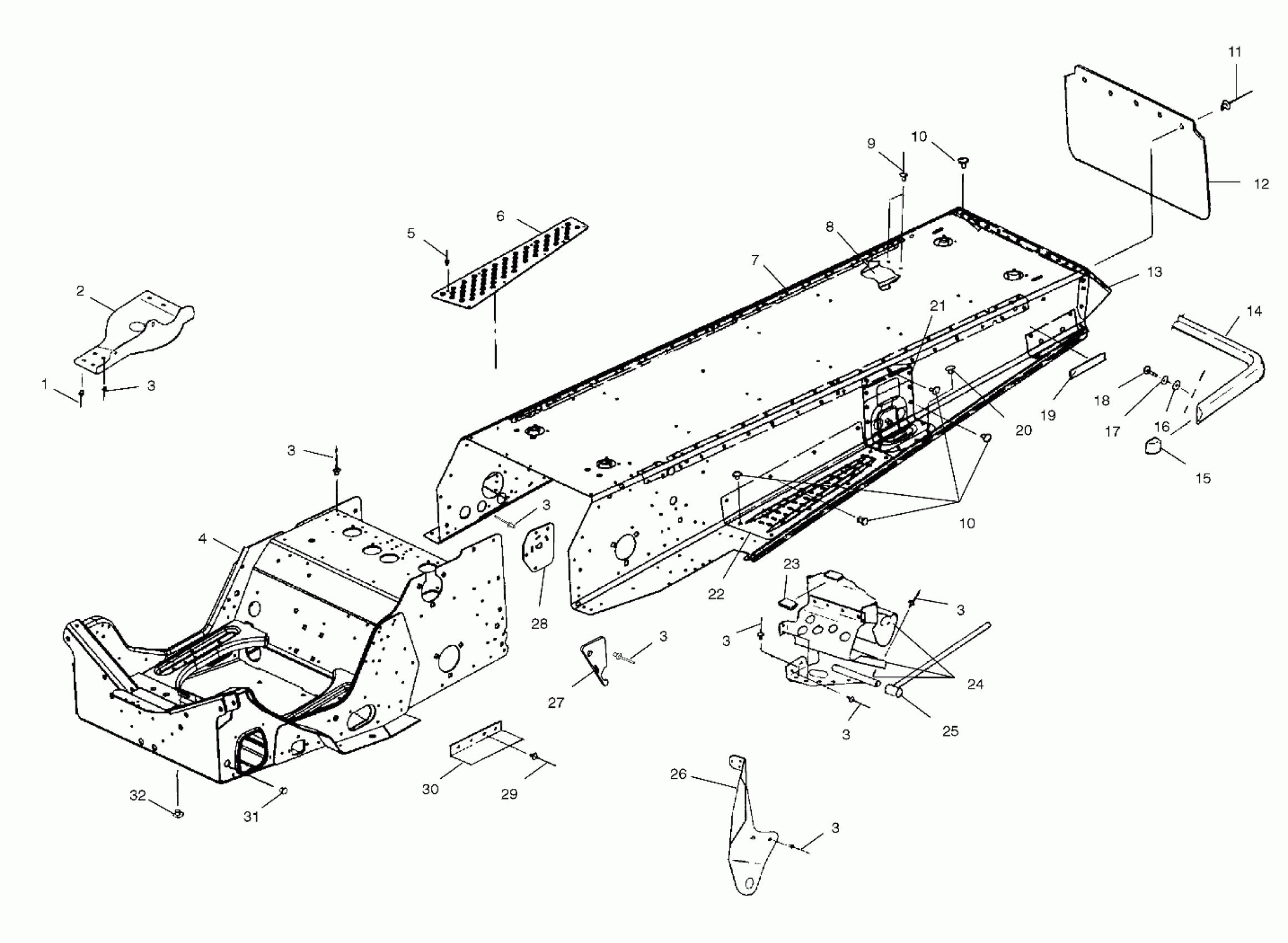

Polaris 700 XC DELUXE - S00SD7AS TUNNEL - S00SD7AS (4954085408A005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

BULKHEAD,CRC,GEN 2 Substituted by 1013358-067

1013102-067

Unavailable

5

RIVET(50)

7621433

$1.49

6

GRIPPER-BOOT,LH,INDY RED

5243297-293

Unavailable

6

GRIPPER-BOOT,RH,INDY RED

5243298-293

Unavailable

7

TUNNEL,LIQ,X-12,BLK,ASM. Substituted by 1013230-067 (Incl. 13,21,22)

1013076-067

Unavailable

8

Cooler, Wear Strip (See Footnote) (See Cooling System Pg. B4, Ref.8)

-------

Unavailable

9

RIVET,3/16X.402(50)

7621432

$1.49

10

RIVET,SEMI-TUBE,(50)

7661841

$1.49

10

RIVET,SEMI-TUBE,(50)

7661841

$1.49

11

POP RIVET(50)

7621418

$1.49

12

FLAP-SNOW,13.74",RED W/WHITE

5432149-1105

Unavailable

13

PANEL,TUNNELBACK,BLK

5241946-067

Unavailable

14

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

15

CAP,BUMPER

5431995-070

Unavailable

16

WASHER(10)

7558301

$1.49

17

LOCK WASHER(10)

7552801

$1.59

18

BOLT(10)

7512240

$3.99

19

REFLECTOR ASM,RED

2670133

$5.75

20

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

21

REAR SUSP PAD,LH,BLK

1541436-067

$30.55

21

REAR SUSP PAD,RH,BLK

1541437-067

$30.55

22

BRACE-CORNER,LH

5243443

$24.79

22

BRACE-CORNER,RH

5243444

$25.59

23

EXTRUSION,CLUTCHGUARD

5521238

$6.46

24

FOOTREST,LH,BLK

1012898

Unavailable

24

FOOTREST,RH,BLK

1012899

$119.99

25

SUPPORT,LH,TUNNEL,BLK

1012621-067

Unavailable

25

SUPPORT,RH,TUNNEL,BLK

1012622-067

$23.99

26

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

26

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

27

PLATE-FRT TORQUE ARMSPACER,BLK

5243655-067

$7.43

28

SUSP,PAD,FR,LH,BLK.

1012919-067

Unavailable

28

SUSP,PAD,FR,RH,BLK.

1012920-067

Unavailable

29

RIVET(50)

7621452

$1.49

30

GUARD,ADAPTER GUIDE

5222857

$12.94

31

PLUG, HOLE(10)

7080416

$5.65

32

PLUG-HOLE

7080398

$4.84
