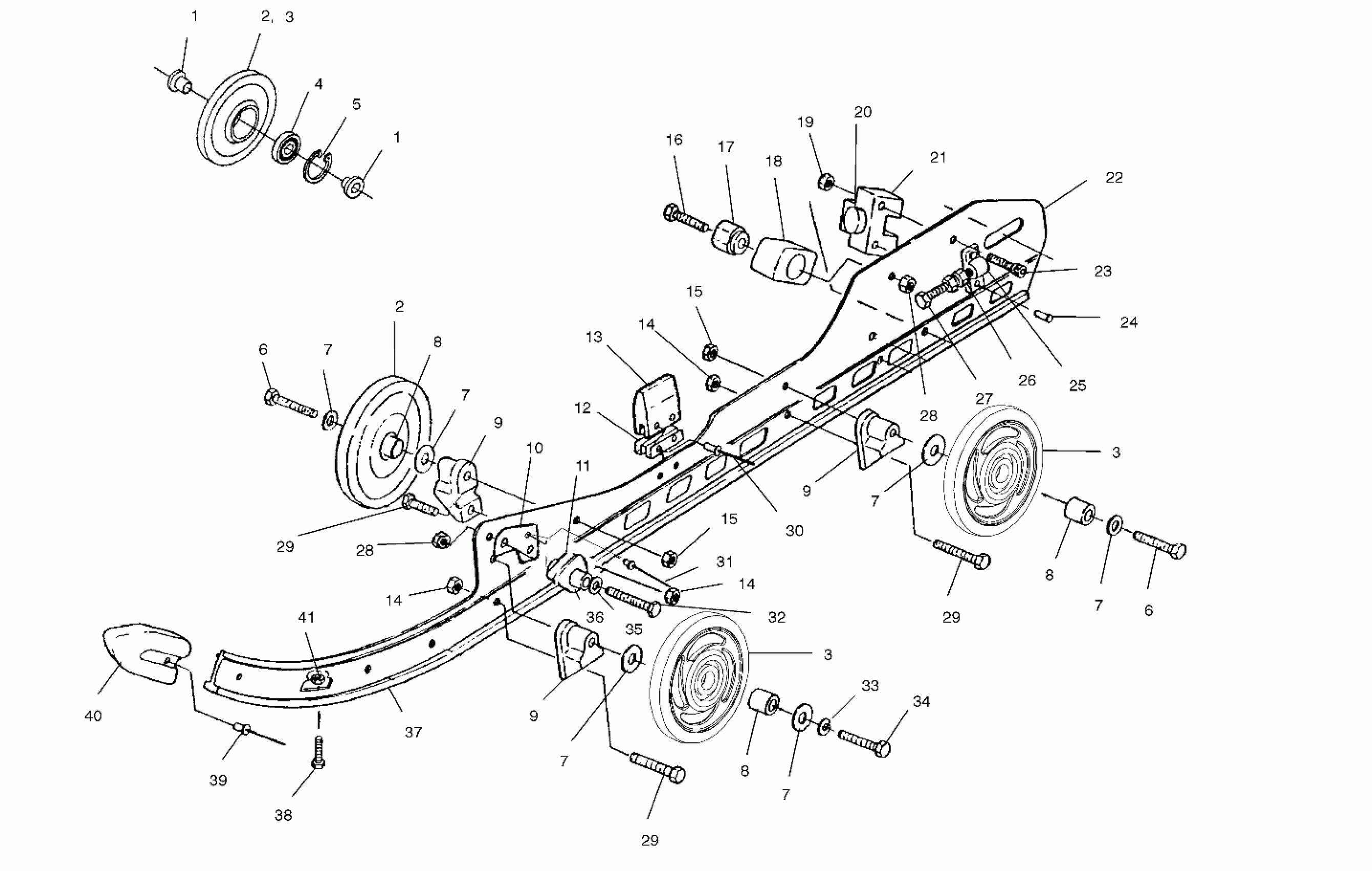

Polaris 700 XC DELUXE - S00SD7AS SUSPENSION - S00SD7AS (4954085408B011) Diagram

#

Description
Price

1

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

1

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

WHEEL, IDLER (Incl. 1-5)

1543018

$56.65

2

WHEEL, IDLER (Incl. 1-5)

1543018

$56.65

3

WHEEL,SCROLL,BOGIE,INDYRED

1594082-293

Unavailable

3

WHEEL,SCROLL,BOGIE,INDYRED

1594082-293

Unavailable

3

WHEEL,SCROLL,BOGIE,INDYRED

1594082-293

Unavailable

4

BEARING (1 per Wheel)

3514303

$11.99

5

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

6

BOLT(10)

7512538

$6.39

6

BOLT(10)

7512538

$6.39

7

WASHER, FLAT(10)

7555852

$2.39

7

WASHER, FLAT(10)

7555852

$2.39

7

WASHER, FLAT(10)

7555852

$2.39

7

WASHER, FLAT(10)

7555852

$2.39

7

WASHER, FLAT(10)

7555852

$2.39

7

WASHER, FLAT(10)

7555852

$2.39

8

SPACER, WHEEL

5333116

$7.99

8

SPACER, WHEEL

5333116

$7.99

8

SPACER, WHEEL

5333116

$7.99

9

SPACER

5630399

$11.99

9

SPACER

5630399

$11.99

9

SPACER

5630399

$11.99

10

PLATE,RAIL SUPPORT

5211786

$5.95

11

BLOCK,SPRING SLIDER

5431924

$10.65

12

BRKT,BUMPER SUPPORT

5240946

Unavailable

13

BUMPER,JOUNCE,RAIL,LT

5811065

Unavailable

14

NUT-LOCK(10)

7542439

$1.49

14

NUT-LOCK(10)

7542439

$1.49

14

NUT-LOCK(10)

7542439

$1.49

15

NUT, NYLOCK(10)

7542525

$4.79

15

NUT, NYLOCK(10)

7542525

$4.79

16

BOLT,(10)

7515545

$5.59

17

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

18

BUMPER,F.PIVOT ARM

5410925

$12.94

19

NUT, LOCK(10)

7542103

$5.59

20

BUMPER,R.PIVOT ARM

5410937

$5.75

21

BLOCK,R.PIVOT ARM STOP

5131111

Unavailable

22

RAIL,XTRA-12,LH,ASM. (Incl. 12,13, 24,25,30,39,40)

1541434

Unavailable

22

RAIL,XTRA-12,RH,ASM. (Incl. 12,13, 24,25,30,39,40)

1541435

$298.99

23

SCREW(10)

7515156

$3.99

24

RIVET,(50)

7621501

$2.39

25

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

26

NUT,TENSIONER ADJ.

5020943

$20.22

27

BOLT, ADJUSTER(10)

7515455

$29.99

28

NUT LOCK(10)

7542411

$3.19

28

NUT LOCK(10)

7542411

$3.19

29

BOLT(10)

7512404

$3.99

29

BOLT(10)

7512404

$3.99

29

BOLT(10)

7512404

$3.99

30

RIVET,(50)

7621488

$3.99

31

RIVET(50)

7661845

$1.49

32

BOLT(10)

7515538

$6.39

33

WASHER LOCK(10)

7553101

$3.99

34

BOLT(10)

7512508

$7.19

35

WASHER ,(10)

7555976

$3.99

36

Bushing

5010332

$11.99

37

SLIDER,INDY RED,(2) (Pair)

2871901-293

Unavailable

38

BOLT(10)

7515175

$3.99

39

RIVET(50)

7621435

$1.49

40

COVER,RAIL TIP

5433005

Unavailable

41

NUT-LOCK(10)

7542122

$1.49
