Description

Price

1

WINDSHIELD-GEN 2,FLR,16" SMOKE

5433166

Unavailable

2

RIVET,PLASTI-LOC.(50)

7621509

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

FOAM,PREFILTER,SRP

5811821

Unavailable

6

COVER-INTAKE,INSTR,HOUS,SRP

5433419

Unavailable

7

HEX NUT-NT0001 [Item NotAvailable]

3280321

$1.83

8

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

9

WASHER,FLAT

3280324

$0.51

10

CLAMP,BACK,GAUGE,2"

3280322

$5.43

11

BULB,TAILLIGHT(10)

4030024

$4.84

11

GAUGE-ELEC SHOCK,HYB,WHT FACE

3280336

$103.19

12

CUSHION,RUBBER,2"

3280323

$8.79

13

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

13

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

14

ASM-HOUSING,SRP,HI LEVEL,1 UP (Incl. Decals)

2632123

$148.79

15

BULB TAILLIGHT(10)

4030015

$4.03

15

TACH,6 P,WHITE W/FUEL LT

3280329

Unavailable

16

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

17

BULB TAILLIGHT(10)

4030015

$4.03

17

SPEEDO,5",120MPH,WHITE

3280328

Unavailable

18

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

19

CUSHION,FUELGAUGE,(2"),RUBBER

3280230

$3.41

20

BULB,TAILLIGHT(10)

4030024

$4.84

20

GUAGE,FUEL,2"BACKLIT

3280334

$131.99

20

Fuse

4060139

Unavailable

21

BRACKET,FUELGAUGE,(2")

3280229

Unavailable

22

Washer

3280231

$0.24

23

FOAM,HEADLIGHT/POD SEAL SRP

5811822

Unavailable

24

WASHER,SPLITLOCK

3280233

Unavailable

25

Nut

3280232

$1.49

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

HARNESS-HEADLIGHT,G2 COMMON Substituted by 2460913

2460732

Unavailable

28

CABLE,SPEEDO,90 IN.

3280341

$60.70

29

RIVET(50)

7621334

$1.49

30

CUP, HOOD LATCH,(10)

5430733

$4.84

31

SCREW(10)

7517441

$2.39

32

RETAINER,WINDSHIELD,(10)

5410970

$1.49

33

COVER-ACCESS,HEADLIGHT,SRP Substituted by 5433723

5433425

Unavailable

34

CLIP,ROSEBUD

4020149

$6.39

35

CLIP,PIGTAIL

5242893

$6.65

36

BURR,RIVET(50)

7555904

$1.49

37

RIVET,(50)3/16(.251-.375)

7661084

$1.49

38

CABLE,HOOD,HYB.

7080764

$28.32

39

POP RIVET(50)

7621402

$1.49

40

SCREW(10)

7512068

$2.39

41

DEFLECTOR-AIR

5243393

Unavailable

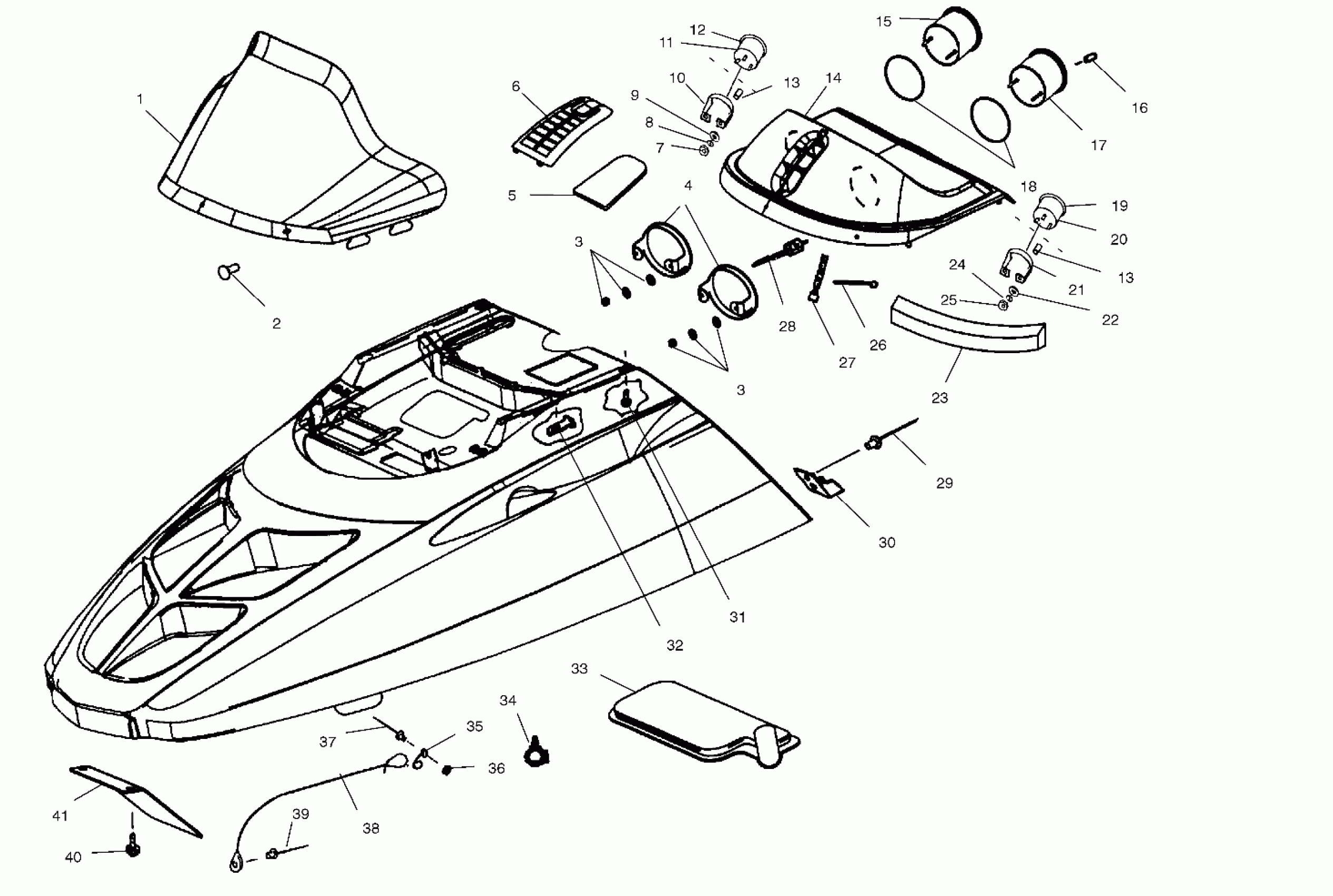

Polaris 700 XC DELUXE - S00SD7AS HOOD - S00SD7AS (4954085408A010) Diagram

WINDSHIELD-GEN 2,FLR,16" SMOKE

RIVET,PLASTI-LOC.(50)

WASHER,FLAT,(10)

Nut

WASHER,SPLIT LOCK

WASHER,FLAT,(10)

Nut

WASHER,SPLIT LOCK

BRKT,TACH/SPEEDO,5"

FOAM,PREFILTER,SRP

COVER-INTAKE,INSTR,HOUS,SRP

HEX NUT-NT0001 [Item NotAvailable]

WASHER, LOCK,(S.S.)(10)

WASHER,FLAT

CLAMP,BACK,GAUGE,2"

BULB,TAILLIGHT(10)

GAUGE-ELEC SHOCK,HYB,WHT FACE

CUSHION,RUBBER,2"

SPACER,BRKT,(FUELGAUGE)

SPACER,BRKT,(FUELGAUGE)

ASM-HOUSING,SRP,HI LEVEL,1 UP (Incl. Decals)

BULB TAILLIGHT(10)

TACH,6 P,WHITE W/FUEL LT

KNOB,TRIP ODOMETER,LH THD.

BULB TAILLIGHT(10)

SPEEDO,5",120MPH,WHITE

CUSHION,TACH/SPEEDO,RUBBER

CUSHION,FUELGAUGE,(2"),RUBBER

BULB,TAILLIGHT(10)

GUAGE,FUEL,2"BACKLIT

Fuse

BRACKET,FUELGAUGE,(2")

Washer

FOAM,HEADLIGHT/POD SEAL SRP

WASHER,SPLITLOCK

Nut

CABLE-TIE,DIA12-50MM,WTHR-RES.

HARNESS-HEADLIGHT,G2 COMMON Substituted by 2460913

CABLE,SPEEDO,90 IN.

RIVET(50)

CUP, HOOD LATCH,(10)

SCREW(10)

RETAINER,WINDSHIELD,(10)

COVER-ACCESS,HEADLIGHT,SRP Substituted by 5433723

CLIP,ROSEBUD

CLIP,PIGTAIL

BURR,RIVET(50)

RIVET,(50)3/16(.251-.375)

CABLE,HOOD,HYB.

POP RIVET(50)

SCREW(10)

DEFLECTOR-AIR
