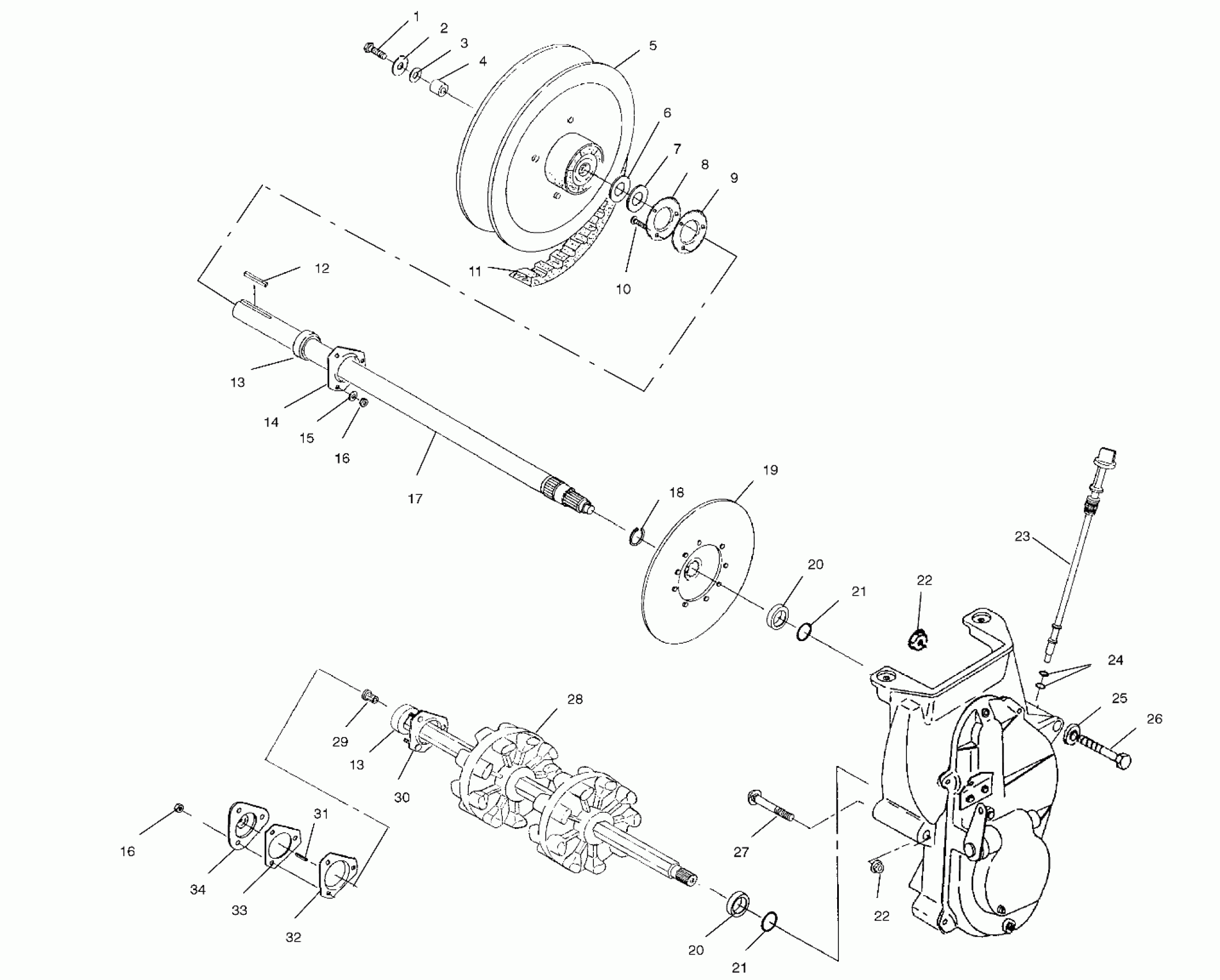

Polaris 700 XC DELUXE - S00SD7AS DRIVE TRAIN - S00SD7AS (4954085408B009) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER

5020291

Unavailable

5

Asm., Driven Clutch (See Driven Clutch Pg. C4, Ref. 9)

-------

Unavailable

6

BUSHING(10)

7555864

Unavailable

7

WASHER SPECIAL(10)

7556509

Unavailable

8

FITTING,LUB/VEN(10)

7080561

$4.79

8

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

9

GASKET,JACKSHAFT,BLK.

5811095

$2.41

10

BOLT(10)

7512377

$4.79

11

BELT, DRIVE(5)

3211065

$114.99

12

KEY(10)

7721116

$12.94

13

BEARING

3514525

$31.99

13

BEARING

3514525

$31.99

14

FLANGETTE

5222751

$16.44

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

JACKSHAFT ASM,15 SPL (Incl. 13,18)

1332207

Unavailable

18

RING, RETAINING(10)

7710422

$3.99

19

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

20

SLEEVE, SEAL

5020588

$23.99

20

SLEEVE, SEAL

5020588

$23.99

21

O RING,(10)

5410613

$1.99

21

O RING,(10)

5410613

$1.99

22

NUT(10)

7542423

$3.99

22

NUT(10)

7542423

$3.99

23

DIPSTICK Substituted by 1332143

5431419

Unavailable

24

O-RING

5410675

$1.60

25

WASHER WROUGHT(10)

7558403

$4.79

26

BOLT(10)

7515485

$3.03

27

BOLT(10)

7515428

$4.79

28

DRIVESHAFT ASM,2 DR WIDE,XHS (Incl. 13,29,30)

1590284

Unavailable

29

BUSHING METAL SPEEDO

3280019

$11.99

30

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

31

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

32

FLANGETTE-OFFSET,W/HOLE

5243529

$13.75

33

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

34

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
