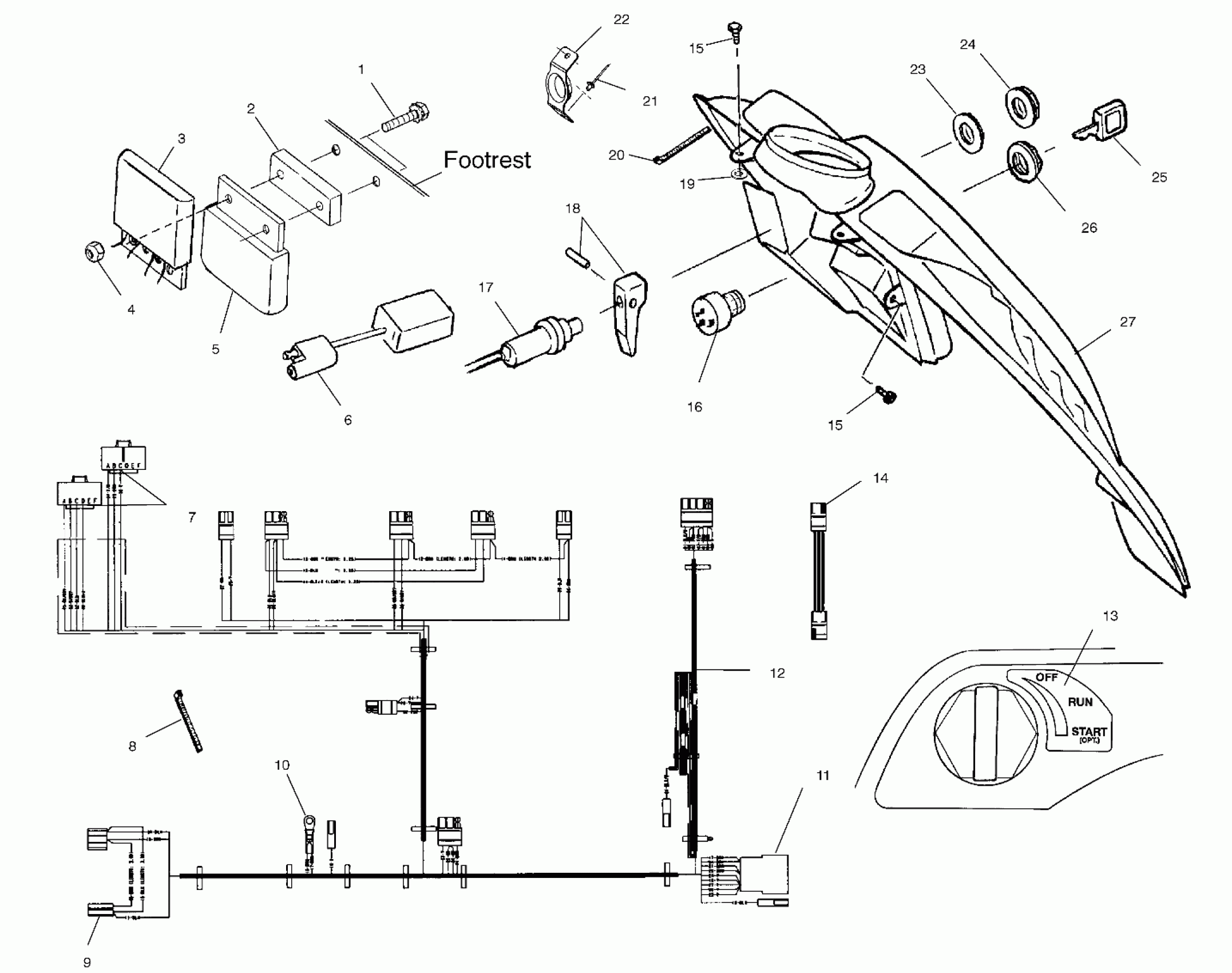

Polaris 700 XC DELUXE - S00SD7AS CONSOLE - S00SD7AS (4954085408A013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

MODULE,CONTROL,ELECSHK.

4010142

Unavailable

4

NUT(10)

7541925

$1.49

5

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

6

CAPACITOR,ELECSHK.

4010143

$111.99

7

SOCKET-PACKARD#12047767

4010192

Unavailable

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

HOUSING

4020063

$3.19

10

Terminal, Ring

4020092

Unavailable

11

Housing w/Receptacle

4020057

$3.51

12

HARNESS-MAIN,GEN2,HIGH LVL,COM

2460755

$257.99

13

DECAL,IGN,OFF/RUN/START

7078603

Unavailable

14

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

15

SCREW(10)

7515199

$1.49

15

SCREW(10)

7515199

$1.49

16

KIT,IGN.SWITCH

2200358

$76.89

17

CABLE,CHOKE (Incl. 18,24)

7080636

Unavailable

18

KIT-CHOKE CONTROL

2200188

$24.27

19

WASHER,NYLON

7555932

$2.39

20

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

21

RIVET, POP(50)

7621330

$1.49

22

GUIDE-RECOIL

5243049

$9.70

23

WASHER-LOCK(10)

7571610

$3.99

24

Nut

7080229

$19.99

25

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

26

NUT,IGNITION

7547035

$8.79

27

CONSOLE-HYB,RACER,W/REV Substituted by 5433692

5433543

Unavailable
