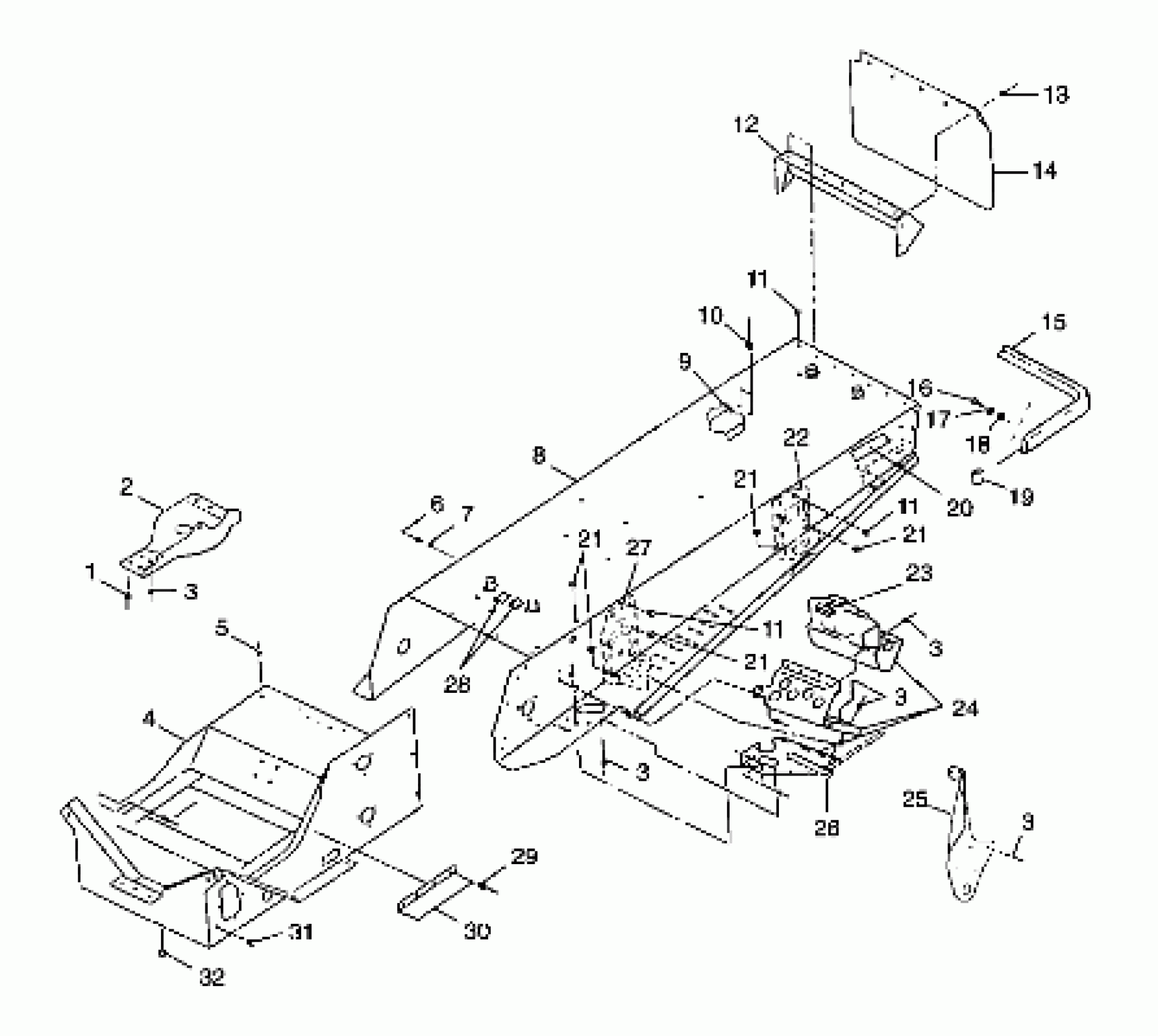

Polaris 700 XC - 099SB7AS TUNNEL - 099SB7AS (4948494849a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD,C/C.SUMP,TUNNEL Substituted by 5243419

5241915

$20.48

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

BULKHEAD,CRC,HYB,BLK. Substituted by 1013102-067

1012665-067

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

7

SNAP-MALE(10)

7080227

Unavailable

8

TUNNEL,LIQ,X-10,BLK. Substituted by 1012670-067

1012693-067

Unavailable

9

Cooler, Wear Strip (See Footnote) (See Cooling System Pg. B4, Ref. 8)

-------

Unavailable

10

RIVET,3/16X.402(50)

7621432

$1.49

11

RIVET,SEMI-TUBE,(50)

7661841

$1.49

11

RIVET,SEMI-TUBE,(50)

7661841

$1.49

11

RIVET,SEMI-TUBE,(50)

7661841

$1.49

12

PANEL,TUNNELBACK,121,LW

5241946

Unavailable

13

POP RIVET(50)

7621418

$1.49

14

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

15

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

16

BOLT(10)

7512240

$3.99

17

LOCK WASHER(10)

7552801

$1.59

18

WASHER(10)

7558301

$1.49

19

CAP,BUMPER

5431995-070

Unavailable

20

REFLECTOR ASM,RED

2670133

$5.75

21

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

21

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

21

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

21

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

22

BRKT,LH,R.SUSP,BLK.

5241954-067

Unavailable

22

BRKT,RH,R.SUSP,BLK.

5241955-067

$22.23

23

EXTRUSION,CLUTCHGUARD

5521238

$6.46

24

FOOTREST ASM,LH,BLK Substituted by 1012898

1012666

Unavailable

24

FOOTREST ASM,RH,BLK Substituted by 1012899

1012667

Unavailable

25

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

25

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

26

SUPPORT,LH,TUNNEL,BLK

1012621-067

Unavailable

26

SUPPORT,RH,TUNNEL,BLK

1012622-067

$23.99

27

BRKT,LH,FR.SUSP.MTG,BLK.

5242612-067

Unavailable

27

BRKT,RH,FR.SUSP.MTG,BLK.

5242613-067

Unavailable

28

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

29

RIVET(50)

7621452

$1.49

30

GUARD,ADAPTER GUIDE

5222857

$12.94

31

PLUG, HOLE(10)

7080416

$5.65

32

PLUG-HOLE

7080398

$4.84
