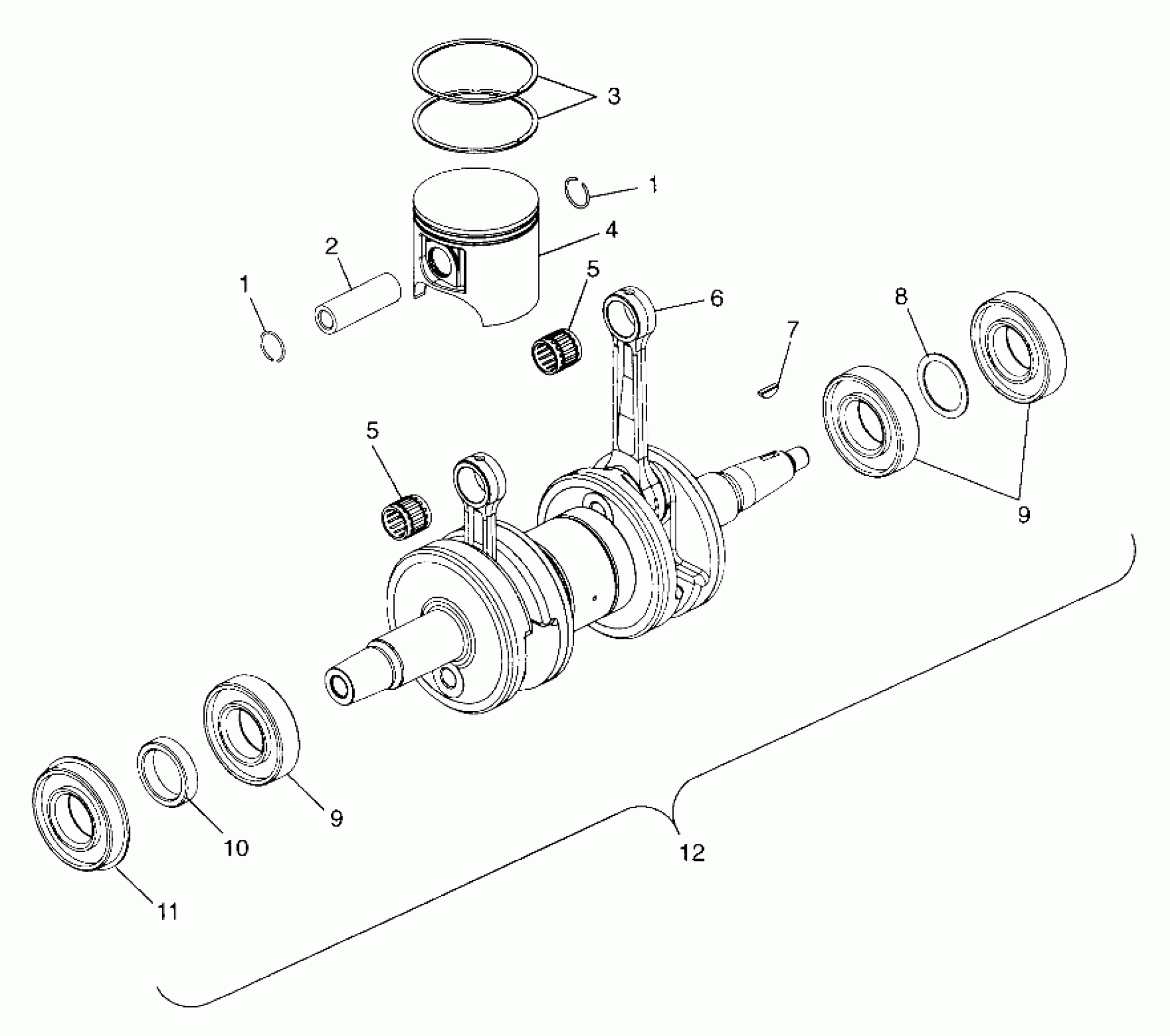

Polaris 700 XC - 099SB7AS PISTON and CRANKSHAFT - 099SB7AS (4948494849c009) Diagram

#

Description

Price

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

PIN, PISTON

-------

Unavailable

3

KIT,RINGS,81MM,SNO

2200895

$66.65

4

KIT,PISTON ASM. (Incl. 1,2,3)

2201358

Unavailable

5

BEARING,CONNECT.ROD

3584001

Unavailable

5

BEARING,CONNECT.ROD

3584001

Unavailable

6

KIT,CONN.ROD,MAPE (See Footnote) (Incl. Rod, Pin, Bearing, Washers)

2201022

$305.56

7

KEY,WOODRUFF(10)

7721117

$24.99

8

BUSHING(10)

7555905

$3.99

9

BEARING,BALL

3585503

$31.99

9

BEARING,BALL

3585503

$31.99

10

SPACER,CRANKSHAFT

5131899

Unavailable

11

BEARING,BALL,EXTRACE

3514310

$39.99

12

CRANKSHAFT,2CYL,SNO,CGUIDE (Incl. 8-11)

2201360

$1,130.95
