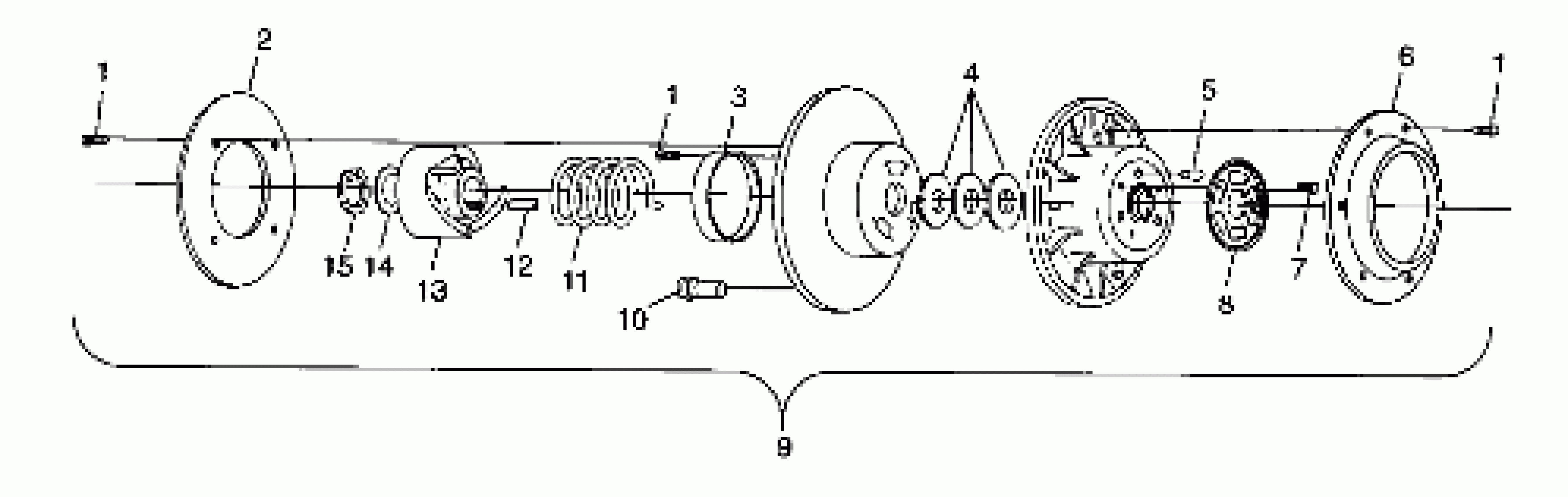

Polaris 700 XC - 099SB7AS DRIVEN CLUTCH - 099SB7AS (4948494849c001) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE

5210749

$30.99

3

BUSHING,D.U.

3569803

Unavailable

4

WASHER(10) (.03)

7556804

Unavailable

4

WASHER(10) (.02)

7555898

Unavailable

4

WASHER(10) (.025)

7556076

Unavailable

4

WASHER,DRIVE CLUTCH(10) (.075)

7555865

Unavailable

5

PIN, CLUTCH

5020653

$34.99

6

CAP DRIVEN

5230101

Unavailable

7

SCREW(10)

7515133

$3.99

8

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

9

CLUTCH,DRIVEN,36 D,MOD Substituted by 1321947 (Incl. 1-15)

1322178

Unavailable

10

BUTTON-RAMP,(10)

5430466

$6.46

11

SPRING,CLUTCH,SVR.

7041499

$56.65

12

KEY SQUARE(10)

7721103

$5.65

13

RAMP,STAT,36DEG,MOD.

5130717

$199.99

14

WASHER(10)

7556804

$1.49

15

RING,RETAINING(10)

7714804

$9.59
