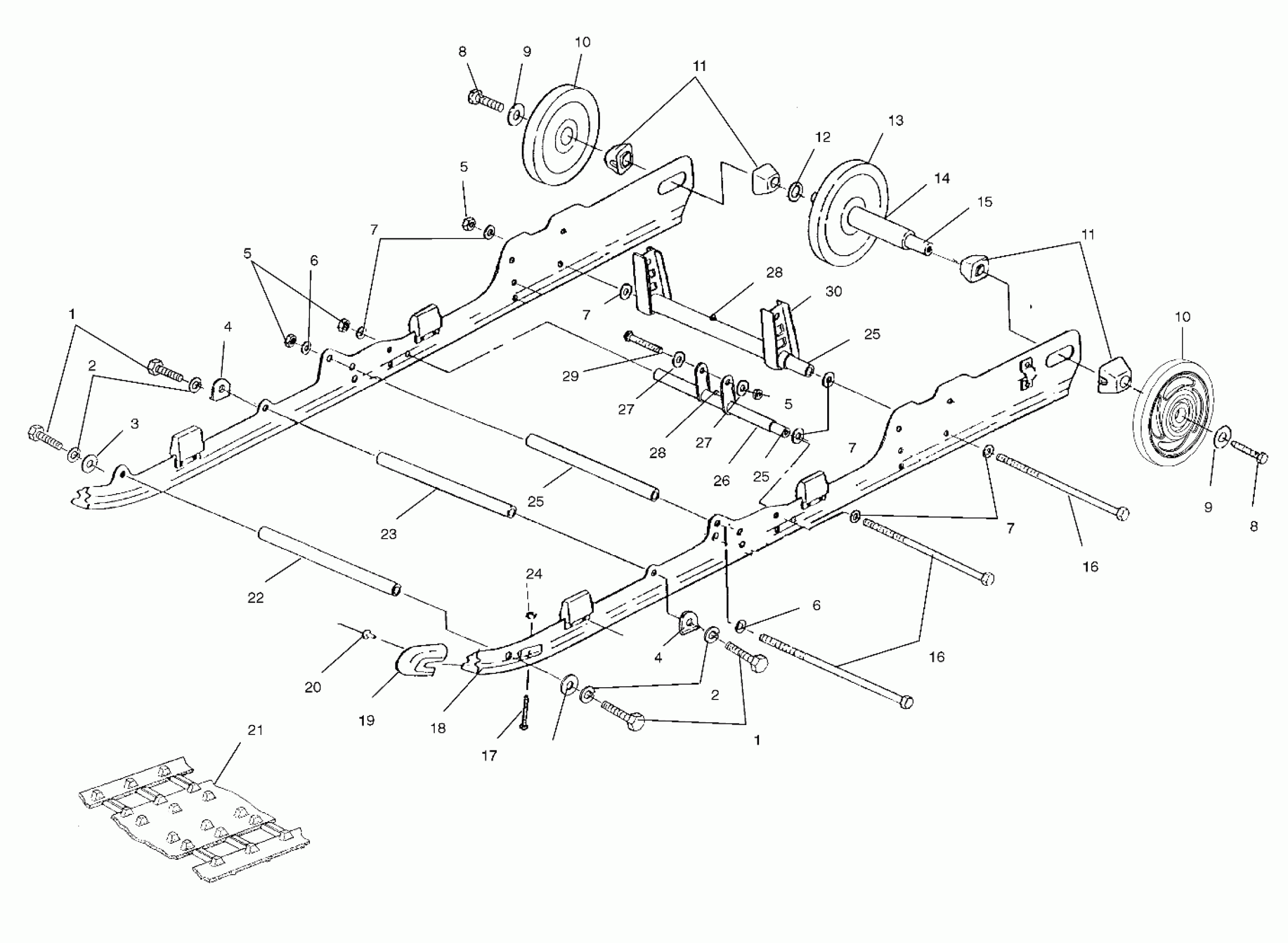

Polaris 700 SKS - S02SS7CS SUSPENSION - S02SS7CS/CE (4969396939B12) Diagram

#

Description
Price

1

Screw

7517247

$3.19

1

Screw

7517247

$3.19

2

Washer, Spring Lock

7552603

$1.49

2

Washer, Spring Lock

7552603

$1.49

3

Washer

7555923

$2.39

4

Bracket, Shaft Support

5241443

Unavailable

4

Bracket, Shaft Support

5241443

Unavailable

5

Nut, FLEXLOC

7542411

$3.19

5

Nut, FLEXLOC

7542411

$3.19

5

Nut, FLEXLOC

7542411

$3.19

6

Washer, Flat

7555806

$1.49

6

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

8

BOLT

7517731

$1.49

8

BOLT

7517731

$1.49

9

WASHER

7556130

$6.39

9

WASHER

7556130

$6.39

10

RING-RETAINING

7710444

$8.79

10

Bearing

3514012

Unavailable

10

Wheel, Idler, Indy Red

1590303-293

$48.56

10

RING-RETAINING

7710444

$8.79

10

Bearing

3514012

Unavailable

10

Wheel, Idler, Indy Red

1590303-293

$48.56

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

12

BUSHING

7555918

$1.59

13

RING-RETAINING

7710444

$8.79

13

Wheel

1594087

$72.84

13

Bearing

3514012

Unavailable

14

SPACER-IDLER, LONG

5333285

$11.99

15

SHAFT, IDLER

5020744

$59.99

16

Screw

7517353

Unavailable

16

Screw

7517353

Unavailable

17

Screw (See Rail Mounting-Suspension Pg. B11, Ref. 26)

-------

Unavailable

18

Hi-Fax

5521452

$40.46

19

Cover, Rail Tip (See Rail Mounting-Suspension Pg. B11, Ref. 27)

-------

Unavailable

20

Rivet, Pop (See Rail Mounting. Pg. B11, Ref. 28)

-------

Unavailable

21

Clip, Slide

5222839

Unavailable

21

CLIP, GUIDE

5222840

Unavailable

21

Track

5411955

Unavailable

22

Shaft, Pivot Arm

5020723

$29.99

23

Shaft

5020724

$29.99

24

Nut x (See Rail Mounting. Pg. B11, Ref. 28)

-------

Unavailable

25

SHAFT

5333404

$24.27

25

SHAFT

5333404

$24.27

25

SHAFT

5333404

$24.27

26

Arm, Shock Pivot

1541001-067

$43.65

27

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

27

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

28

Fitting, Lubrication

7080433

$1.49

28

Fitting, Lubrication

7080433

$1.49

29

SCREW

7515472

$2.39

30

Arm, Rear Pivot

1541241-067

$40.79
