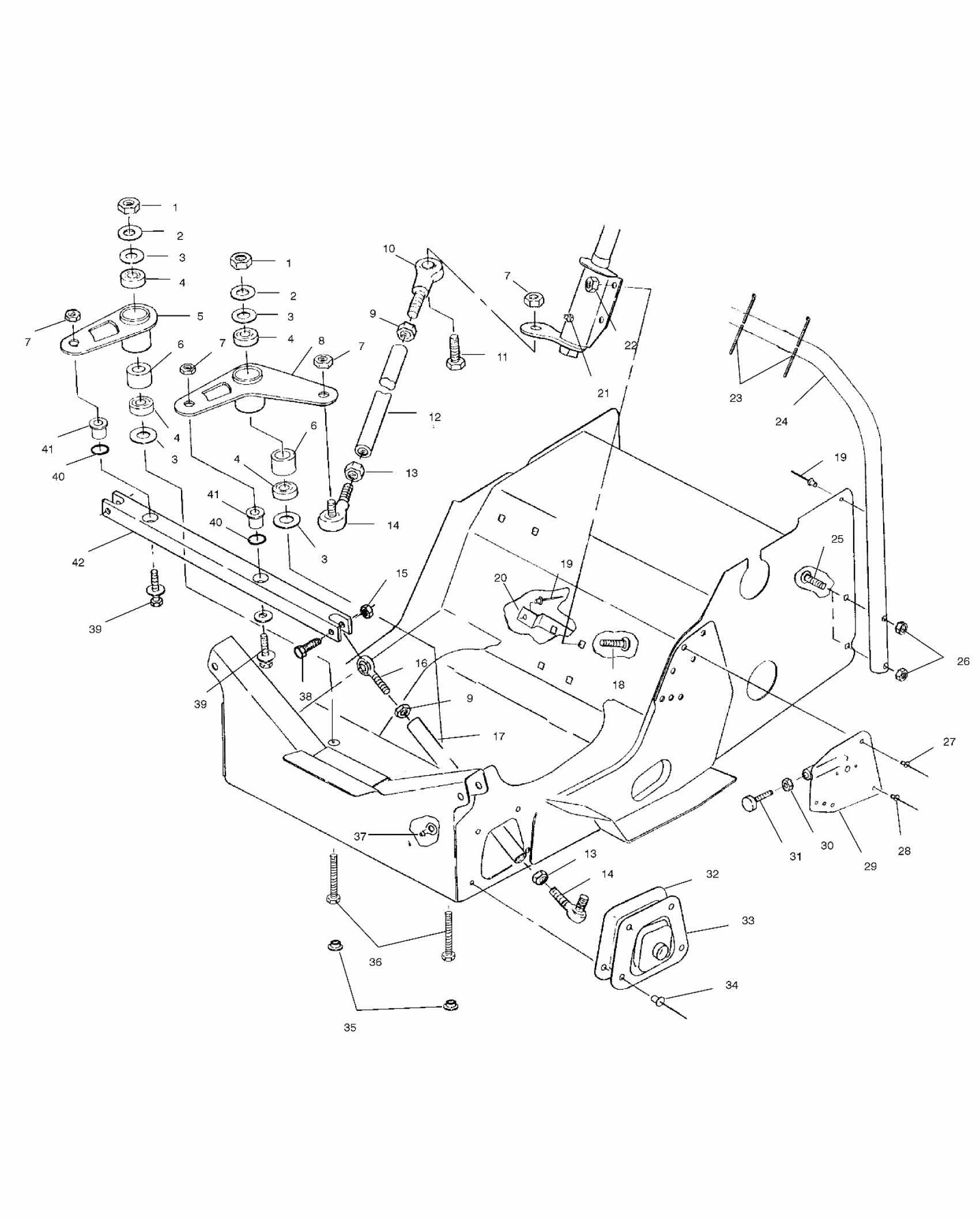

Polaris 700 SKS - S02SS7CS STEERING - S02SS7CS/CE (4969396939B01) Diagram

#

Description
Price

1

Nut, FLEXLOC

7547029

Unavailable

1

Nut, FLEXLOC

7547029

Unavailable

2

WASHER

7555721

$1.49

2

WASHER

7555721

$1.49

3

WASHER, THRUST

7558702

$1.59

3

WASHER, THRUST

7558702

$1.59

3

WASHER, THRUST

7558702

$1.59

3

WASHER, THRUST

7558702

$1.59

4

Bearing, Ball

3514320

$15.99

4

Bearing, Ball

3514320

$15.99

4

Bearing, Ball

3514320

$15.99

4

Bearing, Ball

3514320

$15.99

5

Asm., Idler Arm (Incl. 4,6)

1820577

$74.27

6

Bushing

5010417

$6.63

6

Bushing

5010417

$6.63

7

Nut, FLEXLOC

7542403

$3.99

7

Nut, FLEXLOC

7542403

$3.99

7

Nut, FLEXLOC

7542403

$3.99

7

Nut, FLEXLOC

7542403

$3.99

8

Asm., Pitman Arm (Incl. 4,6)

1820575

Unavailable

9

NUT, LH

7542424

$1.49

9

NUT, LH

7542424

$1.49

10

Rod End, LH

7060164

$48.56

11

Bolt

7512404

$3.99

12

Rod, Drag Link

5333411

Unavailable

13

NUT

7542401

$2.39

13

NUT

7542401

$2.39

14

ROD END, RH

7060174

$48.56

14

ROD END, RH

7060174

$48.56

15

Nut, FLEXLOC

7542411

$3.19

16

ROD END, LH

7060166

$48.56

17

Tie Rod

5020970-244

Unavailable

18

Bolt, Carriage

7517428

$2.39

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

20

Bracket, Bolt Retainer

5241997

$1.44

21

FITTING-LUBRICATION 1/4-28

7080424

$4.79

22

Nut, FLEXLOC

7542303

$6.39

23

CABLE TIE, RELEASABLE

7080804

$3.22

24

Hoop, Steering

1013153-067

$39.67

25

Bolt, Carriage

7512275

$3.99

26

Nut, FLEXLOC

7542103

$5.59

27

Rivet

7661643

Unavailable

28

Rivet

7661079

Unavailable

29

Stop, Torque

1012618

Unavailable

30

NUT

7542404

$1.59

31

Stop, Torque

3110078

$36.41

32

Boot, Tie Rod

5411249

Unavailable

33

Plate, Boot

5211796-067

$31.35

34

Rivet

7621323

$1.49

35

Plug, Hole

7080689

$5.75

36

Screw

7517402

$3.59

37

CLIP, ROSEBUD

4020139

$4.79

38

Bolt

7515434

Unavailable

39

Screw

7517574

Unavailable

39

Screw

7517574

Unavailable

40

O-RING

5411220

$6.46

40

O-RING

5411220

$6.46

41

Tube, Spacer

5010384

Unavailable

41

Tube, Spacer

5010384

Unavailable

42

Rack, Steering

1820691

Unavailable
