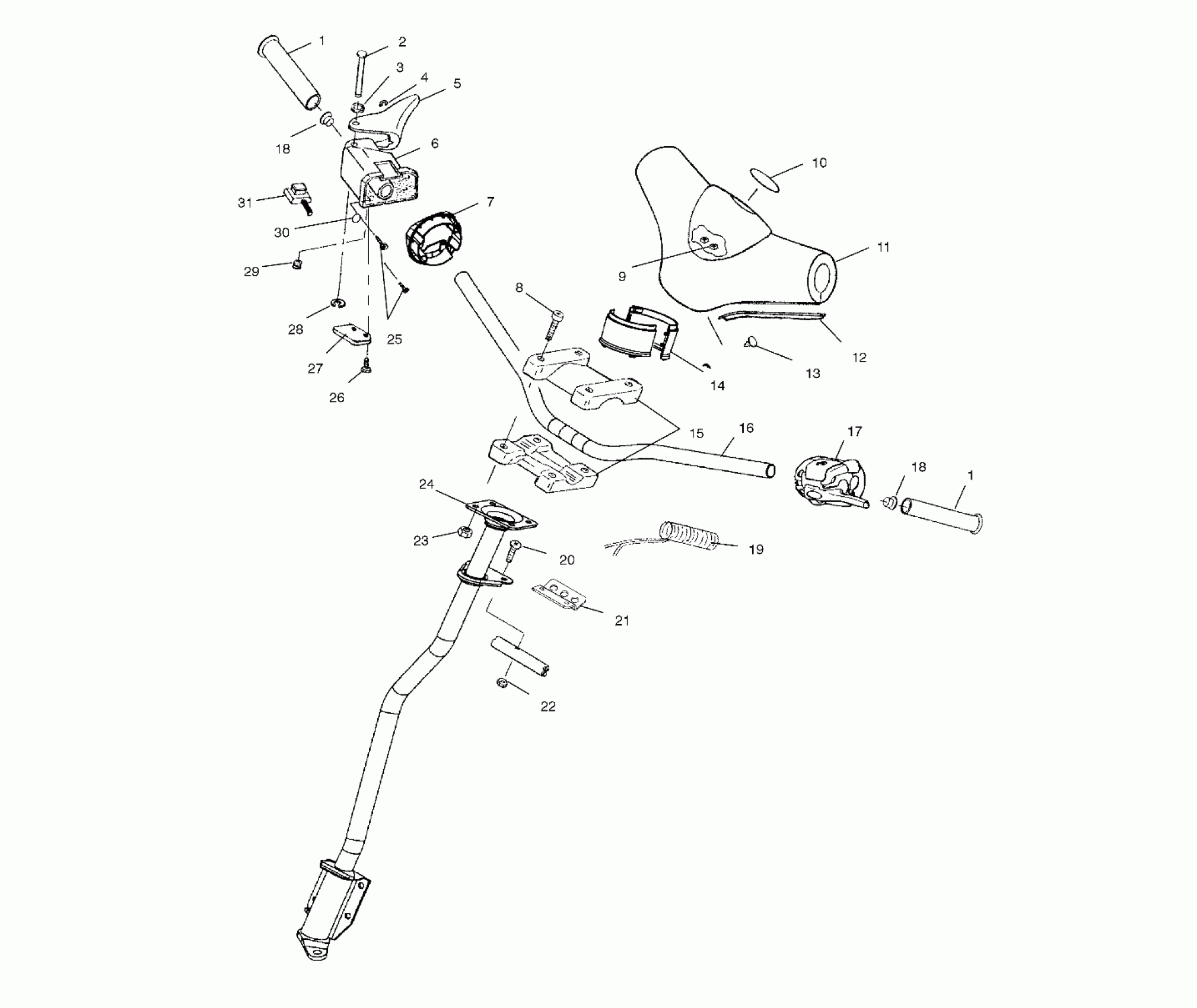

Polaris 700 SKS - S02SS7CS STEERING/HANDLEBAR - S02SS7CS/CE (4969396939B05) Diagram

#

Description
Price

1

Grip, Handlebar

5432634

$24.27

1

Grip, Handlebar

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

WASHER

7555730

$3.99

4

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

5

LEVER, THROTTLE

5432970

$29.03

5

Lever w/Heater

2010171

$84.98

6

BLOCK, THROTTLE/BRAKE

5431592

$49.99

7

Adaptor, Block

5433345

$15.99

8

SCREW

7517238

$4.79

9

Nut, Push-On

7670106

$2.39

10

Emblem, Star

5434179

Unavailable

11

Cover, Handlebar

5433159-070

$77.99

12

Slide, Cover

5433160-070

$28.32

13

Clip, Dart

4010287

$3.99

14

Boot, Handlebar

5433331

Unavailable

15

Block, Handlebar

5630187-067

$44.99

16

Handlebar

1820666-067

$109.99

17

Asm., Control, LH (See Brake Pg. B4, Ref. 12)

-------

Unavailable

18

PLUG, OVERFLOW

5431096

$2.02

18

PLUG, OVERFLOW

5431096

$2.02

19

Heater, Grip, Hi/Lo/Med

2460677

$60.70

20

SCREW

7517377

$4.79

21

Bracket, Tank Retention

5242553

Unavailable

22

Nut, FLEXLOC

7542103

$5.59

23

Nut, Nylok

7542122

$1.49

24

Post, Steering

1820651-067

Unavailable

25

Screw

7511848

$3.99

26

Screw

7511858

$3.99

27

HOLDER, WIRE

5432261

$24.27

28

RING-RETAINING EXTERNAL

7710401

$3.99

29

SCREW, SET

7512465

$3.99

30

WASHER

7555727

$1.49

31

Switch, Auxiliary Shut-Off

4110106

$94.99
