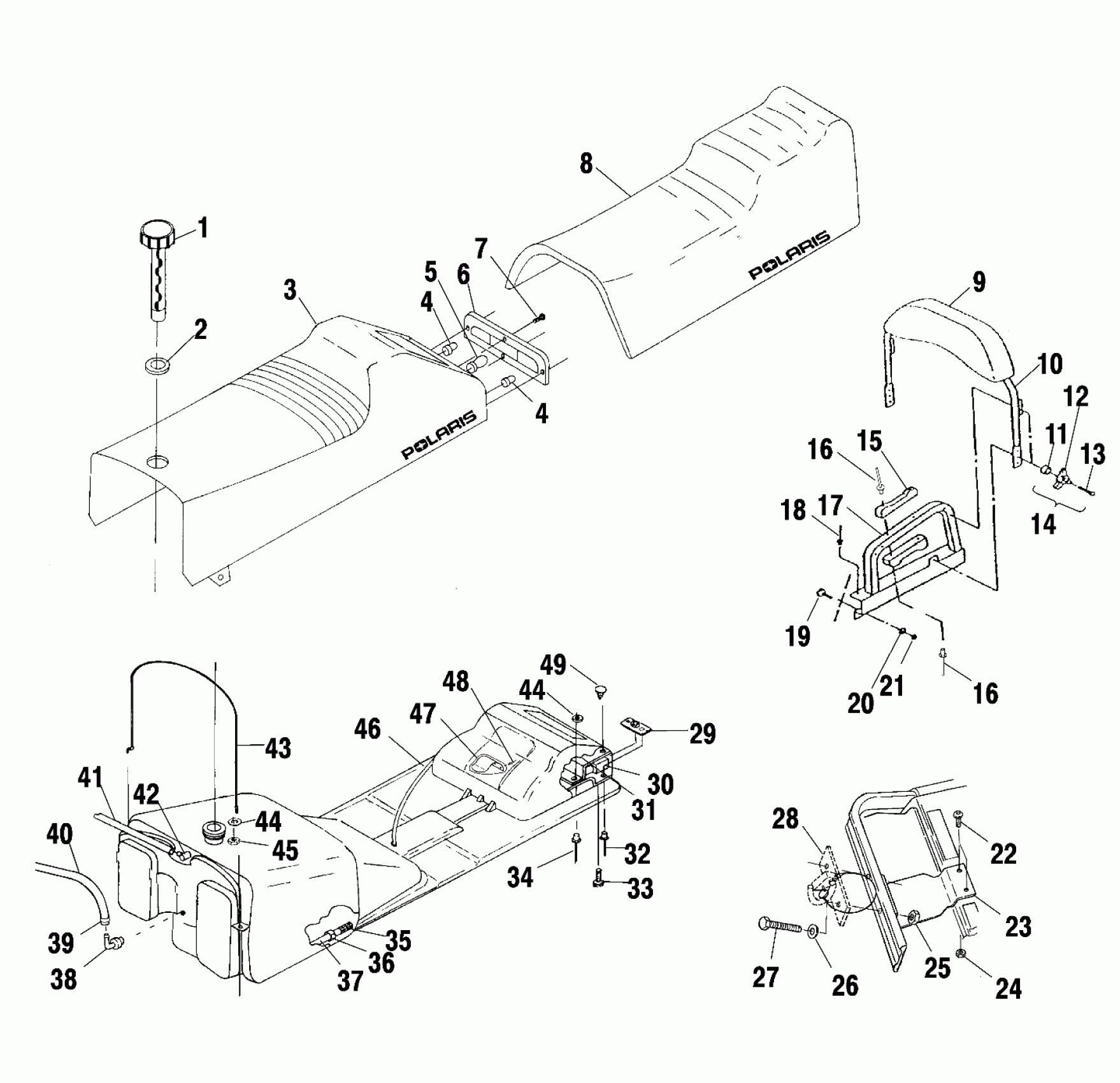

Polaris 700 SKS - S02SS7CS SEAT and GAS TANK - S02SS7CS/CE (4969396939A05) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

Cap w/Gauge, Gas

2511248

$44.51

2

Grommet

5410842

Unavailable

3

Asm., Seat Cushion, Long (Incl. 4-38,41-43)(US)

2682727

Unavailable

3

Cover, Seat, Long (US)

2682745

Unavailable

4

Bulb, Taillight

4030024

$4.84

4

Bulb, Taillight

4030024

$4.84

5

Bulb, Brakelight

4030045

Unavailable

6

Lens

5430423

Unavailable

7

Screw

7511840

Unavailable

8

Asm., Seat Cushion (Incl. 4-38,41-43)(Euro)

2682615

$504.99

8

Cover, Seat (Euro)

2682616

Unavailable

9

Cover, Backrest (Euro)

2681265

$257.13

10

Asm. Backrest (Incl. 9)(Euro)

2681356

$284.75

11

Spacer, Backrest Knob (Euro)

5431285

Unavailable

12

Knob, Backrest

5630386-067

$20.22

13

Screw (Euro)

7515306

Unavailable

14

Asm., Knob (Incl. 11,13)(Euro)

2670130

Unavailable

15

Grip, Hand (Euro) (Euro)

5433383

$19.83

16

Rivet (Euro) (Euro)

7661059

$1.49

16

Rivet (Euro) (Euro)

7661059

$1.49

17

Bar, Grab, LH (Euro) (Euro)

1012869-067

$53.59

17

Bar, Grab, RH (Euro) (Euro)

1012870-067

$53.59

18

RIVET-3/16-.090-.290 (Euro)

7661637

$1.49

19

Screw (Euro) (Euro)

7512371

$4.79

20

WASHER-.344X.688X.063 FL-Y (Euro)

7558402

$1.49

21

NUT-5/16-18 NYLOK-Y (Euro)

7542324

$1.49

22

Screw (Euro) (Euro)

7517299

Unavailable

23

Plate, Hitch Brace (Euro) (Euro)

5242099-067

$28.95

24

Nut, Flange (Euro) (Euro)

7542151

$3.99

25

Nut, Nylok (Euro) (Euro)

7542439

$1.49

26

Washer (Euro) (Euro)

7555928

Unavailable

27

Screw (Euro) (Euro)

7512410

Unavailable

28

Asm., J-Hitch (Euro) (Euro)

1012597

Unavailable

29

Retainer, Weld Nut

7542147

$17.59

30

Housing, Taillight

5433341

Unavailable

31

Cover, Taillight Protector

5431436

$21.43

32

Rivet

7621301

$3.99

33

Screw

7517371

Unavailable

34

Rivet

7621464

$3.99

35

Pick-Up w/Filter, Fuel

7052301

$12.94

36

RING, COMPRESSION

7080402

$1.60

37

LINE, FUEL

8350019-600

Unavailable

38

Fitting, Outlet, Double

7052143

Unavailable

39

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

40

Tubing

8350018-600

Unavailable

41

LINE, FUEL

8450061-600

Unavailable

42

Fitting, 90 Degree

7052095

$4.79

43

Cable, Tank Retention

7080559

Unavailable

44

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

44

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

45

Nut, Nylok

7541925

$1.49

46

Harness, Taillight

2460398

Unavailable

47

Retainer, Tool Pouch Clip

5243185

$10.63

48

RIVET

7621472

$1.49

49

Clip, Dart

7670097

Unavailable
