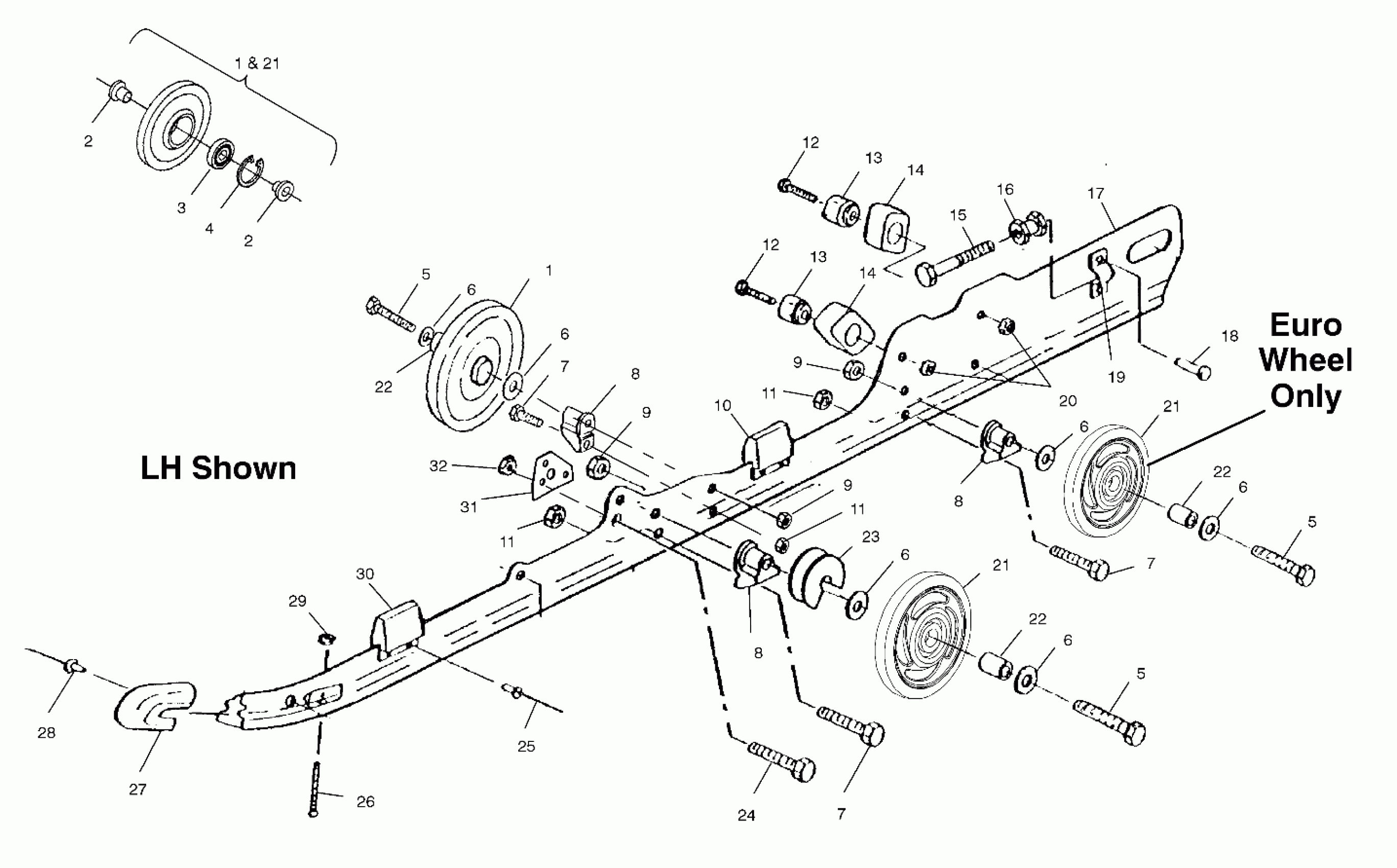

Polaris 700 SKS - S02SS7CS RAIL MOUNTING (SUSPENSION) - S02SS7CS/CE (4969396939B11) Diagram

#

Description
Price

1

Wheel w/Insert (Incl. 2,3,4)

1543018

$56.65

1

Wheel w/Insert (Incl. 2,3,4)

1543018

$56.65

2

Insert, Wheel (2 per Wheel)

5431531

$9.70

2

Insert, Wheel (2 per Wheel)

5431531

$9.70

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

Bolt (Euro Qty. 6)

7512538

$6.39

5

Bolt (Euro Qty. 6)

7512538

$6.39

5

Bolt (Euro Qty. 6)

7512538

$6.39

6

Washer, Flat (Euro Qty. 12)

7555852

$2.39

6

Washer, Flat (Euro Qty. 12)

7555852

$2.39

6

Washer, Flat (Euro Qty. 12)

7555852

$2.39

6

Washer, Flat (Euro Qty. 12)

7555852

$2.39

6

Washer, Flat (Euro Qty. 12)

7555852

$2.39

7

Bolt (Euro Qty. 6)

7512404

$3.99

7

Bolt (Euro Qty. 6)

7512404

$3.99

7

Bolt (Euro Qty. 6)

7512404

$3.99

8

Spacer, Bogie Wheel (Euro Qty. 6)

5630399

$11.99

8

Spacer, Bogie Wheel (Euro Qty. 6)

5630399

$11.99

8

Spacer, Bogie Wheel (Euro Qty. 6)

5630399

$11.99

8

Spacer, Bogie Wheel (Euro Qty. 6)

5630399

$11.99

9

Nut, Nylok (Euro Qty. 6)

7542525

$4.79

9

Nut, Nylok (Euro Qty. 6)

7542525

$4.79

9

Nut, Nylok (Euro Qty. 6)

7542525

$4.79

10

ANGLE, REINFORCEMENT, BUMPER

5222629

$13.75

10

Bumper, Suspension

5811097

Unavailable

11

Nut, Nylok (Euro Qty. 6)

7542439

$1.49

11

Nut, Nylok (Euro Qty. 6)

7542439

$1.49

11

Nut, Nylok (Euro Qty. 6)

7542439

$1.49

12

Screw

7515545

$5.59

12

Screw

7515545

$5.59

13

MOUNT, BUMPER

5131113

$28.32

13

MOUNT, BUMPER

5131113

$28.32

14

BUMPER, PIVOT ARM

5410925

$12.94

14

BUMPER, PIVOT ARM

5410925

$12.94

15

Bolt

7517227

$7.19

16

Nut, Tension Adjust

7542404

$1.59

17

Rail, Xtra-10, LH (Incl. 10,18,19,25,27,28,30)

1541155

Unavailable

17

Rail, Xtra-10, RH (Incl. 10,18,19,25,27,28,30)

1541156

$319.99

17

Rail, Xtra 10, LH (Euro) (Incl. 10,18,19,25,27,28,30)

1541517

$267.99

17

Rail, Xtra-10, RH (Euro) (Incl. 10,18,19,25,27,28,30)

1541518

$267.99

18

Rivet, Flat Head

7621501

$2.39

19

Block, Idler Bolt

5130530

$32.37

20

Nut, FLEXLOC

7542411

$3.19

21

Wheel, Bogie (Incl. 2,3,4)(Euro Qty. 4)

1594082-293

Unavailable

21

Wheel, Bogie (Incl. 2,3,4)(Euro Qty. 4)

1594082-293

Unavailable

21

Wheel, Bogie (Incl. 2,3,4)(Euro Qty. 4)

1594082-293

Unavailable

22

Spacer (Euro Qty. 6)

5333116

$7.99

22

Spacer (Euro Qty. 6)

5333116

$7.99

22

Spacer (Euro Qty. 6)

5333116

$7.99

23

Roller, Spring

5433575

Unavailable

24

SCREW

7512457

$3.99

25

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

26

Screw

7515175

$3.99

27

Cover, Rail Tip

5433005

Unavailable

28

RIVET

7621435

$1.49

29

Nut, Nylok

7542122

$1.49

30

ANGLE, REINFORCEMENT, BUMPER

5222629

$13.75

30

BUMPER, SUSPENSION

5810554

$7.27

31

Plate, Rail Support

5211843

Unavailable

32

Nut, FLEXLOC

7542403

$3.99
