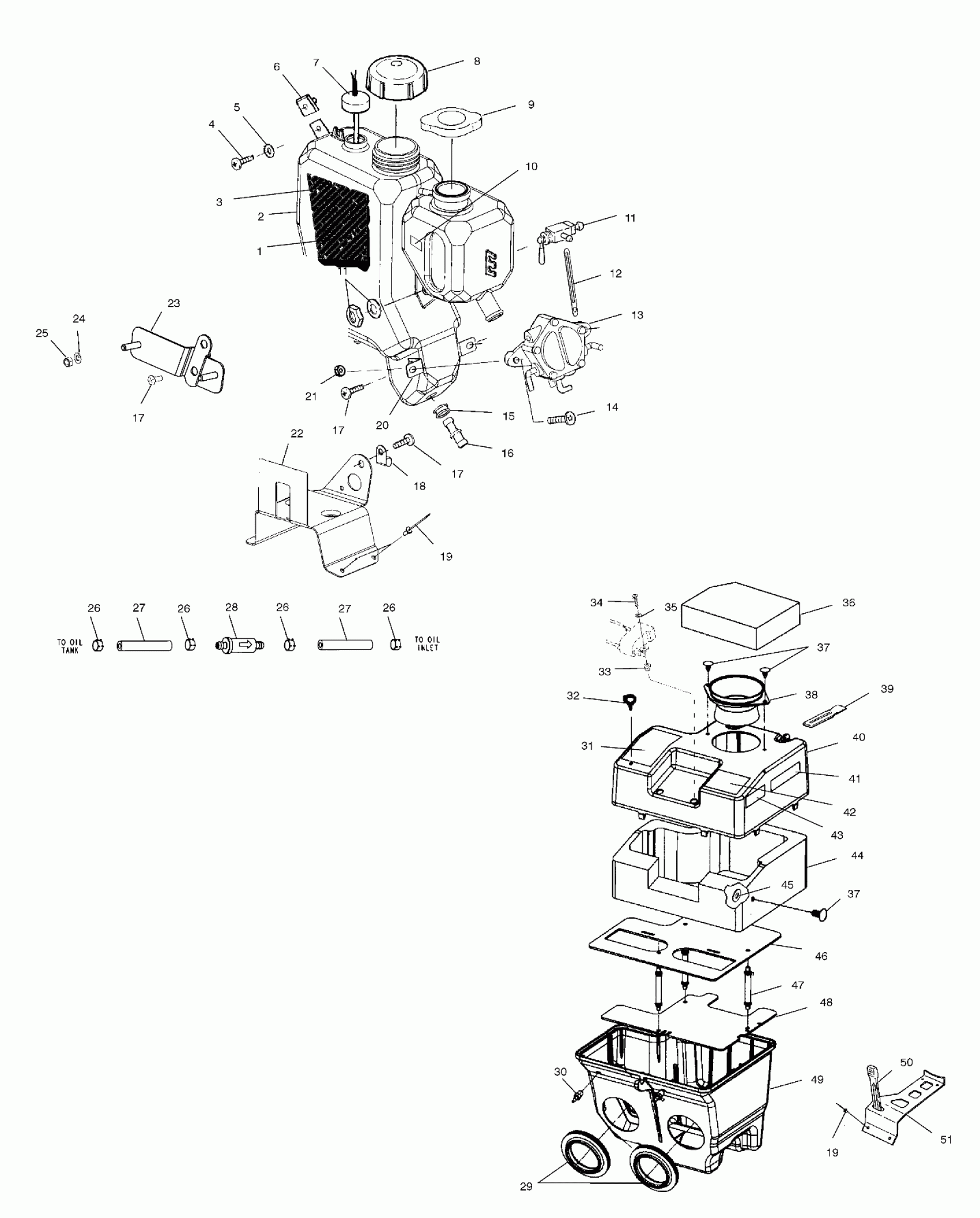

Polaris 700 SKS - S02SS7CS OIL TANK/AIR BOX - S02SS7CS/CE (4969396939C04) Diagram

#

Description
Price

1

Decal, Fuel Shut-Off

7077442

Unavailable

2

Tank w/Foil, Oil

1253353

Unavailable

3

Foil, Oil Tank

5811934

Unavailable

4

Screw

7512276

$4.79

5

WASHER

7558302

$1.59

6

NUT, CHIMNEY

7670096

$1.59

7

Sensor, Oil Level

4110134

$72.84

8

Cap, Oil, Vented

1240094

$36.41

9

Cap, Pressure, 13 lb.

2511270

$24.27

10

Decal, Surge Tank, "Full Cold"

7078147

Unavailable

11

Valve, Fuel Shut-Off (See Engine Mounting Pg. C6, Ref. 28)

-------

Unavailable

12

Retainer

7080654

$18.32

13

Pump, Fuel (See Engine Mounting Pg. C6, Ref. 22)

-------

Unavailable

14

Screw

7517455

$8.99

15

Grommet

7052028

$6.39

16

Fitting, Straight

7052207

$8.79

17

Screw

7517615

$3.19

17

Screw

7517615

$3.19

17

Screw

7517615

$3.19

18

J-Clip

7080884

$3.99

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

20

Bracket, Fuel Pump Mount

5242680

$9.91

21

Nut, Nylok

7542122

$1.49

22

Bracket, Oil Tank

5244339

$16.47

23

Bracket, CDI Mount

1012947

$23.99

24

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

25

Nut, Nylok

7541925

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

Line, Fuel

8450003-1525

Unavailable

27

Line, Fuel

8450003-1525

Unavailable

28

FILTER

2530009

$5.65

29

Boot, Carb

5411676

Unavailable

30

Fitting

7052127

$3.19

31

Decal, Cooling System

7075359

Unavailable

32

Clip

7670102

$2.39

33

Nut, Well

7541923

$5.59

34

Screw

7512279

$1.49

35

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

36

Duct, Air

2632132

$52.60

37

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

37

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

38

Duct, Air Inlet

5433436

Unavailable

39

Retainer, Tab

5411075

Unavailable

40

Top, Silencer

5433807

$23.99

41

Decal, Adjustable Driven Clutch

7073820

Unavailable

42

Decal, Caution, Air Box

7075351

Unavailable

43

Decal, Greasing

7073426

$7.27

44

Foam, Airbox

5811820

Unavailable

45

Washer, Nylon

7555798

$1.49

46

Plate, Silencer, Intake

5811824

Unavailable

47

Connector

5433437

Unavailable

48

Plate, Silencer, Intake, Lower

5811825

$10.71

49

Silencer, Intake, Drilled

5433336

$70.39

50

Strap, Tie Down

5411129

$8.89

51

Bracket, Silencer Mount

5241691

Unavailable
