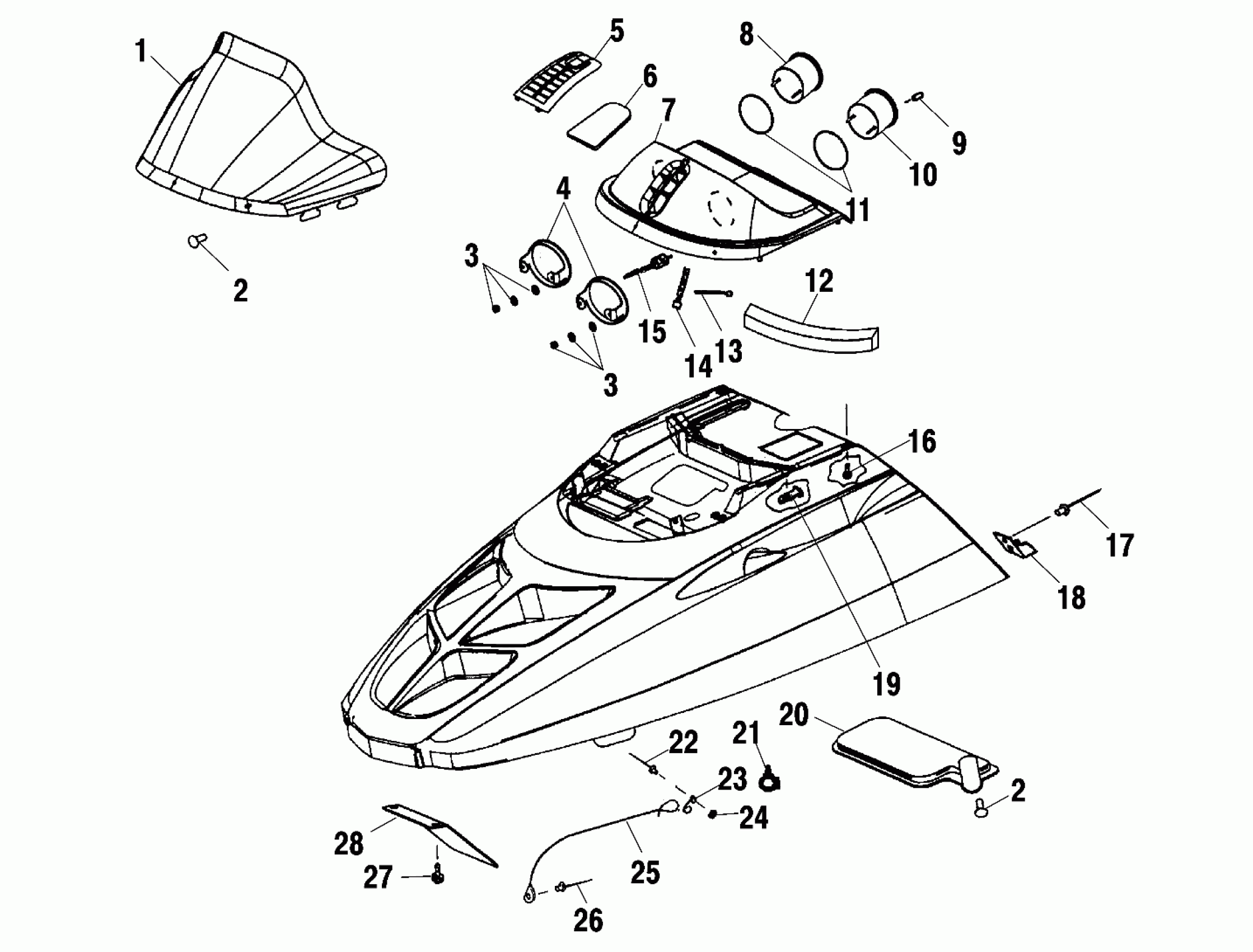

Polaris 700 SKS - S02SS7CS HOOD - S02SS7CS/CE (4969396939A10) Diagram

#

Description
Price

1

Windshield, Flared, Smoke

5433165

Unavailable

2

RIVET

7621509

$1.49

2

RIVET

7621509

$1.49

3

Washer, Flat

3280157

$2.39

3

Nut

3280158

Unavailable

3

Washer, Split Lock

3280156

$1.49

3

Washer, Flat

3280157

$2.39

3

Nut

3280158

Unavailable

3

Washer, Split Lock

3280156

$1.49

4

Bracket, Speedo/Tach

3280210

$28.32

5

Cover, Intake

5433419

Unavailable

6

Foam, Pre-Filter

5811821

Unavailable

7

Housing, Instrument (Incl. Warning Decals)(US)

2632106

Unavailable

7

Housing, Instrument (Incl. Warning Decals)(Euro)

2632128

$99.19

8

Bulb, Replacement

4030015

$4.03

8

Tachometer w/Fuel Light, 6 Pulse

3280329

Unavailable

9

Knob, Trip, Odometer

3280186

$9.70

10

Bulb, Replacement

4030015

$4.03

10

Speedometer (Euro) (Euro)

3280305

Unavailable

10

Speedometer (US) (US)

3280328

Unavailable

11

Cushion, Rubber

3280209

$3.99

12

Foam, Headlight/Pod Seal

5811822

Unavailable

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

Harness, Headlight

2460732

Unavailable

15

Cable, Speedometer

3280341

$60.70

16

Screw

7517441

$2.39

17

RIVET

7621334

$1.49

18

CUP, HOOD LATCH

5430733

$4.84

19

Retainer

5410970

$1.49

20

Cover, Access, Headlight

5433723

Unavailable

21

Clip, Rosebud

7080886

$4.79

22

RIVET

7661084

$1.49

23

CLIP, PIGTAIL

5242893

$6.65

24

Washer

7555904

$1.49

25

Cable, Hood

7080764

$28.32

26

Rivet

7621402

$1.49

27

SCREW

7512068

$2.39

28

Deflector, Air

5243393

Unavailable
