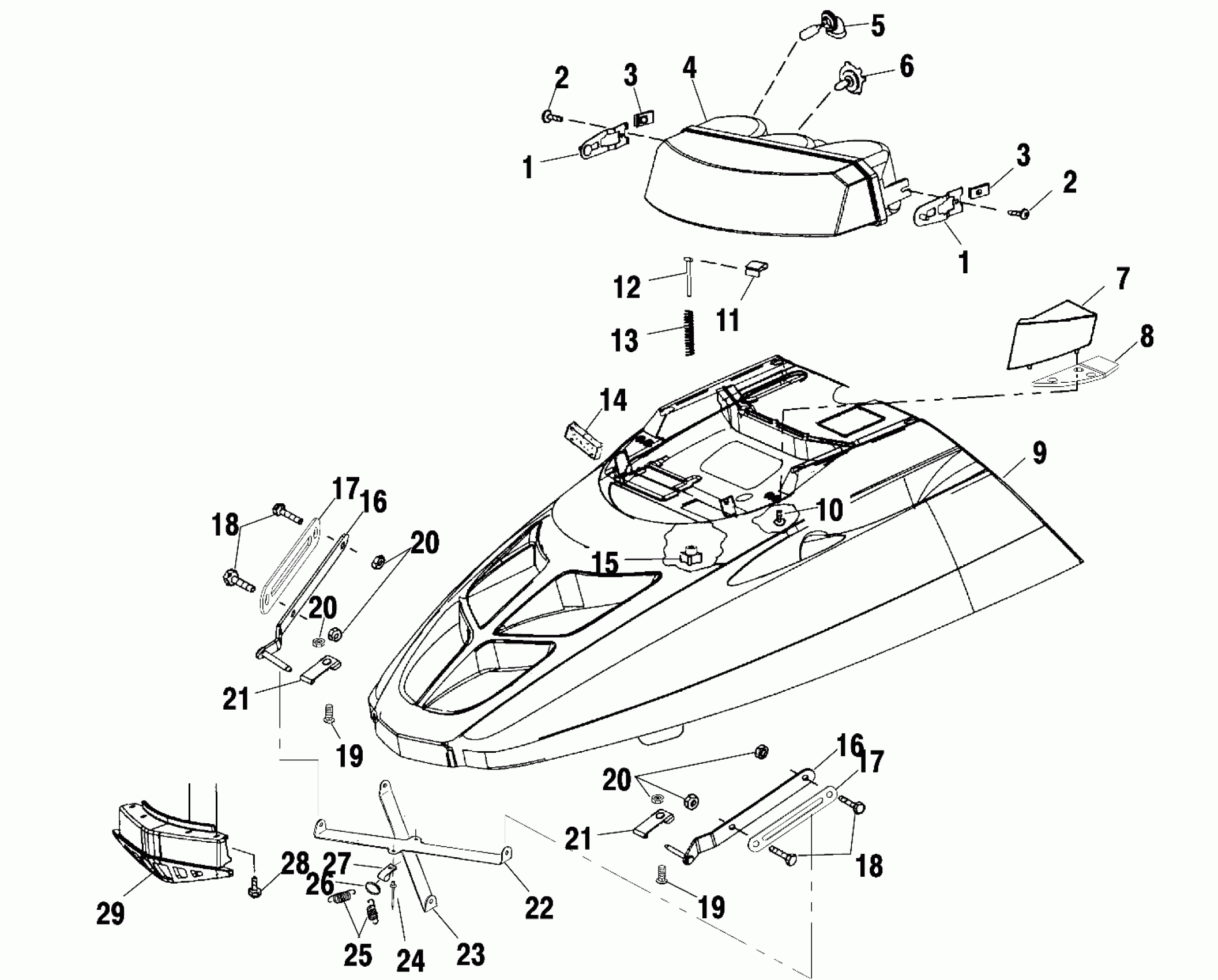

Polaris 700 SKS - S02SS7CS HOOD - S02SS7CS/CE (4969396939A09) Diagram

#

Description
Price

1

MOUNT, HEADLIGHT

1011944-067

$24.27

1

MOUNT, HEADLIGHT

1011944-067

$24.27

2

Screw

7515107

Unavailable

2

Screw

7515107

Unavailable

3

NUT, U-TYPE SPEED

7670057

$1.49

3

NUT, U-TYPE SPEED

7670057

$1.49

4

Asm., Headlamp (Incl. Bulbs)

2433016

$249.99

5

BULB-HEADLIGHT,50 WATT

4010253

$34.99

6

BULB, HALOGEN

2870448

$24.99

7

LENS/REFLECTOR, LH

5431855

Unavailable

7

LENS/REFLECTOR, RH

5431856

Unavailable

8

Seal, Reflector

5811907

Unavailable

9

Asm., Hood, Sonic Blue (Incl. Foam/Foil)

2632172-341

$764.99

10

Screw

7511953

Unavailable

11

FASTENER-U TYPE CLIP

7670040

$3.99

12

BOLT, TEE, ADJUSTER

7517746

$24.99

13

SPRING, HEADLIGHT ADJUST

7041308

$3.19

14

Foam, Headlight Seal

5811886

$7.43

15

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

16

HINGE, UPPER, LH

1012750

$48.56

16

HINGE, UPPER, RH

1012751

$43.99

16

HINGE, UPPER, LH

1012750

$48.56

16

HINGE, UPPER, RH

1012751

$43.99

17

PLATE, BOLT

5242948

$9.70

17

PLATE, BOLT

5242948

$9.70

18

Screw

7515184

Unavailable

18

Screw

7515184

Unavailable

19

BOLT, CARRIAGE

7512193

$2.39

19

BOLT, CARRIAGE

7512193

$2.39

20

Nut, Nylok

7542122

$1.49

20

Nut, Nylok

7542122

$1.49

20

Nut, Nylok

7542122

$1.49

21

PLATE, HINGE, LOWER

5244395

$11.99

21

PLATE, HINGE, LOWER

5244395

$11.99

22

BRACE, HOOD, UPPER

5242945

$40.46

23

BRACE, HOOD, LOWER

5242946

$40.46

24

RIVET-3/16-.090-.290

7661637

$1.49

25

SPRING, EXTENSION

7041732

$7.19

26

RING, SPRING ATTACHMENT

7041760

$7.99

27

CLAMP, RETAINER

7080372

$3.99

28

Screw

7517441

$2.39

29

SCREEN, FRONT

5432931

$36.41
