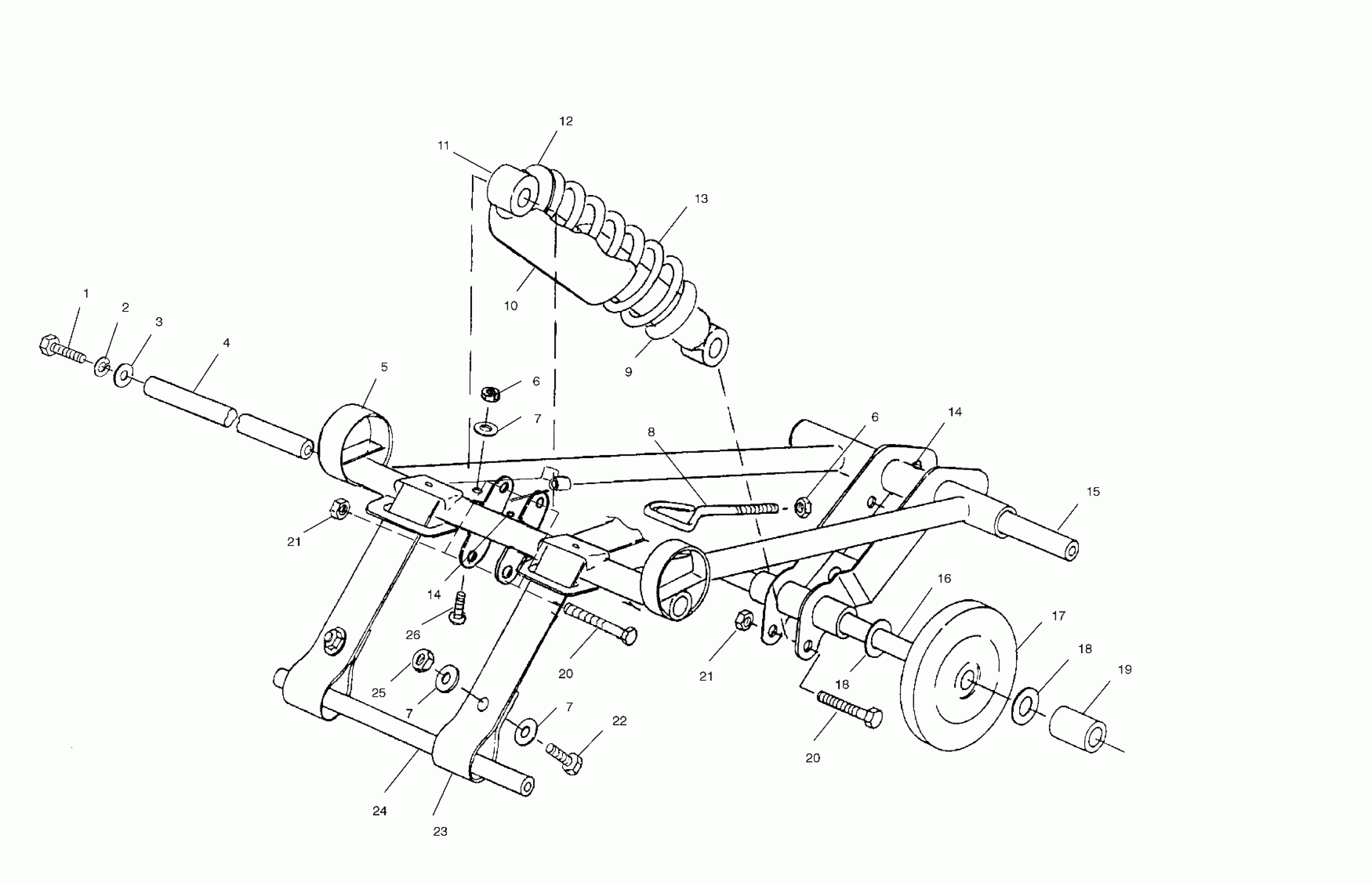

Polaris 700 SKS - S02SS7CS FRONT TORQUE ARM - S02SS7CS/CE (4969396939B13) Diagram

#

Description
Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5020908

$69.99

5

Arm, Torque, Front

1541466-067

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

Washer, Flat

7555959

$4.99

7

Washer, Flat

7555959

$4.99

8

Bolt, Eye

7010050

Unavailable

8

Bolt, Eye

7010050

Unavailable

9

Retainer, Spring

5241276-067

Unavailable

10

Shield, Spring (US) (US)

5430671

$24.27

10

Shield, Spring (Euro) (Euro)

5433503

$24.27

11

Shock, Front Track (US) (US)

7041745

Unavailable

11

Shock, Front Track (Euro) (Euro)

7041810

Unavailable

12

Retainer, Spring, Slotted

5630580

Unavailable

13

Spring, Compression (US) (US)

7041253-067

$95.22

13

Spring, Compression (Euro) (Euro)

7041508-067

$103.74

14

FITTING-LUBRICATION 1/4-28

7080424

$4.79

14

FITTING-LUBRICATION 1/4-28

7080424

$4.79

15

Shaft (See Suspension Pg. B12, Ref. 25)

-------

Unavailable

16

Shaft (See Suspension Pg. B12, Ref. 23)

-------

Unavailable

17

Asm., Wheel w/Insert (See Rail Mounting-Suspension Pg. B11, Ref.21)

-------

Unavailable

18

Bushing

7556301

$3.19

18

Bushing

7556301

$3.19

19

Spacer

5332784

Unavailable

20

Screw

7515433

$1.59

20

Screw

7515433

$1.59

21

Nut, FLEXLOC, Thin

7542411

$3.19

21

Nut, FLEXLOC, Thin

7542411

$3.19

22

SCREW

7517313

$4.79

23

Strap, Limiter, Front

5411045

Unavailable

24

Shaft, Pivot Arm (See Suspension Pg. B12, Ref. 22)

-------

Unavailable

25

NUT, NYLOK, THIN

7542344

$3.99

26

Bolt, Carriage

7512377

$4.79
