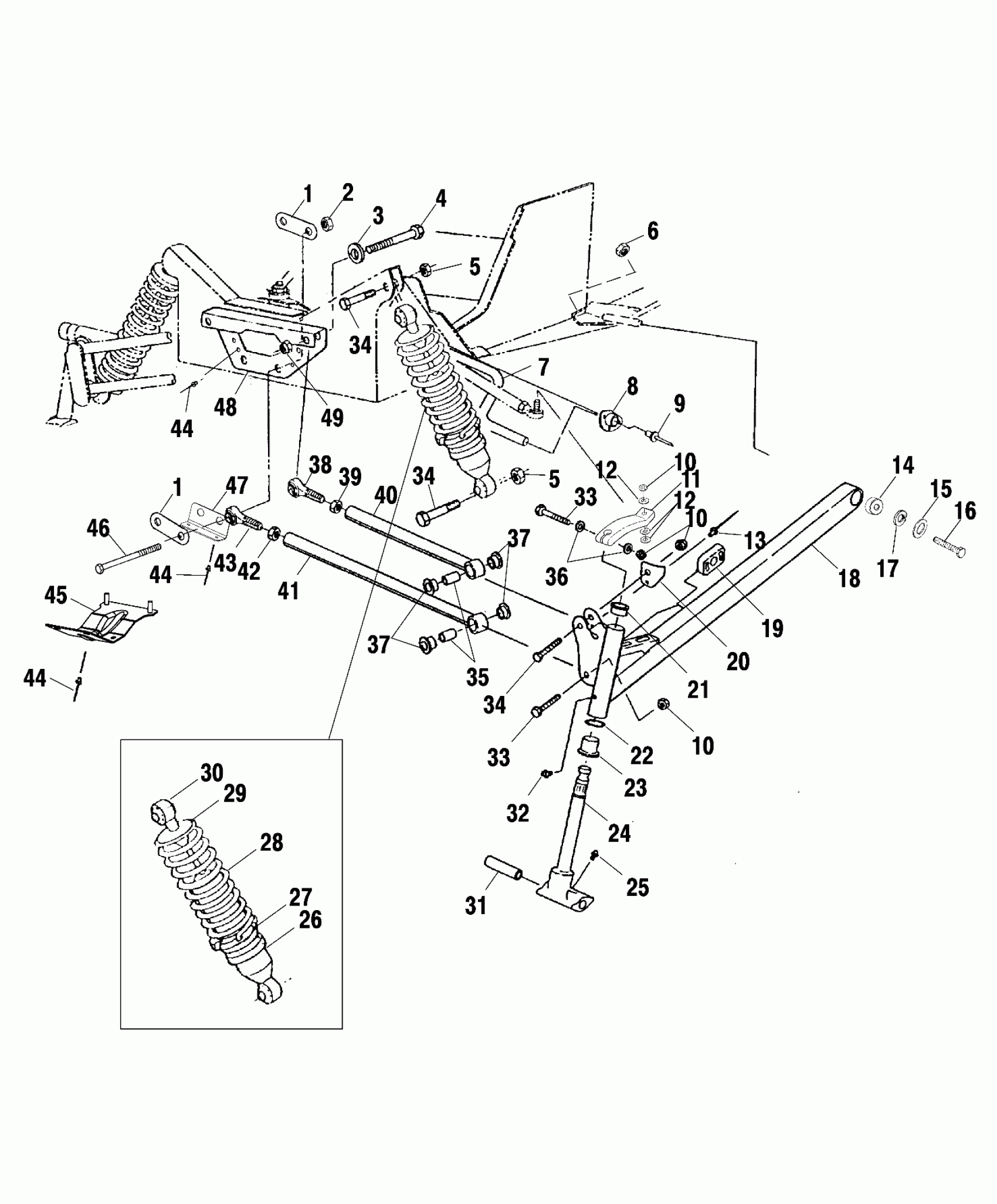

Polaris 700 SKS - S02SS7CS FRONT SUSPENSION - S02SS7CS/CE (4969396939A13) Diagram

#

Description
Price

1

Strap, Spacer, Bottom

5211345

$12.99

1

Strap, Spacer, Bottom

5211345

$12.99

2

Nut, FLEXLOC

7542703

Unavailable

3

WASHER, THRUST

7558702

$1.59

4

Screw

7512551

Unavailable

5

Nut, Nylok

7542439

$1.49

5

Nut, Nylok

7542439

$1.49

6

Nut, Nylok

7547140

$10.32

7

Bar, Torsion

5243008-067

Unavailable

8

Bushing, Sway Bar

5432038

$19.99

9

Rivet

7621477

$1.19

10

Nut, FLEXLOC

7542403

$3.99

10

Nut, FLEXLOC

7542403

$3.99

10

Nut, FLEXLOC

7542403

$3.99

11

Arm, Steering, LH

5131739

$161.89

11

Arm, Steering, RH

5131740

Unavailable

12

Washer, Flat

7555797

$3.99

12

Washer, Flat

7555797

$3.99

13

Rivet

7661643

Unavailable

14

Bearing, Spherical, Plastic

7061042

$31.99

15

Washer, Wrought

7555801

$3.99

16

Bolt

7512579

Unavailable

17

RING, RETAINER

7710437

$3.19

18

Arm, Trailing, LH (Incl. 15)

1820713-244

Unavailable

18

Arm, Trailing, RH (Incl. 15)

1820714-244

Unavailable

19

Slide, Sway Bar

5432561

$24.27

20

Stop, Steering, LH

5242017-244

$11.59

20

Stop, Steering, RH

5242018-244

$13.19

21

BUSHING, FLANGE

3573909

$2.39

22

Bushing

7556509

$1.59

23

Bushing, Flange

3574208

$3.19

24

Shaft, Spindle

6230099-067

Unavailable

25

Fitting, Lubrication

7080306

$3.19

26

Retainer, Spring, Threaded

1500063

$44.51

27

Ring, Spring Preload

5431734

$52.60

28

Spring, Compression (US)

7041551-067

$74.99

28

Spring, Compression (Euro)

7041576-067

$43.99

29

Retainer, Spring, Slotted

5630580

Unavailable

30

Shock, Gas, IFS, Select (Euro) (Euro)

7041801

Unavailable

30

Shock, Gas, IFS, Select (US) (US)

7041799

Unavailable

31

Bushing

5010158

$19.99

32

Fitting, Lubrication

7080433

$1.49

33

SCREW

7517583

$4.35

33

SCREW

7517583

$4.35

34

Screw

7515415

$1.49

34

Screw

7515415

$1.49

34

Screw

7515415

$1.49

35

BUSHING

5010127

$7.99

36

WSHR-.813X.406X.105-Y

7555832

$2.39

37

BUSHING, PIVOT, RADIUS ROD, OUTER

5431486

$3.19

37

BUSHING, PIVOT, RADIUS ROD, OUTER

5431486

$3.19

38

Rod End

7061010

Unavailable

39

Nut, Jam

7542520

$2.39

40

Rod, Radius, Upper

1822588-244

Unavailable

41

Rod, Radius, Lower

1822559-244

Unavailable

42

Nut, Jam

7542711

$2.39

43

Rod End

7061027

$48.56

44

RIVET-3/16-.090-.290

7661637

$1.49

44

RIVET-3/16-.090-.290

7661637

$1.49

44

RIVET-3/16-.090-.290

7661637

$1.49

45

BRACE, PAN, LOWER

5242575-067

$24.27

46

Bolt

7512684

Unavailable

47

Bracket, Radius Rod, Lower

5242578

$44.99

48

Brace, Bulkhead, Front

1012575-067

$23.99

49

Nut, FLEXLOC

7542503

$10.39
