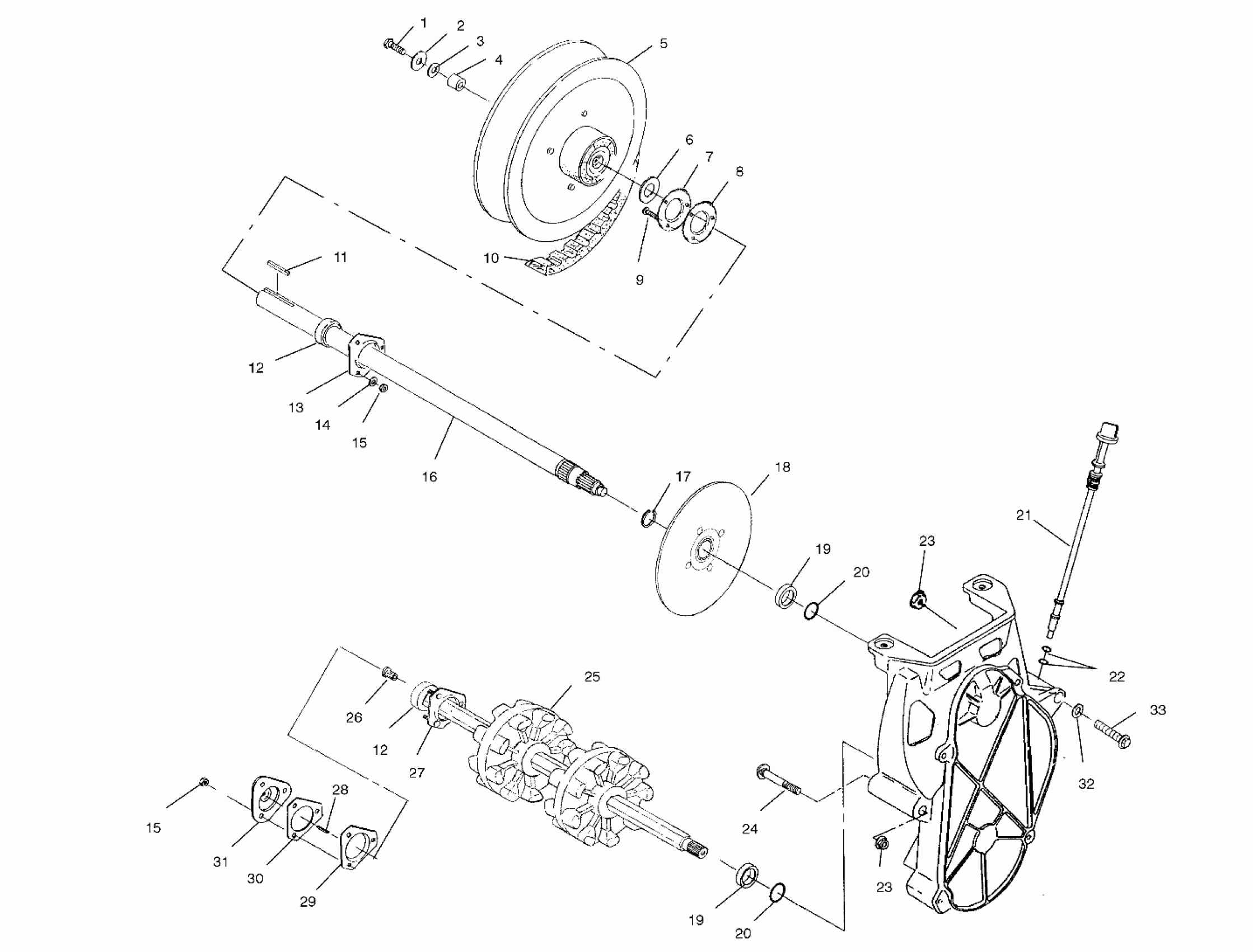

Polaris 700 SKS - S02SS7CS DRIVE TRAIN - S02SS7CS/CE (4969396939B10) Diagram

#

Description
Price

1

Screw

7517820

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5020291

Unavailable

5

Asm., Adjustable Driven Clutch (See Driven Clutch Pg. C2, Ref. 9)

-------

Unavailable

6

Bushing

7556509

Unavailable

6

WASHER

7555864

Unavailable

7

Fitting, Lubrication

7080561

$4.79

7

Flangette w/Fitting

5241359

$32.37

8

Gasket, Jackshaft

5811095

$2.41

9

Bolt, Carriage

7512377

$4.79

10

Belt, Drive

3211065

$114.99

11

Key

7721128

$10.39

12

BEARING

3514525

$31.99

12

BEARING

3514525

$31.99

13

FLANGETTE

5222751

$16.44

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

Asm., Jackshaft (Incl. 12,17)

1332207

Unavailable

17

RING, RETAINING

7710422

$3.99

18

Disc, Brake

1910403

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O-RING

5410613

$1.99

20

O-RING

5410613

$1.99

21

Dipstick (Incl. 22)

1332143

$54.99

22

O-RING

5410675

$1.60

23

Nut, Flange

7542423

$3.99

23

Nut, Flange

7542423

$3.99

24

Bolt, Carriage

7515428

$4.79

25

Asm., Drive Shaft (Incl. 26,27)

1590284

Unavailable

26

Bushing, Speedometer

3280019

$11.99

27

Flangette w/Screws

1012945

$114.99

28

Key, Square, Speedometer

3280017

$13.75

29

Flangette

5243529

$13.75

30

Gasket, Drive Adaptor

5830012

$2.41

31

Adaptor w/Zerk, Drive

3280116

$101.17

32

Washer

7558403

$4.79

33

Screw

7515485

$3.03
