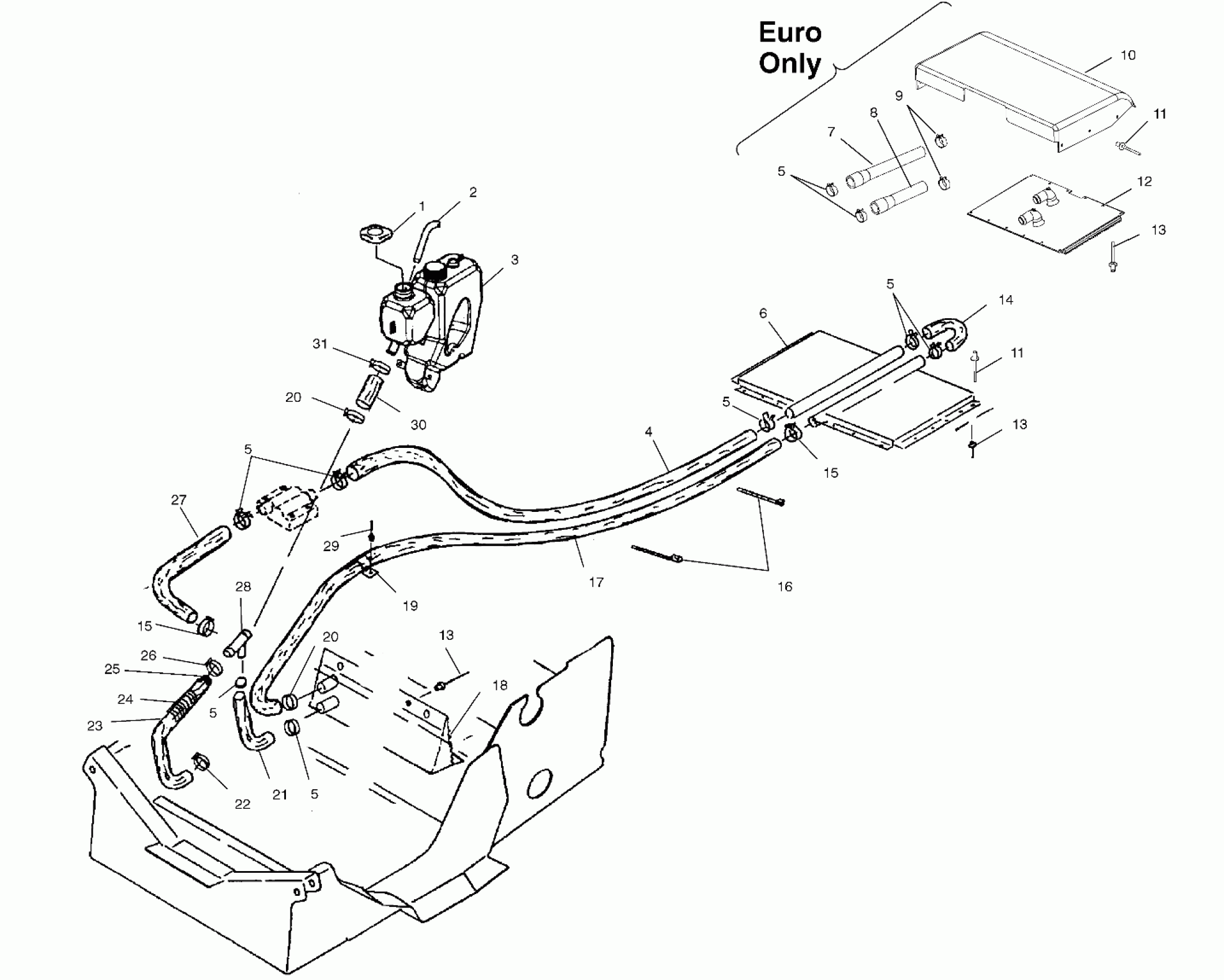

Polaris 700 SKS - S02SS7CS COOLING SYSTEM - S02SS7CS/CE (4969396939B06) Diagram

#

Description
Price

1

Cap, Pressure (See Oil Tank/Air Box Pg. C5, Ref. 9)

-------

Unavailable

2

Line, Fuel

8450003-1525

Unavailable

3

Tank, Oil/Coolant (See Oil Tank/Air Box Pg. C5, Ref.2)

-------

Unavailable

4

Hose, Brake Cooler/Rear

5411217

Unavailable

5

CLAMP, SPRINGBAND

7080844

$10.39

5

CLAMP, SPRINGBAND

7080844

$10.39

5

CLAMP, SPRINGBAND

7080844

$10.39

5

CLAMP, SPRINGBAND

7080844

$10.39

5

CLAMP, SPRINGBAND

7080844

$10.39

5

CLAMP, SPRINGBAND

7080844

$10.39

6

Exchanger, Cooling

2511301

$226.99

7

Hose, RH (Euro)

5411894

$23.19

8

Hose, LH (Euro)

5411893

$21.43

9

Clamp (Euro)

7080842

$7.19

10

Cover (Euro)

5433745

$54.27

11

Rivet

7621432

$1.49

11

Rivet

7621432

$1.49

12

Cooler, Rear (Euro)

1240087

$181.59

13

RIVET-3/16-.090-.290

7661637

$1.49

13

RIVET-3/16-.090-.290

7661637

$1.49

13

RIVET-3/16-.090-.290

7661637

$1.49

14

Hose (US)

5410758

Unavailable

15

Clamp, Springband

7080843

$3.99

15

Clamp, Springband

7080843

$3.99

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

Hose, Close-Off

5411216

$70.39

18

Exchanger, Close-Off

2511304

$399.99

19

Clamp, Hose

7080585

$3.99

20

CLAMP, SPRINGBAND

7080841

$7.19

20

CLAMP, SPRINGBAND

7080841

$7.19

21

Hose, Tee, Front Cooler

5411897

Unavailable

22

Clamp

7080845

Unavailable

23

Hose, Engine In/Tee

5411855

Unavailable

24

Tubing, Convoluted

5521242

Unavailable

25

Spring, Hose Retainer

7042041

Unavailable

26

CLAMP-HOSE, 1.750-SS

7080560

$11.19

27

Hose, Engine Out/Brake Cooler

5411956

Unavailable

28

Connector, Tee

7052282

$24.99

29

Rivet

7621425

$1.49

30

Hose, Tee/Bottle

5411909

Unavailable

31

CLAMP

7080842

$7.19
