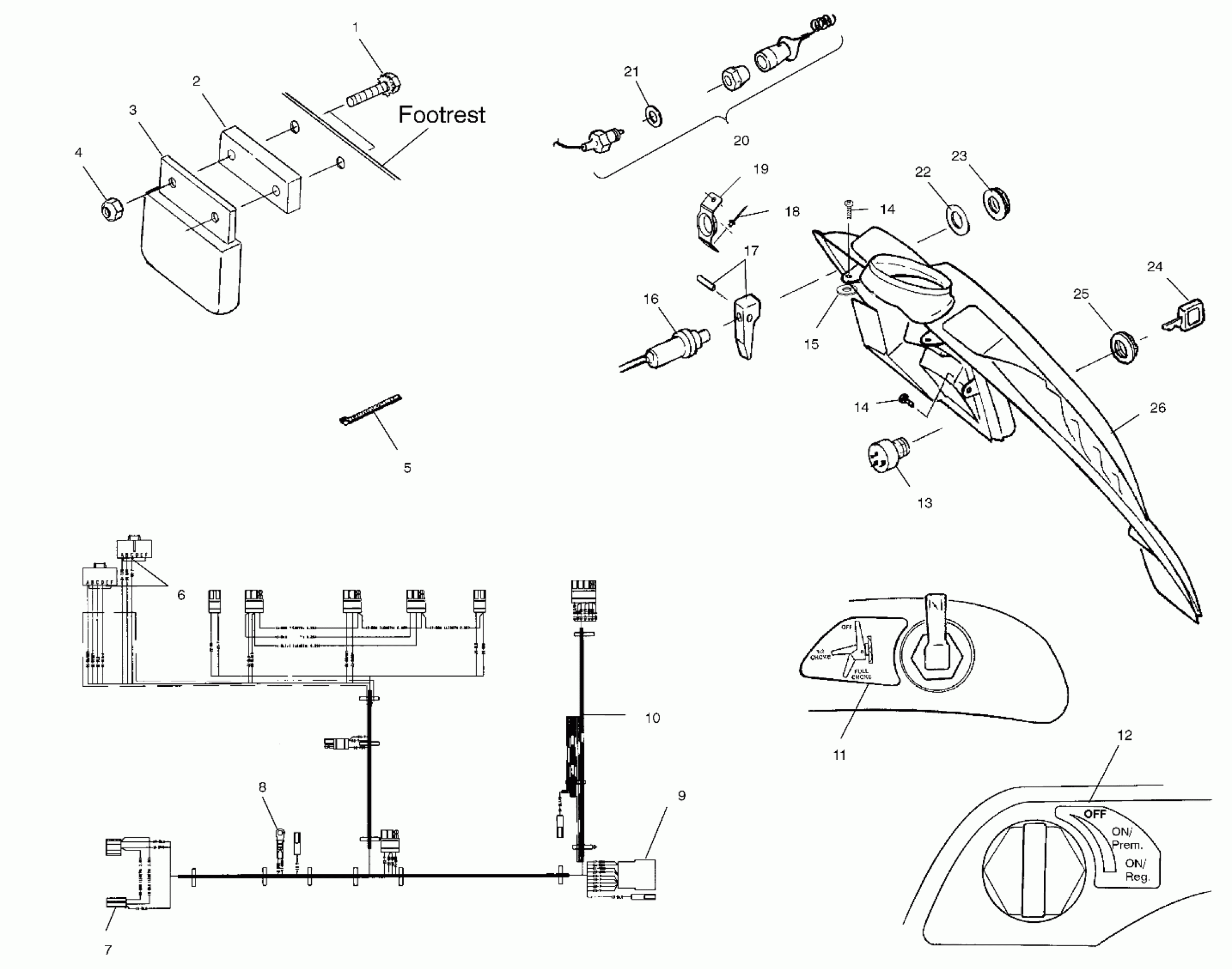

Polaris 700 SKS - S02SS7CS CONSOLE - S02SS7CS/CE (4969396939A12) Diagram

#

Description
Price

1

Screw

7512031

$2.23

2

Spacer

5211573

Unavailable

3

Regulator, LR7

4060123

Unavailable

4

Nut, Nylok

7541925

$1.49

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

Socket

4010192

Unavailable

7

HOUSING

4020063

$3.19

8

Terminal, Ring

4020092

Unavailable

9

Housing

4020057

$3.51

10

Harness, Wire, Main

2460801

$135.30

11

DECAL, CHOKE

7170054

$24.27

12

Decal, Console, Ignition, Off/Prem/Reg

7078039

Unavailable

13

Kit, Ignition Switch

2201614

$89.03

14

Screw

7515199

$1.49

14

Screw

7515199

$1.49

15

Washer, Nylon

7555932

$2.39

16

Cable, Choke (Incl. 17,23)

7080734

Unavailable

17

Kit, Choke Control

2201439

$24.27

18

RIVET

7621330

$1.49

19

GUIDE, RECOIL

5243049

$9.70

20

Asm., Switch, Tether (Incl. 21)(Euro)

4010187

Unavailable

21

Washer (Euro)

7555817

Unavailable

22

Washer, Lock

7571610

$3.99

23

Nut, Choke Slide

5432944

$8.79

24

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

25

Nut, Ignition

7547035

$8.79

26

Console (US)

5432906

Unavailable

26

Console (Euro)

5433214

$70.39
