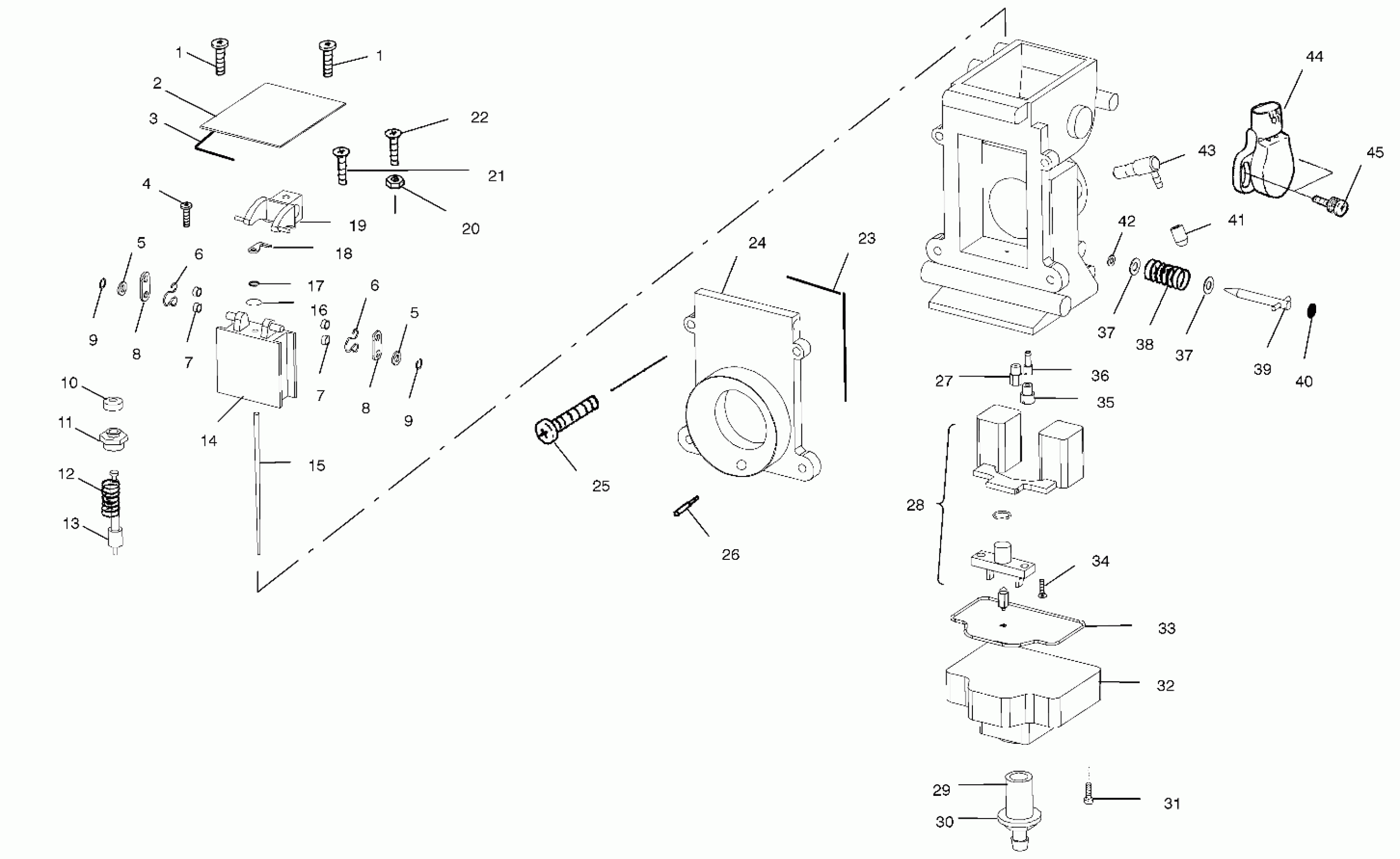

Polaris 700 SKS - S02SS7CS CARBURETOR - S02SS7CS/CE (4969396939C11) Diagram

#

Description
Price

-

Asm., Carburetor, Rack, 40mm

1253425

$569.99

1

Screw

3130951

$3.99

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston (1.5)

3130940

$104.99

15

Needle, Jet (J8-9DFH10-57)

3131313

Unavailable

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Lever, LH

3130855

$64.75

19

Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

O-Ring, Air Funnel

3130870

$24.27

24

Asm.,Funnel

3131230

Unavailable

25

Screw

3130825

$3.19

26

Jet, Pilot Air x (J8-9DFH10-57)

3131258

Unavailable

27

Jet, Main (420)

3130142

$7.27

28

Asm.,Float

3131231

$134.99

29

Nipple

3131248

Unavailable

30

O-Ring

3130863

$2.41

31

Screw

3130824

$3.19

32

Body, Float

3130858

$119.99

33

O-Ring

3130861

$12.13

34

Screw

3130860

$8.79

35

Jet, Pilot (45)

3130068

$8.89

36

Jet, Starter (145)

3130769

$8.89

37

Washer, Starter

3130837

$3.19

37

Washer, Starter

3130837

$3.19

38

SPRING

3130836

$7.27

39

Asm., Adjuster

3130987

$20.22

40

Cap

3130986

$9.70

41

CAP

3130479

$14.56

42

Packing

3130835

$2.41

43

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

44

Asm., Sensor (MAG)

3131009

$259.03

45

Screw (MAG)

3131010

$4.79
