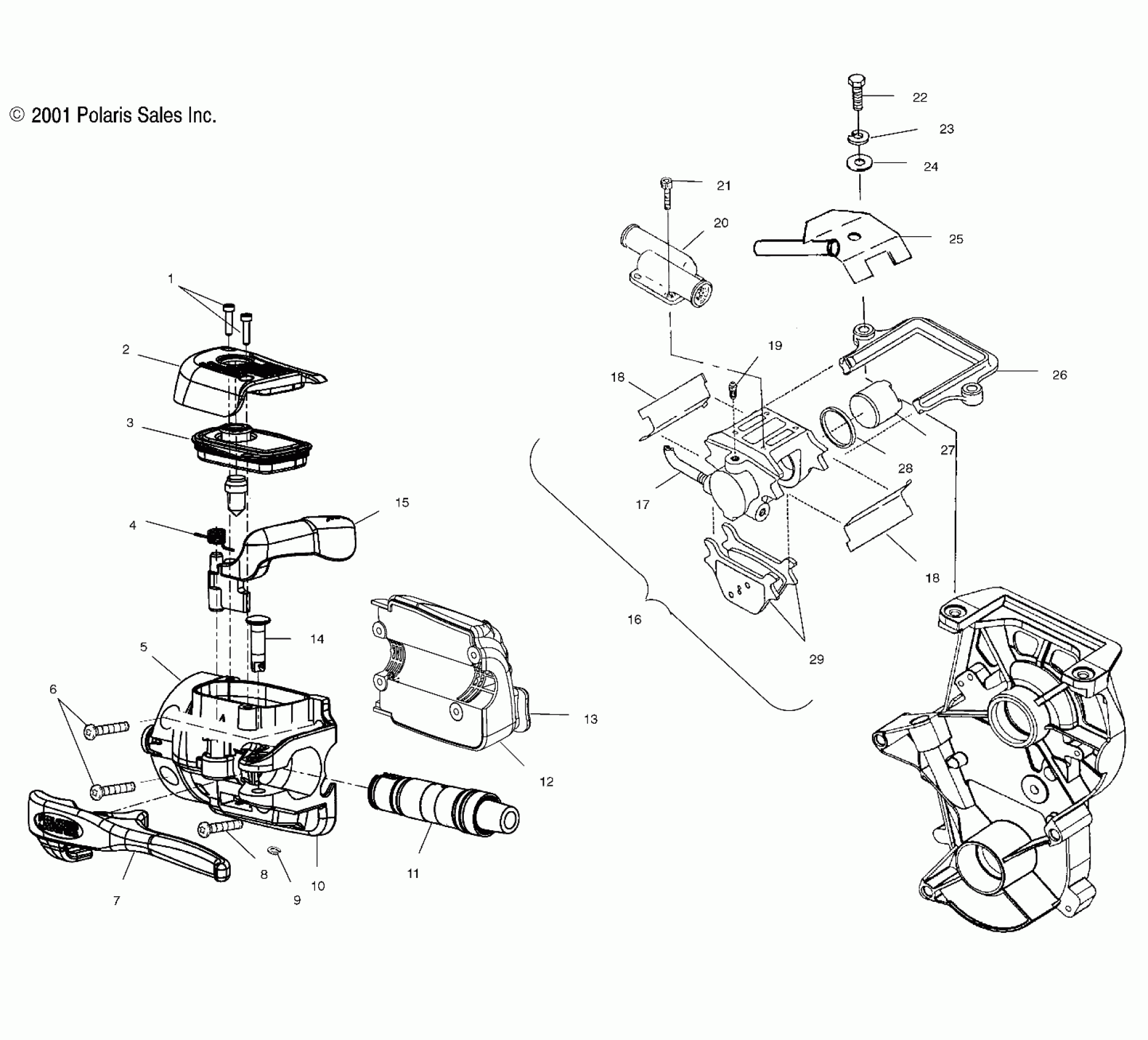

Polaris 700 SKS - S02SS7CS BRAKE - S02SS7CS/CE (4969396939B04) Diagram

#

Description
Price

1

Kit, Cover Screw

2201254

$19.99

2

Kit, Cover Assembly (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

Kit, Park Lever Spring

2201250

$24.27

5

Asm., Master Cylinder (Incl. 2,4,7,10,11,14)

2010209

$304.98

6

Screw

7517441

$2.39

7

Kit, Lever and Pivot Pin

2201943

$52.60

8

Screw

7517566

$3.99

9

Kit, Snap Ring

2201945

$8.79

10

Switch, Brakelight

4010157

Unavailable

10

Kit, Body/Reservoir Clamp

2201948

$304.98

11

Kit, Cartridge Subassembly

2201944

Unavailable

12

Asm., Control, LH

2010167

$93.08

13

Button, Switch, HI/LO, LH Control

5433291

Unavailable

14

Kit, Pivot Pin

2201946

$24.27

15

Kit, Park Lever and Spring (Incl. 4)

2201251

$44.51

16

Asm., Brake Caliper (Incl. 27,28,29)

1910344

Unavailable

17

Line, Brake

1910313

Unavailable

18

Kit, Clip, Spring (Qty. 2)

2200467

Unavailable

18

Kit, Clip, Spring (Qty. 2)

2200467

Unavailable

19

Inlet

1930735

$9.11

20

Kit, Cooler, Water

1930728

$62.39

20

Kit, Gasket, Brake Cooler

2201024

$7.99

21

Screw (Pkg. of 4)

1930729

$29.49

22

Bolt

7515521

$3.99

23

Washer, Spring Lock

7552603

$1.49

24

Washer, Flat

7555806

$1.49

25

Guide, Rope

1012581

Unavailable

26

Bracket, Caliper

1930733

Unavailable

27

Piston and Seal (Incl. 28)

1930734

Unavailable

28

Kit, Seal, Piston, Caliper

2200466

$32.37

29

Kit, Heavy Duty Brake Pad, Type 81, Large (Incl. 18)

2201430

Unavailable

29

Kit, Heavy Duty Brake Pad, Type 81, Small (Incl. 18)

2201429

Unavailable
