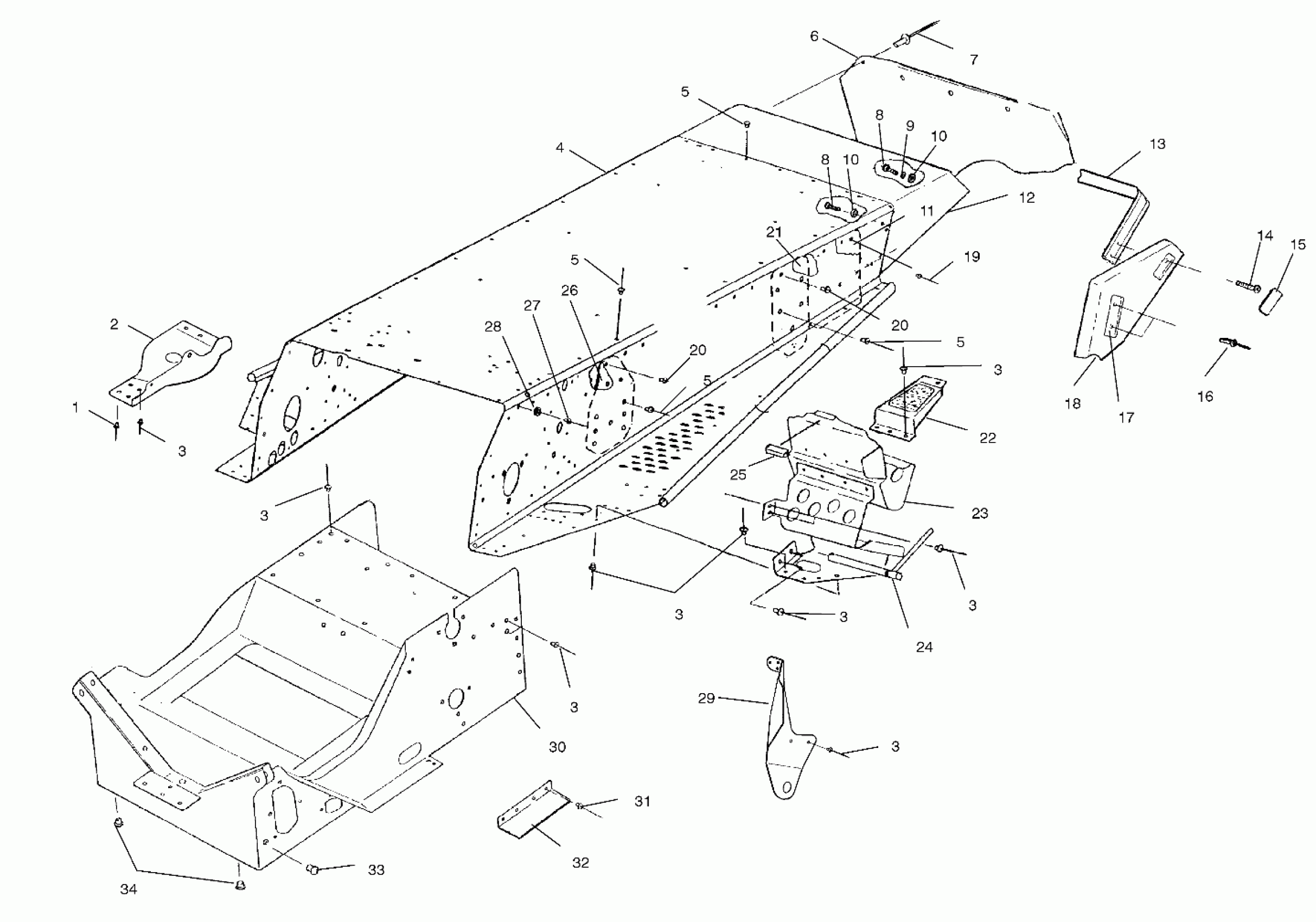

Polaris 700 SKS - S00SS7AS TUNNEL - S00SS7AS (4954095409a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

TUNNEL,XTRA 10,136,BLK Substituted by 1013595-067 (US)(Incl. 12,21,26)

1012938-067

Unavailable

4

TUNNELXTRA 10,136,EUROBLK (Euro)(Incl.12,21,26)

1012968-067

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

6

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

7

POP RIVET(50)

7621418

$1.49

8

BOLT(10)

7512240

$3.99

8

BOLT(10)

7512240

$3.99

9

LOCK WASHER(10)

7552801

$1.59

10

WASHER(10)

7558301

$1.49

10

WASHER(10)

7558301

$1.49

11

BRACE,LH,TUNNEL,RMK,BLK. (Euro)

5242568-067

Unavailable

11

BRACE,RH,TUNNEL,RMK,BLK. (Euro)

5242569-067

Unavailable

12

PANEL,TUNNEL BACK

1012580-067

Unavailable

13

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

14

SCREW(10)

7512084

$1.49

15

REFLECTOR ASM,RED

2670133

$5.75

16

RIVET,(50)

7621515

$3.99

17

SUPPORT,HAND-HOLD

5131546

$18.23

18

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

18

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

19

RIVET,3/16X.402(50)

7621432

$1.49

20

RIVET,SEMI-TUBE,(50)

7661841

$1.49

20

RIVET,SEMI-TUBE,(50)

7661841

$1.49

21

BRKT,LH,R.SUSP.

1012578-067

$82.39

21

BRKT,RH,R.SUSP.

1012579-067

$62.39

22

PAD,LH FOOT SAFETY (Euro)

5830007

$7.89

22

PAD,RH FOOT SAFETY (Euro)

5830008

$4.92

22

FOOTREST,LH R,BLK. (Euro)

5220893-067

Unavailable

22

FOOTREST,RH R,BLK. (Euro)

5220894-067

$32.15

23

FOOTREST,LH,BLK

1012898

Unavailable

23

FOOTREST,RH,BLK

1012899

$119.99

24

SUPPORT,LH,TUNNEL,BLK

1012621-067

Unavailable

24

SUPPORT,RH,TUNNEL,BLK

1012622-067

$23.99

25

EXTRUSION,CLUTCHGUARD

5521238

$6.46

26

PAD,FRONT,SUSPENSION

5244287-067

Unavailable

27

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

28

SNAP-MALE(10)

7080227

Unavailable

29

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

29

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

30

BULKHEAD,CRC,GEN 2 Substituted by 1013358-067

1013102-067

Unavailable

31

RIVET(50)

7621452

$1.49

32

GUARD,ADAPTER GUIDE

5222857

$12.94

33

PLUG, HOLE(10)

7080416

$5.65

34

PLUG-HOLE

7080398

$4.84
