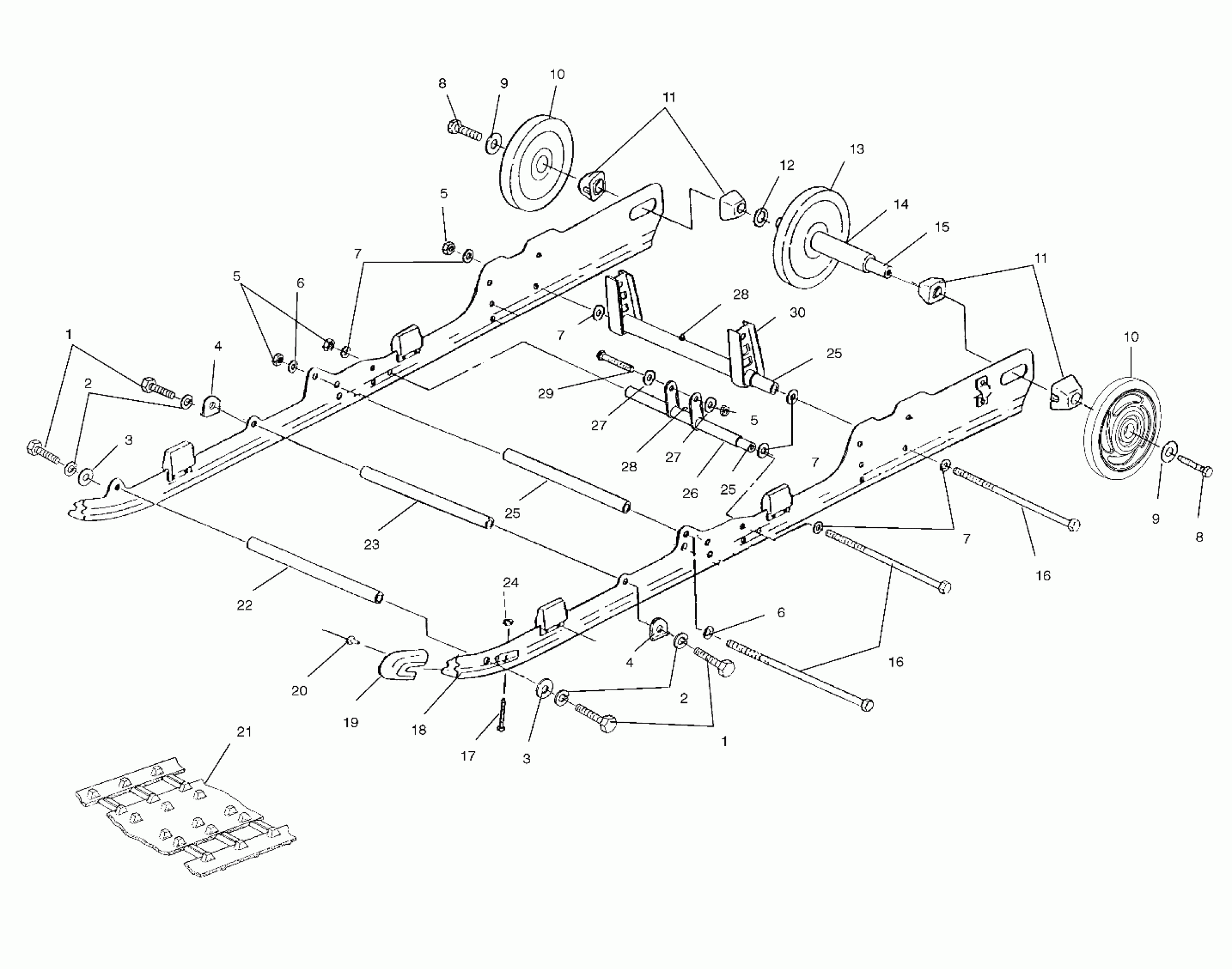

Polaris 700 SKS - S00SS7AS SUSPENSION - S00SS7AS (4954095409b010) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555923

$2.39

3

WASHER(10)

7555923

$2.39

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

WASHER(10)

7555806

$1.49

6

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

8

BOLT(10)

7515526

$1.19

8

BOLT(10)

7515526

$1.19

9

WASHER(10) Substituted by 7556130

7571629

Unavailable

9

WASHER(10) Substituted by 7556130

7571629

Unavailable

10

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

10

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

12

BUSHING(10)

7555918

$1.59

13

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

14

SPACER-IDLER, LONG

5333285

$11.99

15

SHAFT,IDLER

5020744

$59.99

16

Screw

7517353

Unavailable

16

Screw

7517353

Unavailable

17

Screw (See Footnote) (See Rail Mounting-Suspension Pg. C1, Ref. 23)

-------

Unavailable

18

SLIDER,WHI.,(2)

5521452

$40.46

19

Cover, Rail Tip (See Footnote) (See Rail Mounting-Suspension Pg. C1, Ref. 24)

-------

Unavailable

20

Rivet, Pop (See Footnote) (See Rail Mounting. Pg. C1, Ref. 25)

-------

Unavailable

21

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

21

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

21

TRACK,136"X1.25,CAMO Substituted by 5411955

5411520

Unavailable

22

SHAFT,PIVOT ARM

5020723

$29.99

23

SHAFT,PIVOT ARM

5020724

$29.99

24

Nut (See Footnote) (See Rail Mounting-Suspension Pg. C1, Ref. 26)

-------

Unavailable

25

SHAFT

5333404

$24.27

25

SHAFT

5333404

$24.27

25

SHAFT

5333404

$24.27

26

ARM,SHOCK PIVOT

1541001-067

$43.65

27

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

27

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

28

ZERK,FITTING,THREADED(10)

7080433

$1.49

28

ZERK,FITTING,THREADED(10)

7080433

$1.49

29

BOLT(10)

7515472

$2.39

30

ARM,REAR PIVOT

1541241-067

$40.79
