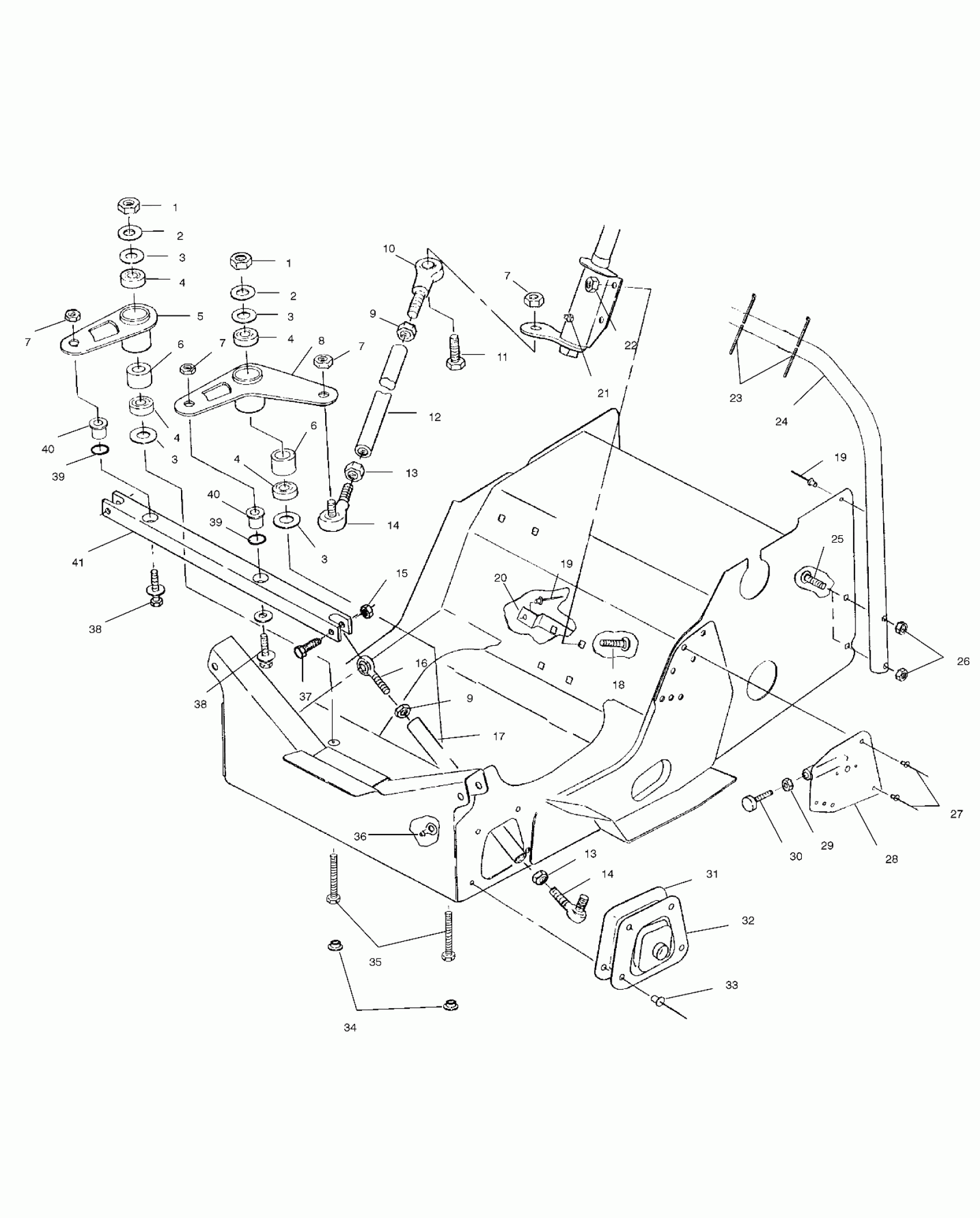

Polaris 700 SKS - S00SS7AS STEERING - S00SS7AS (4954095409b005) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

5

ARM ASM,IDLER (Incl. 4,6)

1820577

$74.27

6

Bushing

5010417

$6.63

6

Bushing

5010417

$6.63

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

8

ARM ASM,PITMAN (Incl. 4,6)

1820575

Unavailable

9

NUT

7542424

$1.49

9

NUT

7542424

$1.49

10

ROD END, LH.

7060164

$48.56

11

BOLT(10)

7512404

$3.99

12

ROD,DRAGLINK

5333411

Unavailable

13

NUT HEX(10)

7542401

$2.39

13

NUT HEX(10)

7542401

$2.39

14

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

14

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

15

NUT LOCK(10)

7542411

$3.19

16

ROD END,LH

7060166

$48.56

17

ROD-TIE,BLK

5020970-067

Unavailable

18

BOLT,(10)

7517428

$2.39

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

BRKT,BOLT RETAINER

5241997

$1.44

21

FITTING-LUBRICATION 1/4-28

7080424

$4.79

22

NUT FLEX-LOC(10)

7542303

$6.39

23

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

24

STEERING HOOP,BLK

1013153-067

$39.67

25

BOLT-CARRIAGE(10)

7512275

$3.99

26

NUT, LOCK(10)

7542103

$5.59

27

RIVET(50) Substituted by 7661130

7661643

Unavailable

28

Stop, Torque

1012618

Unavailable

29

NUT(10)

7542404

$1.59

30

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

31

BOOT,TIEROD,MOD

5411249

Unavailable

32

PLATE,BOOT,MOD

5211796-067

$31.35

33

POP RIVET(50)

7621323

$1.49

34

PLUG,HOLE(10)

7080689

$5.75

35

SCREW,(10)

7517402

$3.59

36

CLIP, PLASTIC(10)

4020139

$4.79

37

SCREW(10)

7515434

Unavailable

38

Screw

7517574

Unavailable

38

Screw

7517574

Unavailable

39

O-RING

5411220

$6.46

39

O-RING

5411220

$6.46

40

TUBE,SPACER

5010384

Unavailable

40

TUBE,SPACER

5010384

Unavailable

41

RACK ASM,CRC

1822479

Unavailable
