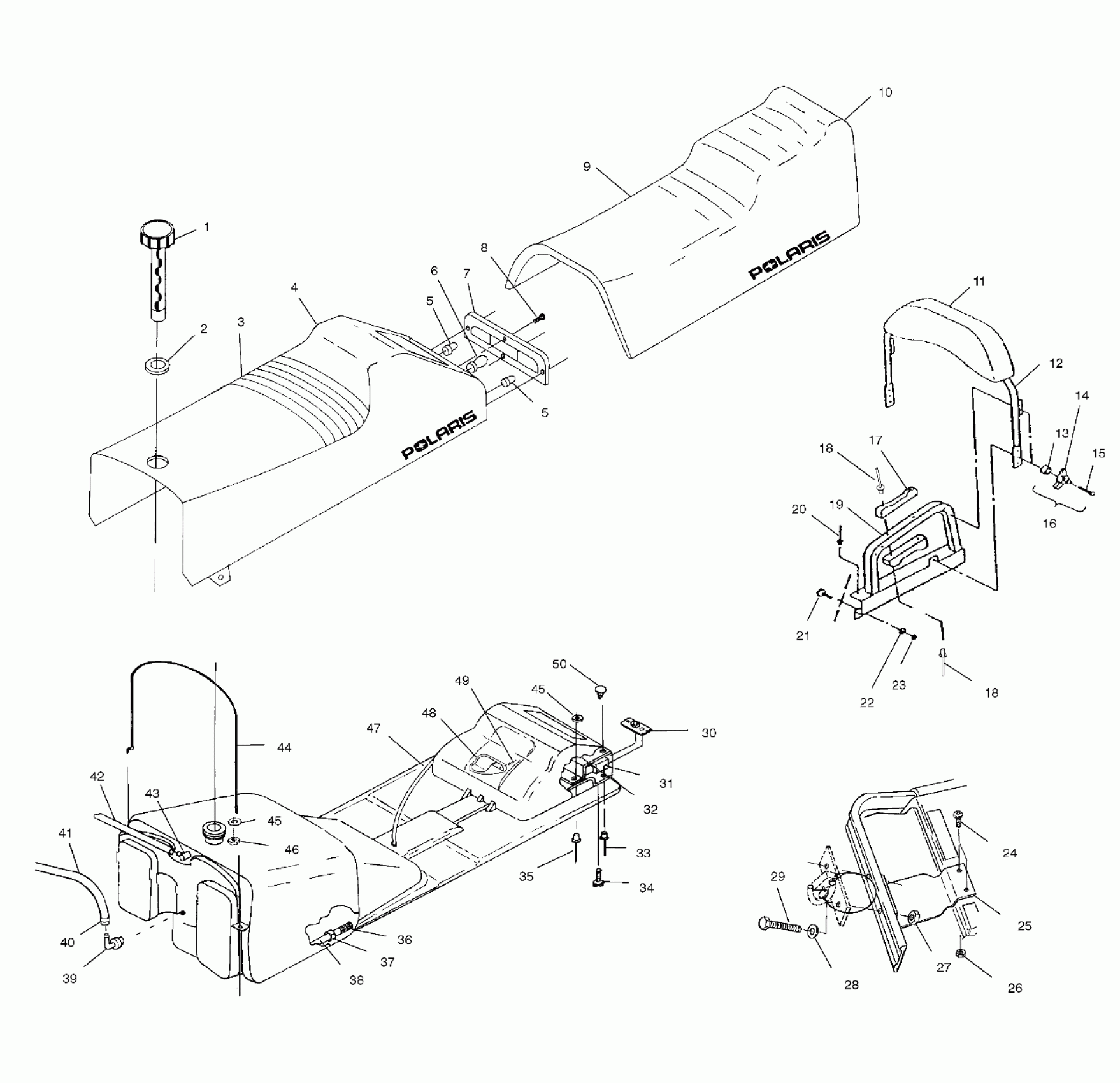

Polaris 700 SKS - S00SS7AS SEAT and GAS TANK - S00SS7AS (4954095409a007) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

ASM-SEAT CUSHION,LONG (Incl. 5-39,42-44)(US)

2682476

Unavailable

4

COVER,SEAT,LONG,ASM. (US)

2682477

Unavailable

5

BULB,TAILLIGHT(10)

4030024

$4.84

5

BULB,TAILLIGHT(10)

4030024

$4.84

6

Bulb, Brakelight

4030045

Unavailable

7

LENS,TAILLIGHT

5430423

Unavailable

8

SCREW(10)

7511840

Unavailable

9

CUSHION,SEAT-ASM (Incl. 5-39,42-44)(Euro)

2682516

Unavailable

10

COVER,SEAT ASM. (Euro)

2682505

Unavailable

11

Cover, Backrest (Euro)

2681265

$257.13

12

BACKREST ASM. (Incl. 11)(Euro)

2681356

$284.75

13

SPACER (Euro)

5431285

Unavailable

14

Knob, Backrest

5630386-067

$20.22

15

BOLT(10) Substituted by 7515352 (Euro)

7515306

Unavailable

16

KNOB ASM,BACKREST (Incl. 13,15)(Euro)

2670130

Unavailable

17

GRIP-HAND W/INSERT (Euro)

5433383

$19.83

18

RIVET-5MMX35MM-AL-B (Euro)

7661059

$1.49

18

RIVET-5MMX35MM-AL-B (Euro)

7661059

$1.49

19

GRAB,BAR,LH,BLK (Euro)

1012869-067

$53.59

19

GRAB,BAR,RH,BLK (Euro)

1012870-067

$53.59

20

RIVET,INTERLOCK,B(50) (Euro)

7661638

$1.49

21

BOLT(10) Substituted by 7512325 (Euro)

7515363

Unavailable

22

WASHER-.344X.688X.063 FL-Y (Euro)

7558402

$1.49

23

NUT-5/16-18 NYLOK-Y (Euro)

7542324

$1.49

24

SCREW (Euro)

7517299

Unavailable

25

PLATE,HITCHBRACE,BLK. (Euro)

5242099-067

$28.95

26

NUT(10) (Euro)

7542151

$3.99

27

NUT-LOCK(10) (Euro)

7542439

$1.49

28

WASHER, WROUGHT(10) Substituted by 7555801 (Euro)

7555928

Unavailable

29

BOLT(10) Substituted by 7515492 (Euro)

7512410

Unavailable

30

NUT,RETAINER-WELD.(10)

7542147

$17.59

31

HOUSING-TAILLIGHT

5433341

Unavailable

32

COVER,T/L PROTECTOR

5431436

$21.43

33

RIVET(50)

7621301

$3.99

34

SCREW,(10)

7517371

Unavailable

35

RIVET(50)

7621464

$3.99

36

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

37

RING, COMPRESSION(10)

7080402

$1.60

38

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

39

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

40

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

41

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

42

FUELLINE,3MMX7MM

8450061-600

Unavailable

43

FITTING,90 DEG,1/8,(10)

7052095

$4.79

44

CABLE,TANK,RETENTION

7080559

Unavailable

45

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

45

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

46

NUT(10)

7541925

$1.49

47

HARNESS,TAILLIGHT

2460398

Unavailable

48

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

49

RIVET(50)

7621472

$1.49

50

CLIP,DART,(10)

7670097

Unavailable
