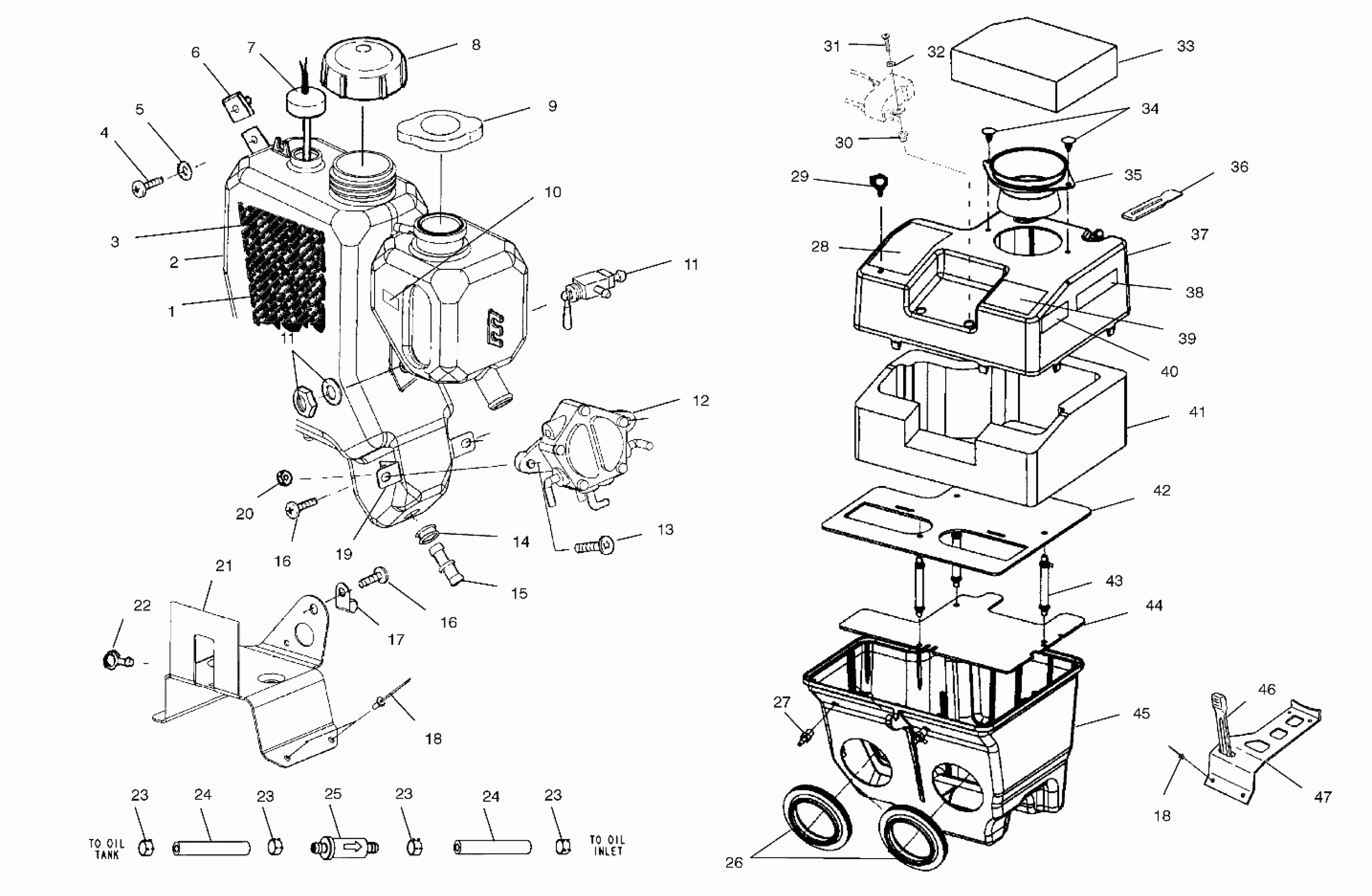

Polaris 700 SKS - S00SS7AS OIL TANK/AIR BOX - S00SS7AS (4954095409c006) Diagram

#

Description
Price

1

DECAL,FUEL SHUT-OFF

7077442

Unavailable

2

TANK,OIL/COOLANT COMBO Substituted by 1253316

5433344

Unavailable

3

FOIL,OIL TANK

5811934

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Nut

7670096

$1.59

7

SENSOR,OIL LEVEL

4110134

$72.84

8

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

9

CAP, PRESSURE,(13 LB)

2511270

$24.27

10

DECAL-SURGE TANK,"FULL COLD"

7078147

Unavailable

11

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C8, Ref. 21)

-------

Unavailable

11

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C8, Ref. 21)

-------

Unavailable

12

Pump, Fuel (See Footnote) (See Engine Mounting Pg. C8, Ref. 19)

-------

Unavailable

13

SCREW,(10)

7517455

$8.99

14

GROMMET-TANK FITTING(10)

7052028

$6.39

15

FTTNG,STRAIGHT,PRESS-IN

7052207

$8.79

16

SCREW(10)

7517615

$3.19

16

SCREW(10)

7517615

$3.19

17

CLAMP-CABLE

7080367

$2.39

18

RIVET,INTERLOCK,B(50)

7661638

$1.49

18

RIVET,INTERLOCK,B(50)

7661638

$1.49

19

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

20

NUT-LOCK(10)

7542122

$1.49

21

BRKT,OIL/COOLANT TANK,ALUM

5243636

Unavailable

22

CLIP, PLASTIC(10)

4020139

$4.79

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

26

BOOT,CARB

5411109

Unavailable

27

FITTING,HOSE(10)

7052127

$3.19

28

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

29

CLIP,SILENCER,(10)

7670102

$2.39

30

NUT-WELL(10)

7541923

$5.59

31

SCREW(10)

7512279

$1.49

32

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

33

DUCT,AIR INLET,ASM.

2632132

$52.60

34

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

35

DUCT,AIR INLET,SRP

5433436

Unavailable

36

RETAINER-TAB,(10)

5411075

Unavailable

37

SILENCER TOP,INTAKE,SRP

5433420

Unavailable

38

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

39

DECAL,CAUTION,AIRBOX

7075351

Unavailable

40

DECAL, GREASING [No Longer Available]

7073426

$7.27

41

FOAM,AIRBOX,TOP,INTAKE,SRP

5811820

Unavailable

42

PLATE-SILENCER,INTAKE,SRP

5811824

Unavailable

43

CONNECTOR-PLATE,SRP

5433437

Unavailable

44

PLATE-SILENCER INTAKE,LWR SRP

5811825

$10.71

45

SILENCER-INTAKE,DRILLED,SRP

5433454

Unavailable

46

STRAP,TIE-DOWN

5411129

$8.89

47

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable
