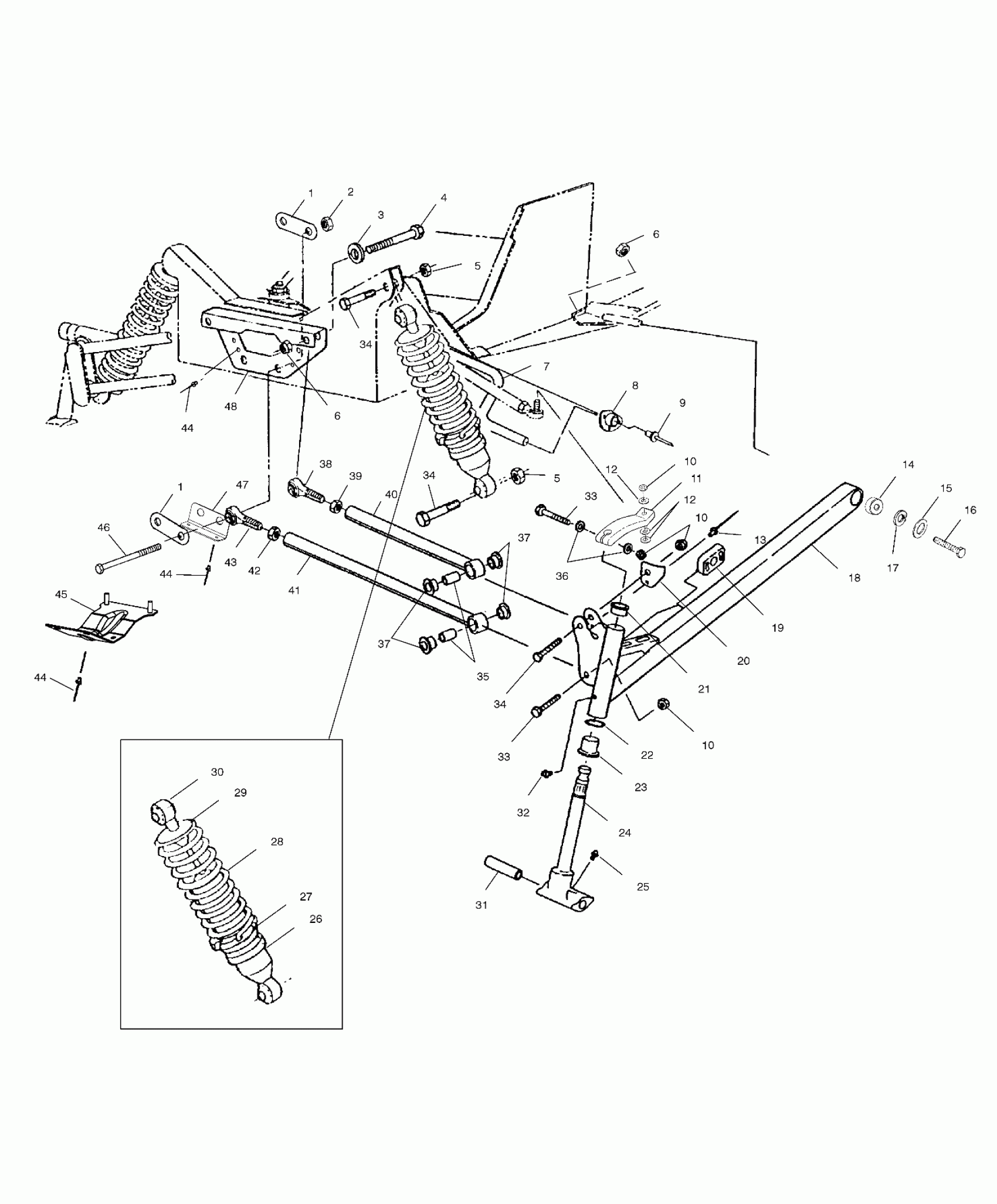

Polaris 700 SKS - S00SS7AS FRONT SUSPENSION - S00SS7AS (4954095409b001) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

NUT, LOCK,(10)

7542503

$10.39

6

NUT, LOCK,(10)

7542503

$10.39

7

BAR-TORSION,5/8,BLK

5243008-067

Unavailable

8

BUSHING,SWAY BAR

5432038

$19.99

9

RIVET,(50)

7621477

$1.19

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

ARM,LH,STRG,ALUM.

5131739

$161.89

11

ARM,RH,STRG,ALUM.

5131740

Unavailable

12

WASHER(10)

7555797

$3.99

12

WASHER(10)

7555797

$3.99

13

RIVET(50) Substituted by 7661130

7661643

Unavailable

14

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

15

WASHER(10)

7555801

$3.99

16

BOLT(10)

7512579

Unavailable

17

RING,RETAINING(10)

7710437

$3.19

18

TRAILING ARM ASM.LH Substituted by 1820713-067 (Incl. 15)

1820713

Unavailable

18

TRAILING ARM ASM.RH Substituted by 1820714-067 (Incl. 15)

1820714

Unavailable

19

SLIDE,SWAYBAR,5/8

5432561

$24.27

20

STOP,STRG,LH.

5242017-067

$13.89

20

STOP,STRG,RH.

5242018-067

$13.10

21

BUSHING-FLANGE

3573909

$2.39

22

WASHER SPECIAL(10)

7556509

$1.59

23

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

24

SPINDLE,SHAFT,HARD.

6230099-067

Unavailable

25

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

26

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

27

RING,SPRING PRELOAD ADJ.

5431734

$52.60

28

SPRING,COMPRESSION

7041551-067

$74.99

29

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

30

SHOCK-GAS,IFS,SELECT

7041799

Unavailable

31

BUSHING,PIVOT,(10)

5010158

$19.99

32

ZERK,FITTING,THREADED(10)

7080433

$1.49

33

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

33

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

34

BOLT(10)

7515415

$1.49

34

BOLT(10)

7515415

$1.49

34

BOLT(10)

7515415

$1.49

35

BUSHING-RADIUS ROD,(10)

5010127

$7.99

36

WSHR-.813X.406X.105-Y

7555832

$2.39

37

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

37

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

38

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

39

NUT JAM(10)

7542520

$2.39

40

RADIUS ROD,UPPER,BLK

1822588-067

Unavailable

41

RADIUS ROD,LOWER,BLK

1822559-067

Unavailable

42

NUT-JAM(10)

7542711

$2.39

43

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

44

RIVET,INTERLOCK,B(50)

7661638

$1.49

44

RIVET,INTERLOCK,B(50)

7661638

$1.49

44

RIVET,INTERLOCK,B(50)

7661638

$1.49

45

BRACE-PAN,LOWER,BLK

5242575-067

$24.27

46

BOLT(10)

7512684

Unavailable

47

BRKT,RAD.ROD,BTM.

5242578

$44.99

48

BRACE,BULKHEAD,FRONT,BLK

1012575-067

$23.99
