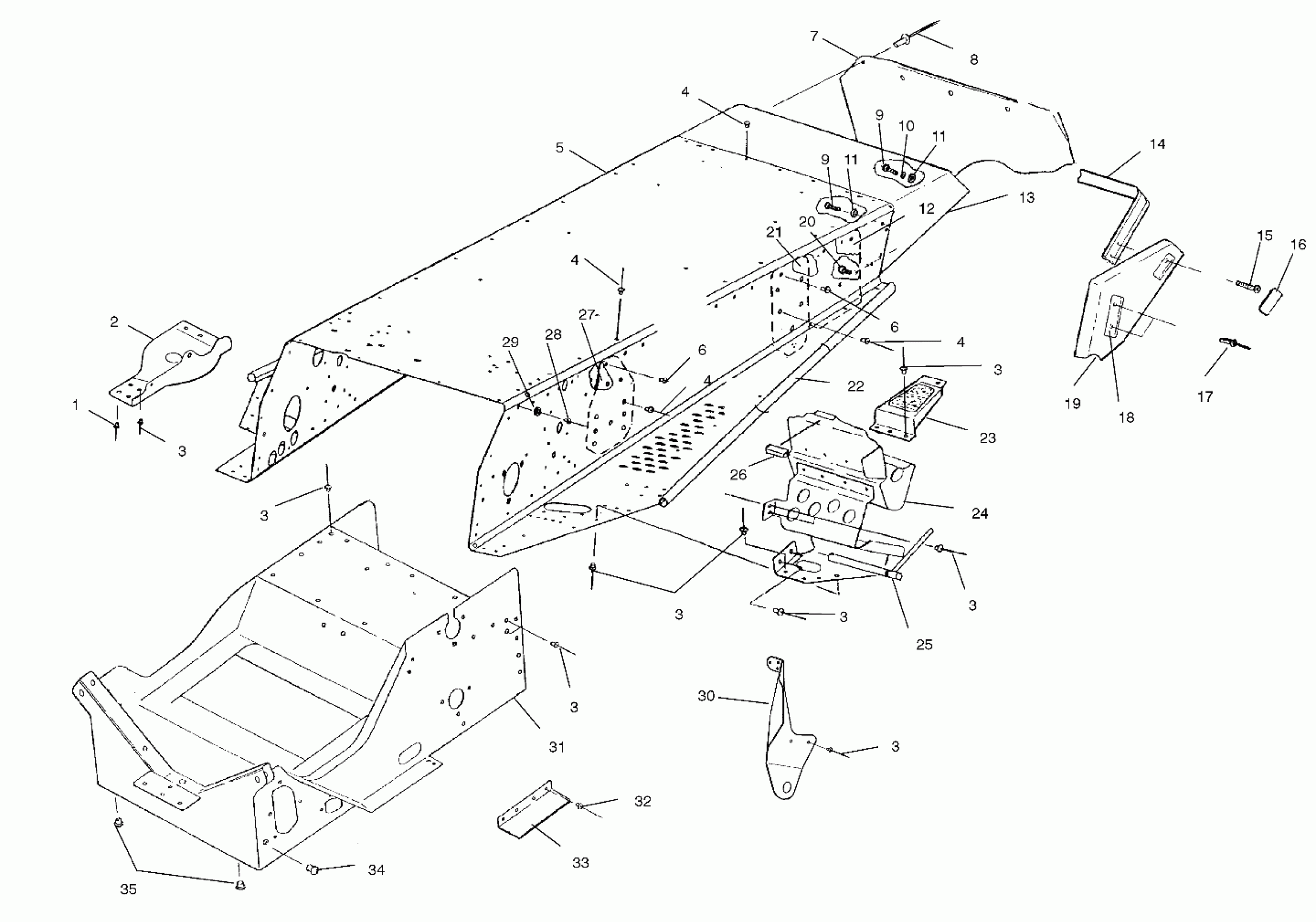

Polaris 700 SKS - 099SS7AS TUNNEL - E99SS7AU (4948514851a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD,C/C.SUMP,TUNNEL Substituted by 5243419

5241915

$20.48

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

4

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

4

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

5

TUNNEL ASM,X10,136 (US) (Incl. 13,21,27)

1012746-067

Unavailable

5

TUNNEL,X10,136EURO,BLK (Euro) (Incl.13,21,27)

1012816-067

Unavailable

6

RIVET,SEMI-TUBE,(50)

7661841

$1.49

6

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

8

POP RIVET(50)

7621418

$1.49

9

BOLT(10)

7512240

$3.99

9

BOLT(10)

7512240

$3.99

10

LOCK WASHER(10)

7552801

$1.59

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

BRACE,LH,TUNNEL,RMK,BLK. (Euro)

5242568-067

Unavailable

12

BRACE,RH,TUNNEL,RMK,BLK. (Euro)

5242569-067

Unavailable

13

PANEL,TUNNEL BACK

1012580-067

Unavailable

14

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

15

SCREW(10)

7512084

$1.49

16

REFLECTOR RED (Euro)

2670070

$9.91

16

REFLECTOR ASM,RED (US)

2670133

$5.75

17

RIVET,(50)

7621515

$3.99

18

SUPPORT,HAND-HOLD

5131546

$18.23

19

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

19

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

20

SCREW(10) (Euro)

7512091

$3.99

21

BRKT,LH,R.SUSP.

1012578-067

$82.39

21

BRKT,RH,R.SUSP.

1012579-067

$62.39

22

TUBE,TUNNEL SPT.

5224787

$20.48

23

PAD,LH FOOT SAFETY (Euro)

5830007

$7.89

23

PAD,RH FOOT SAFETY (Euro)

5830008

$4.92

23

FOOTREST,LH R,BLK. (Euro)

5220893-067

Unavailable

23

FOOTREST,RH R,BLK. (Euro)

5220894-067

$32.15

24

FOOTREST ASM,LH,BLK.

1012681

Unavailable

24

FOOTREST ASM,RH,BLK.

1012682

$95.24

25

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

25

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

26

EXTRUSION,CLUTCHGUARD

5521238

$6.46

27

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

27

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

28

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

29

SNAP-MALE(10)

7080227

Unavailable

30

BRACE,LH,F'REST/TRLG ARM,BLK

5242477-067

Unavailable

30

BRACE,RH,F'REST/TRLG ARM,BLK

5242478-067

Unavailable

31

BULKHEAD,CRC,HYB,BLK. Substituted by 1013102-067

1012665-067

Unavailable

32

RIVET(50)

7621452

$1.49

33

GUARD,ADAPTER GUIDE

5222857

$12.94

34

PLUG, HOLE(10)

7080416

$5.65

35

PLUG-HOLE

7080398

$4.84
