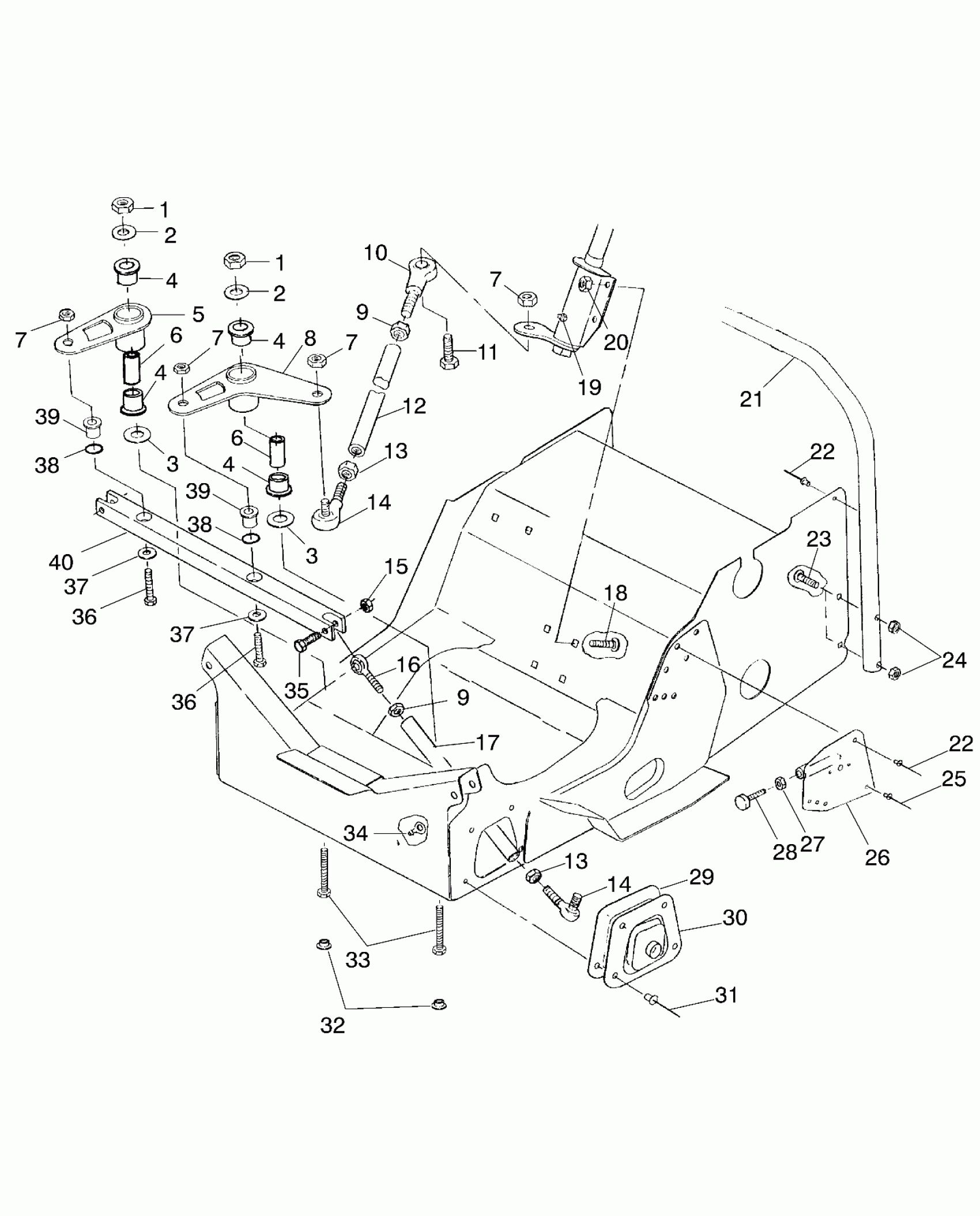

Polaris 700 SKS - 099SS7AS STEERING - E99SS7AU (4948514851b005) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

WASHER(10)

7556053

$2.63

3

WASHER(10)

7556053

$2.63

4

BUSHING

3563907

$3.99

4

BUSHING

3563907

$3.99

4

BUSHING

3563907

$3.99

4

BUSHING

3563907

$3.99

5

ZERK,FITTING,THREADED(10)

7080433

$1.49

5

ARM, IDLER ASM (Incl. 4,6)

1822407

Unavailable

6

Spacer

5010468

Unavailable

6

Spacer

5010468

Unavailable

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ARM,PITMAN ASM. (Incl. 4,6)

1822562

Unavailable

9

NUT

7542424

$1.49

9

NUT

7542424

$1.49

10

ROD END, LH.

7060164

$48.56

11

BOLT(10)

7512404

$3.99

12

ROD,DRAGLINK

5333411

Unavailable

13

NUT HEX(10)

7542401

$2.39

13

NUT HEX(10)

7542401

$2.39

14

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

14

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

15

NUT LOCK(10)

7542411

$3.19

16

ROD END,LH

7060166

$48.56

17

TIEROD,BLK

5020857-067

Unavailable

18

BOLT,(10)

7517428

$2.39

19

FITTING,LUB/VEN(10)

7080561

$4.79

20

NUT FLEX-LOC(10)

7542303

$6.39

21

DESC NOT_AVAILABLE

1012754-067

Unavailable

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

22

RIVET,INTERLOCK,B(50)

7661638

$1.49

23

BOLT-CARRIAGE(10)

7512275

$3.99

24

NUT, LOCK(10)

7542103

$5.59

25

RIVET(50) Substituted by 7661130

7661643

Unavailable

26

Stop, Torque

1012618

Unavailable

27

NUT(10)

7542404

$1.59

27

NUT(10)

7542404

$1.59

28

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

28

STOP,TORQUE

3021081

$36.41

29

BOOT,TIEROD,MOD

5411249

Unavailable

30

PLATE,BOOT,MOD

5211796-067

$31.35

31

POP RIVET(50)

7621323

$1.49

32

PLUG,HOLE(10)

7080689

$5.75

33

SCREW,(10)

7517402

$3.59

34

CLIP, PLASTIC(10)

4020139

$4.79

35

SCREW(10)

7515434

Unavailable

36

BOLT(10)

7515415

$1.49

36

BOLT(10)

7515415

$1.49

37

WASHER(10)

7555893

$1.49

38

O-RING

5411220

$6.46

38

O-RING

5411220

$6.46

39

TUBE,SPACER

5010384

Unavailable

39

TUBE,SPACER

5010384

Unavailable

40

RACK ASM,STEERING

1822408

Unavailable

40

RACK ASM,STEERING

1822408

Unavailable
